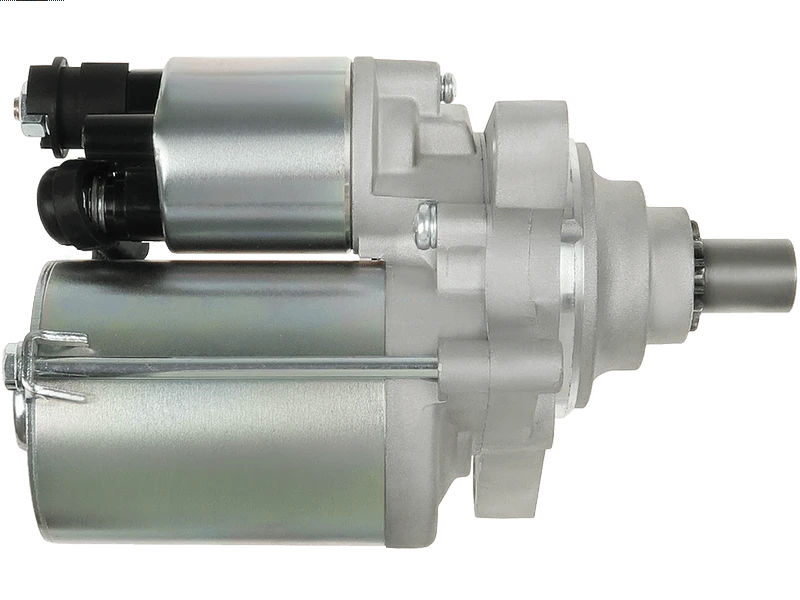

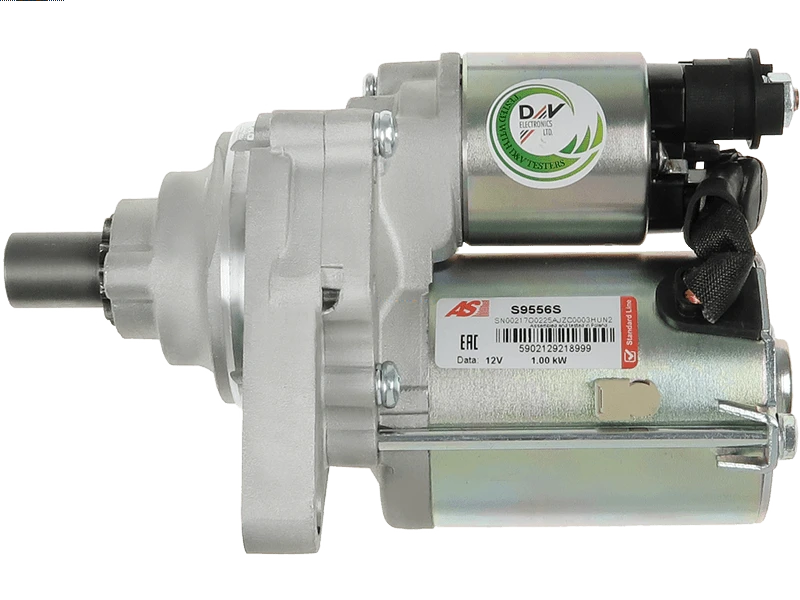

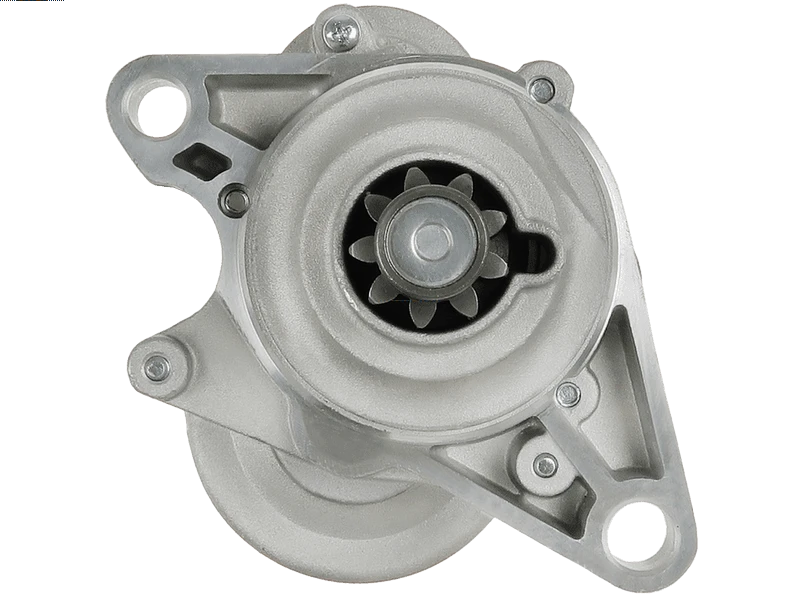

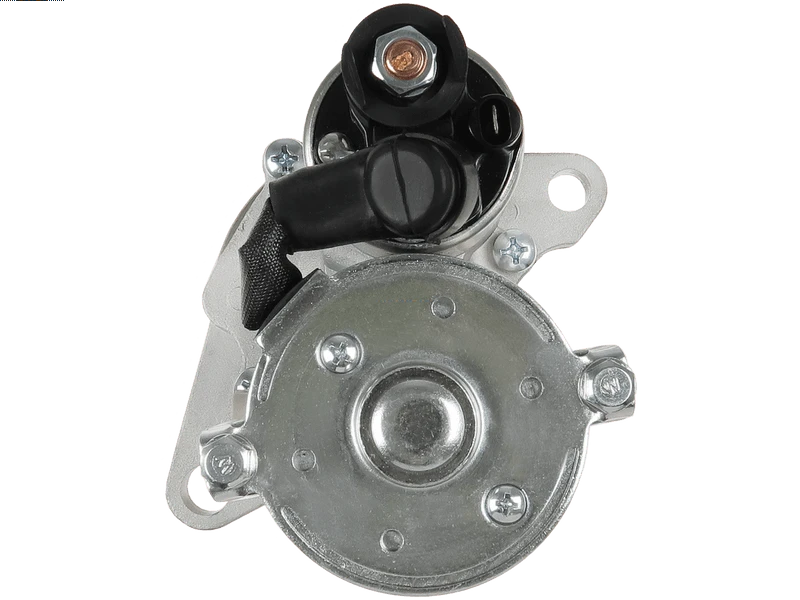

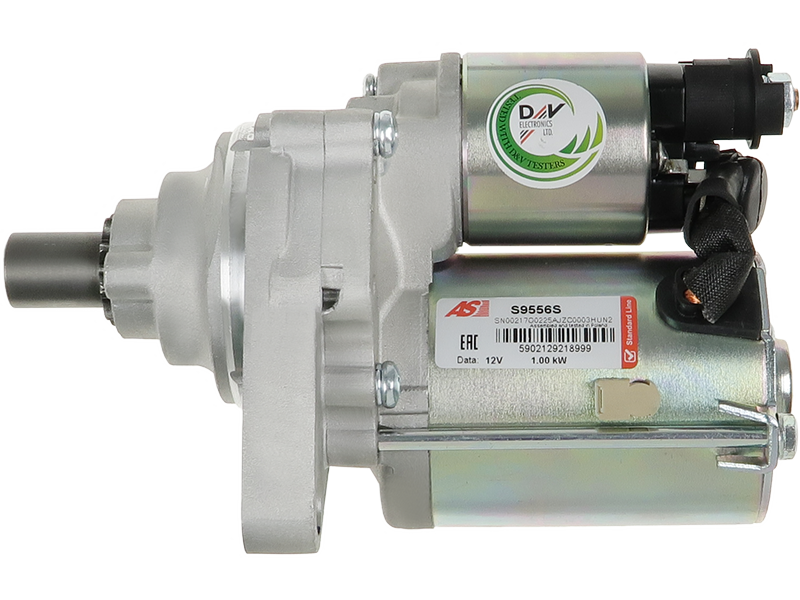

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 385.26 including GST
NZ$ 335.01 excluding GST
or four payments of $96.32
with
Learn More
each
S9556S
No stock in NZ
No stock in NZ
Information
SM442-25Specifications
| Kilowatt | 1 kW |
| Length (L.1) | 202 mm |
| Mount Hole Center - Center (O.1) | 130 mm |
| Mount Hole Diameter (C.1) | 11.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 40 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | HR-V 1.6 16V | [D16W1] | 03.1999- |
| HONDA | HR-V 1.6 16V 4WD | [D16W1] | 03.1999- |
| HONDA | HR-V 1.6 16V 4WD | [D16W5] | 10.1999-09.2005 |
Reference Information
120.543.092.190 SM442-35 SMT103A CST33103RS 6033103.0 25-3427 6033103.2 PRSS500 31200-PEL-004 335536 UD90768S 10033103RV STR75439 H521A47 LRS02256 20467301BN STX201030 33256N 322045092 WOOSTR75439 CST33103AS LRS2256 10438451 201309 F032116517 SM442-25 STU6171 116517 11040887 106591 31200-PEL-014 S12MT0318A2 3110353 10033103AV 20467301RC STRS500 06312-PEL-506 BST2452 ST01461 5033818Video/Publications
