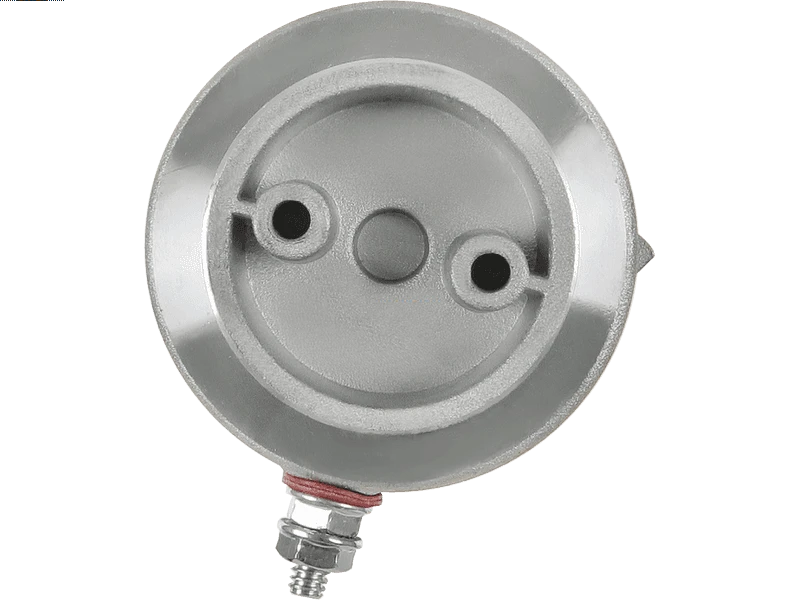

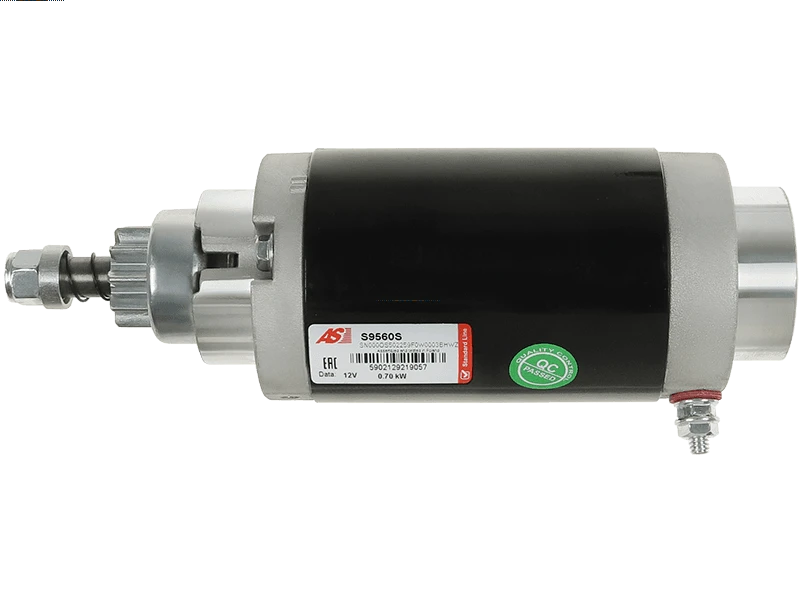

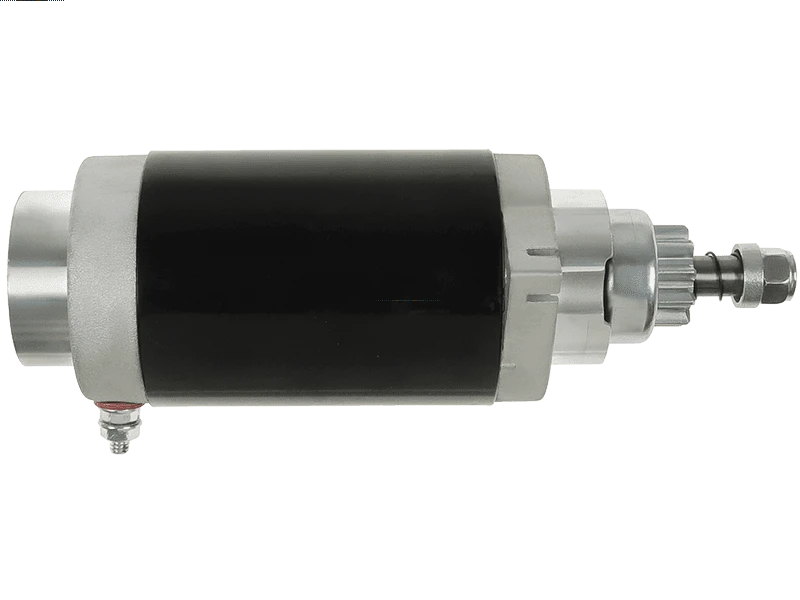

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
JOHNSON ELECTRIC
Price:
NZ$ 205.13 including GST
NZ$ 178.37 excluding GST
or four payments of $51.28
with
Learn More
each
S9560S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 0.7 kW |
| Length (L.1) | 239 mm |
| No./Mount holes | 0 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 46 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | JOHNSON ELECTRIC |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MARINER | 40ELHPTO | [36.1ci-40H.P.] | 01.1989-12.1989 |
| MARINER | 40ELHPTO | [43.9ci-40H.P.] | 01.1997-12.1997 |
| MARINER | 40ELHPTO Magnum | [43.9ci-40H.P.] | 01.1990-12.1996 |
| MARINER | 40ELO | [36.1ci-40H.P.] | 01.1990-12.1990 |
| MARINER | 40ELO | [43.9ci-40H.P.] | 01.1997-12.1997 |
| MARINER | 40ELO Magnum | [43.9ci-40H.P.] | 01.1991-12.1996 |
| MARINER | 40ELPTO | [36.1ci-40H.P.] | 01.1989-12.1989 |
| MARINER | 40ELPTO | [43.9ci-40H.P.] | 01.1997-12.1997 |
| MARINER | 40ELPTO Magnum | [43.9ci-40H.P.] | 01.1990-12.1996 |
| MARINER | 40EO | [36.1ci-40H.P.] | 01.1990-12.1990 |
| MARINER | 40EO | [43.9ci-40H.P.] | 01.1997-12.1997 |
| MARINER | 40EO Jet 30 | [43.9ci-40H.P.] | 01.1995-12.1996 |
| MARINER | 40EO Jet 30 | [43.9ci-40H.P.] | 01.1997-12.1997 |
| MARINER | 40EO Magnum | [43.9ci-40H.P.] | 01.1992-12.1996 |
| MARINER | 45ELHO | [43.9ci-45H.P.] | 01.1986-12.1988 |
| MARINER | 45ELHPTO | [43.9ci-45H.P.] | 01.1988-12.1988 |
| MARINER | 45ELO | [43.9ci-45H.P.] | 01.1986-12.1989 |
| MARINER | 45ELPTO | [43.9ci-45H.P.] | 01.1986-12.1989 |
| MARINER | 50E | [43.9ci-50H.P.] | 01.1980-12.1984 |
| MARINER | 50EL | [43.9ci-50H.P.] | 01.1980-12.1985 |
| MARINER | 50ELH | [43.9ci-50H.P.] | 01.1980-12.1985 |
| MARINER | 50ELHPTO | [51.8ci-50H.P.] | 01.1992-12.1997 |
| MARINER | 50ELO | [49.8ci-50H.P.] | 01.1986-12.1986 |
| MARINER | 50ELO | [49.8ci-50H.P.] | 01.1987-12.1990 |
| MARINER | 50ELO | [51.8ci-50H.P.] | 01.1991-12.1997 |
| MARINER | 50ELPT | [43.9ci-50H.P.] | 01.1980-12.1985 |
| MARINER | 50ELPTO | [49.8ci-50H.P.] | 01.1986-12.1986 |
| MARINER | 50ELPTO | [49.8ci-50H.P.] | 01.1987-12.1990 |
| MARINER | 50ELPTO | [51.8ci-50H.P.] | 01.1991-12.1997 |
| MARINER | 50EO | [51.8ci-50H.P.] | 01.1992-12.1994 |
| MARINER | 60EL | [49.8ci-60H.P.] | 01.1984-12.1985 |
| MARINER | 60ELHPTO | [51.8ci-60H.P.] | 01.1992-12.1997 |
| MARINER | 60ELO | [49.8ci-60H.P.] | 01.1986-12.1986 |
| MARINER | 60ELO | [49.8ci-60H.P.] | 01.1987-12.1990 |
| MARINER | 60ELO | [51.8ci-60H.P.] | 01.1991-12.1997 |
| MARINER | 60ELPT | [49.8ci-60H.P.] | 01.1984-12.1985 |
| MARINER | 60ELPTO | [49.8ci-60H.P.] | 01.1986-12.1986 |
| MARINER | 60ELPTO | [49.8ci-60H.P.] | 01.1987-12.1990 |
| MARINER | 60ELPTO | [51.8ci-60H.P.] | 01.1991-12.1997 |
| MARINER | 60ELPTO Big Foot | [51.8ci-60H.P.] | 01.1995-12.1997 |
| MARINER | 60EO | [51.8ci-60H.P.] | 01.1992-12.1997 |
| MARINER | 60EO Jet 45 | [51.8ci-60H.P.] | 01.1995-12.1997 |
| MERCURY | 40ELHPTO | [43.9ci-40H.P.] | 01.1989-12.1996 |
| MERCURY | 40ELHPTO | [43.9ci-40H.P.] | 01.1997-12.1997 |
| MERCURY | 40ELO | [43.9ci-40H.P.] | 01.1989-12.1996 |
| MERCURY | 40ELO | [43.9ci-40H.P.] | 01.1997-12.1997 |
| MERCURY | 40ELPTO | [43.9ci-40H.P.] | 01.1989-12.1996 |
| MERCURY | 40ELPTO | [43.9ci-40H.P.] | 01.1997-12.1997 |
| MERCURY | 40EO | [43.9ci-40H.P.] | 01.1992-12.1996 |
| MERCURY | 40EO | [43.9ci-40H.P.] | 01.1997-12.1997 |
| MERCURY | 40EO Jet 30 | [43.9ci-40H.P.] | 01.1994-12.1996 |
| MERCURY | 40EO Jet 30 | [43.9ci-40H.P.] | 01.1997-12.1997 |
| MERCURY | 45ELHO | [43.9ci-45H.P.] | 01.1986-12.1988 |
| MERCURY | 45ELHPTO | [43.9ci-45H.P.] | 01.1988-12.1988 |
| MERCURY | 45ELO | [43.9ci-45H.P.] | 01.1986-12.1989 |
| MERCURY | 45ELPTO | [43.9ci-45H.P.] | 01.1986-12.1989 |
| MERCURY | 50E | [43.9ci-50H.P.] | 01.1978-12.1984 |
| MERCURY | 50EH | [43.9ci-50H.P.] | 01.1979-12.1984 |
| MERCURY | 50EL | [43.9ci-50H.P.] | 01.1978-12.1985 |
| MERCURY | 50ELH | [43.9ci-50H.P.] | 01.1979-12.1985 |
| MERCURY | 50ELHPTO | [51.8ci-50H.P.] | 01.1992-12.1997 |
| MERCURY | 50ELO | [49.8ci-50H.P.] | 01.1986-12.1987 |
| MERCURY | 50ELO | [49.8ci-50H.P.] | 01.1988-12.1990 |
| MERCURY | 50ELO | [51.8ci-50H.P.] | 01.1991-12.1997 |
| MERCURY | 50ELPT | [43.9ci-50H.P.] | 01.1980-12.1985 |
| MERCURY | 50ELPTO | [49.8ci-50H.P.] | 01.1986-12.1987 |
| MERCURY | 50ELPTO | [49.8ci-50H.P.] | 01.1988-12.1990 |
| MERCURY | 50ELPTO | [51.8ci-50H.P.] | 01.1991-12.1997 |
| MERCURY | 50EO | [51.8ci-50H.P.] | 01.1992-12.1995 |
| MERCURY | 50HP | [43.9ci-50H.P.] | 01.1976-12.1977 |
| MERCURY | 60E | [49.8ci-60H.P.] | 01.1984-12.1984 |
| MERCURY | 60EL | [49.8ci-60H.P.] | 01.1984-12.1985 |
| MERCURY | 60ELHPTO | [51.8ci-60H.P.] | 01.1992-12.1997 |
| MERCURY | 60ELO | [49.8ci-60H.P.] | 01.1986-12.1987 |
| MERCURY | 60ELO | [49.8ci-60H.P.] | 01.1988-12.1990 |
| MERCURY | 60ELO | [51.8ci-60H.P.] | 01.1991-12.1997 |
| MERCURY | 60ELPT | [49.8ci-60H.P.] | 01.1984-12.1985 |
| MERCURY | 60ELPTO | [49.8ci-60H.P.] | 01.1986-12.1987 |
| MERCURY | 60ELPTO | [49.8ci-60H.P.] | 01.1988-12.1990 |
| MERCURY | 60ELPTO | [51.8ci-60H.P.] | 01.1991-12.1997 |
| MERCURY | 60ELPTO Big Foot | [51.8ci-60H.P.] | 01.1995-12.1997 |
| MERCURY | 60EO | [51.8ci-60H.P.] | 01.1992-12.1997 |
| MERCURY | 60EO Jet 45 | [51.8ci-60H.P.] | 01.1994-12.1997 |
Reference Information
5044369A1 4820240MO30SM 91-09-1030 4820250MO30SM 8EA737272-001 UD13671S 4820240 4820340 94266 4820340MO30SM 5399N WOOSTR88229 SM48203 SM48202 WOOSTR88205 10439041 91-09-1013 2-2911-UT SAB0013 10439043 STR88229 110654 SM10790 SM10970 1097028MO30SM 5073521 5401N F032110654 970.007.101.030 MS663 1097028 STR88205 970.006.101.030 4820340M030SM 5044369 US1026 1097028M030SM 4820240M030SM 5401 71-09-5399 3127583 SM47764 3127582 STZ1026 601026 113150 50735211Video/Publications
