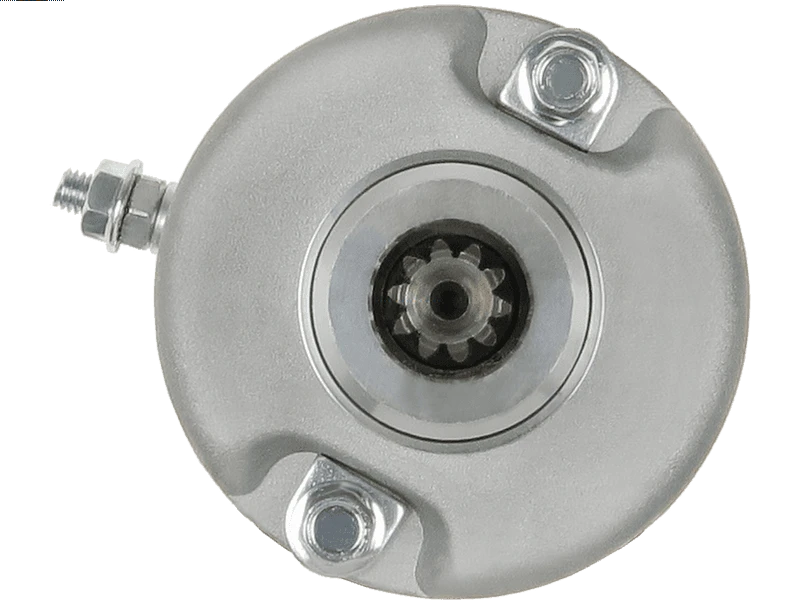

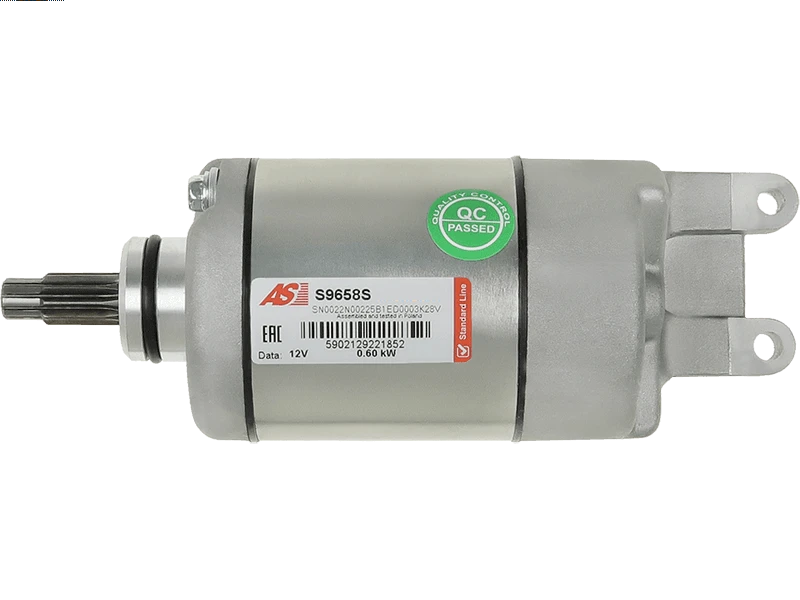

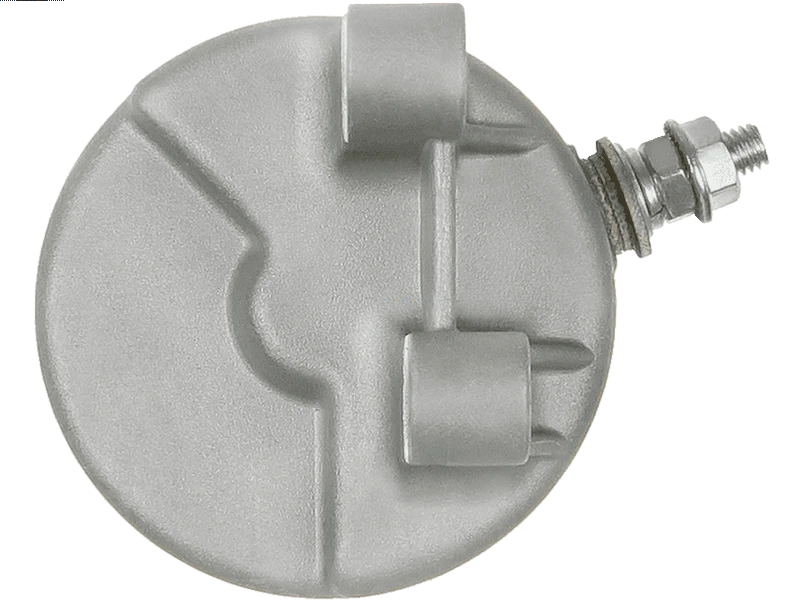

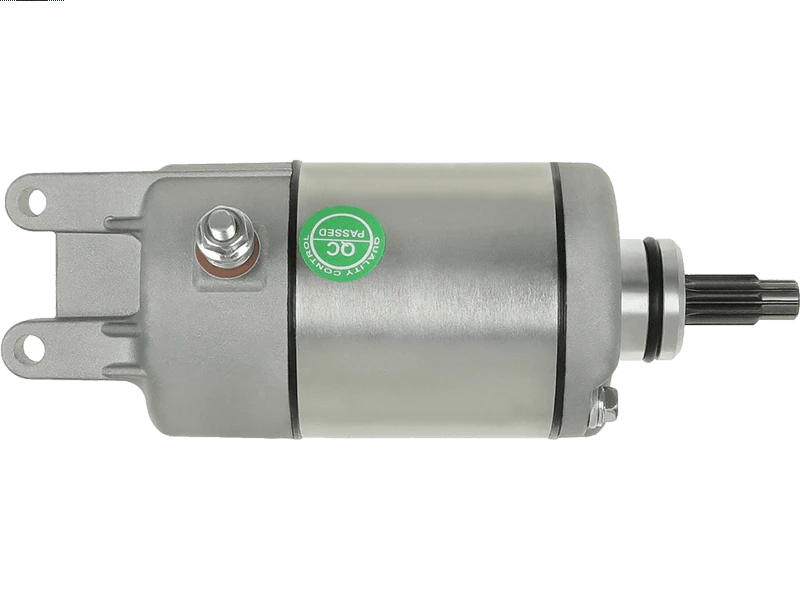

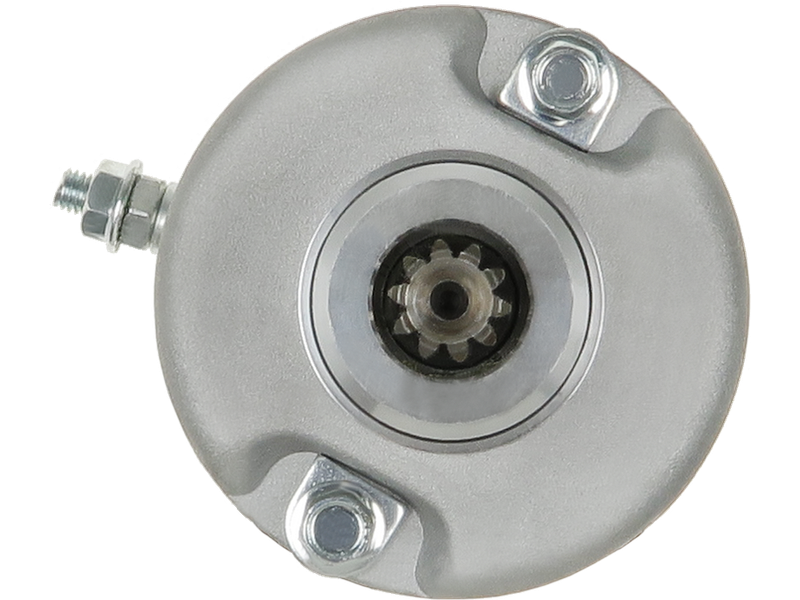

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
ACW ROTATION
Price:
NZ$ 111.70 including GST
NZ$ 97.13 excluding GST
or four payments of $27.93
with
Learn More
each
S9658S
2

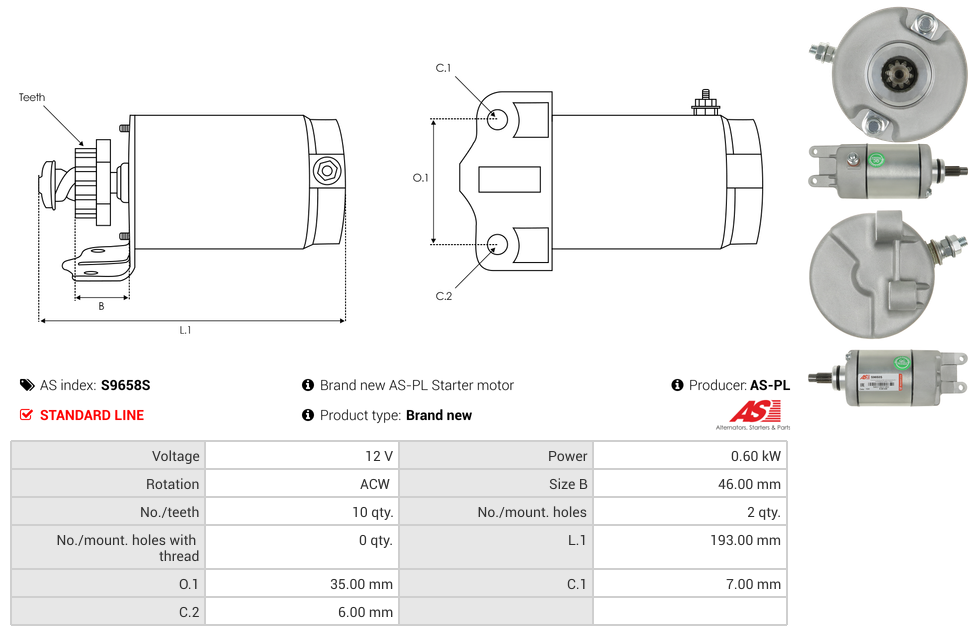

Specifications
ANTI CLOCKWISE STARTER
For Clockwise version see: - S9708S
| Kilowatt | 0.6 kW |
| Length (L.1) | 193 mm |
| Mount Hole Center - Center (O.1) | 35 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 6 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 46 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | ATC250ES | [246cc] | 01.1987-12.1987 |
| HONDA | ATC250SX | [246cc] | 01.1987-12.1987 |
| HONDA | TRX250 Fourtrax | [246cc] | 01.1987-12.1987 |
| HONDA | TRX300 | [281cc] | 01.1988-12.2000 |
| HONDA | TRX300FW | [281cc] | 01.1988-12.2000 |
Reference Information
71-26-18337 128000-4400 31200-HA6-774 31200-HA6306 31200-HC-4023 242-06103 2-2181-MT-9 SMU0028 UD19137S 18337 31200-HC4033 SM132-13 31200-HC4013 111921 STRE155 31200-HA6316 PRSE155 MS-814N 400.025.100.200 18337N MS-814 RS41181 254937 HN2-0002N 31200-HA6773 STR75402 31200-HA0-773 31200-HC4003 31200-HA0-774Video/Publications
