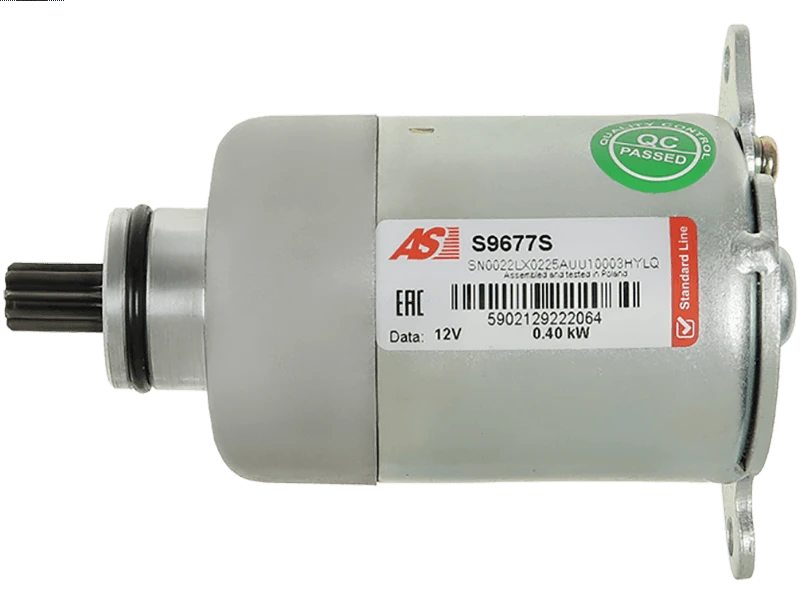

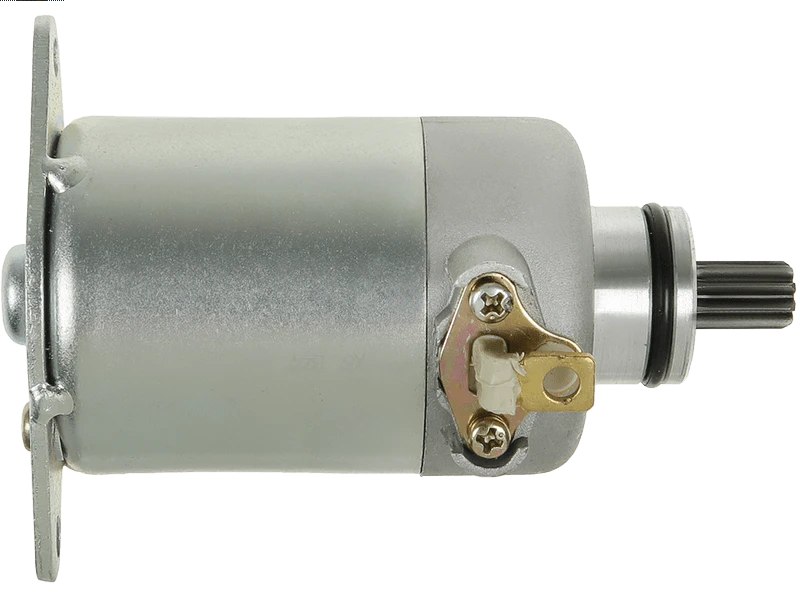

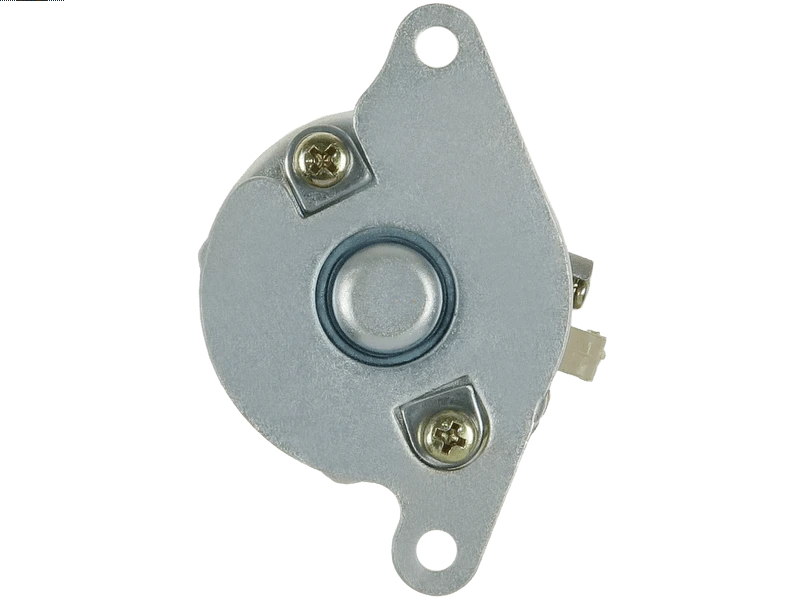

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
SYM
Price:
NZ$ 76.54 including GST
NZ$ 66.56 excluding GST
or four payments of $19.14
with
Learn More
each
S9677S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 0.4 kW |
| Length (L.1) | 132 mm |
| Mount Hole Center - Center (O.1) | 78 mm |
| Mount Hole Diameter (C.1) | 6.5 mm |
| Mount Hole Diameter (C.2) | 6.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 35 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | SYM |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SYM | HD 125 | [125cc] | 01.2007- |
| SYM | HD2 125 | [124cc] | 01.2011- |
| SYM | Joyride 125 | [124cc] | 01.2000-12.2004 |
| SYM | Joyride 125 | [125cc] | 01.2005-12.2008 |
| SYM | Joyride 125 Evo | [124cc] | 01.2009- |
Reference Information
MAV401200A 37042N 6038120 37042 801068 255774 31200-H9A-000 UD19099S 20415021BN CST38120AS 10038120AV 31200-HBA-000Video/Publications
