Associated Numbers
ARROWHEAD SMU0031 HI LEVEL STH0031 HONDA 31200-HA7-771 31200HA7-771 31200-HA7-772 31200HA7-772 31200-HA7-773 31200HA7-773 J&N ELECTRICAL PRODUCTS 410-54007 JANNCO 410-54007R LESTER 18339 MITSUBA SM13232 SM-8 111923 Cargo 22182MT 25231A Elstock 31200HA7771 Honda 31200HA7772 31200HA7773 400030090 PSH Mitsuba ST18339 RCP
Specifications
CLOCKWISE STARTER
For Anti Clockwise version see: - S9658S

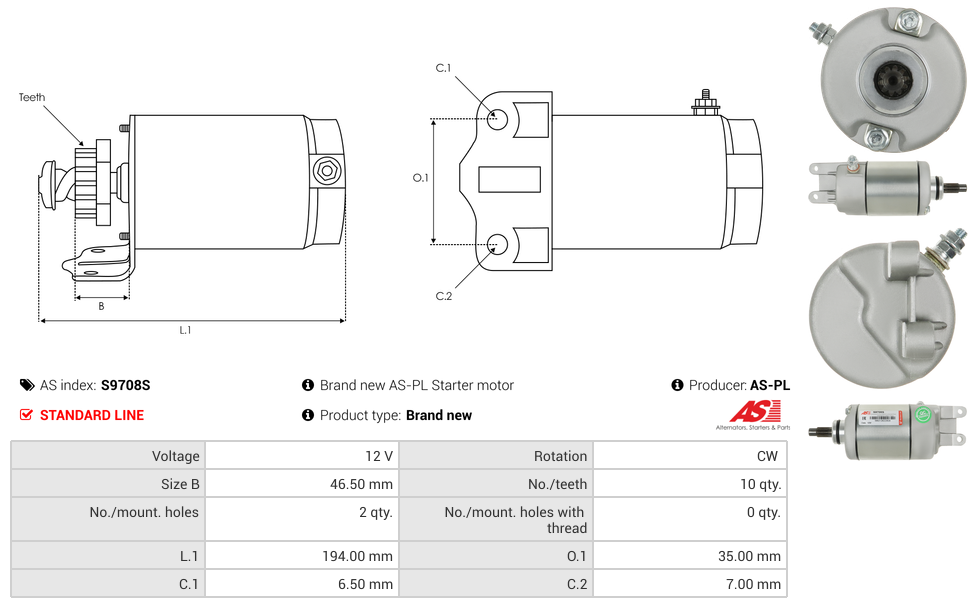

| Length (L.1) | 194 mm |
| Mount Hole Center - Center (O.1) | 35 mm |
| Mount Hole Diameter (C.1) | 6.5 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 46.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | TRX350 | [350cc] | 01.1987-12.1987 |
| HONDA | TRX350D | [350cc] | 01.1987-12.1989 |
Reference Information
SM132-32 22182MT 31200-HA7-771 18339N 71-26-18339 SMU0031 STR5972 254939 UD19171S STU1923 111923 18339Video/Publications
