Associated Numbers
Arrowhead SMU0418
Honda 31200HP5601, 31200HR0F01
Lester 18921
PIC Picture ID 191574, 191601
Wilson 71095797
SM18
- Arrowhead SMU0418, SMU0533
- Hi Level STH0418
- Honda 31200-HP5-601, 31200HP5-601, 31200HR0F01, 31200-HR0-F01
- J&N Electrical Products 410-54135
- Lester 18921
- Mitsuba SM18
-
041650
Da Silva
10439117
Alanko
120573092
PSH
18921
Lester
18921N
WAI
256185
DAS
30804N
WAI
3090326
Polaris
31200HP5601
Honda
31200HR0F01
Honda
31200KTF981
Honda
439117
Alanko
6033151
Sando
88215111
PowerMax
CST33151
Casco
DEMQ405
ADI
S130043
Short code
S167804
Short code
S167805
Short code
AS-PL
SM18
Mitsuba
SM18SEL
+line
STR75467
Wood Auto
SXE1186
Everkraft
WOOSTR75467
Wood Auto

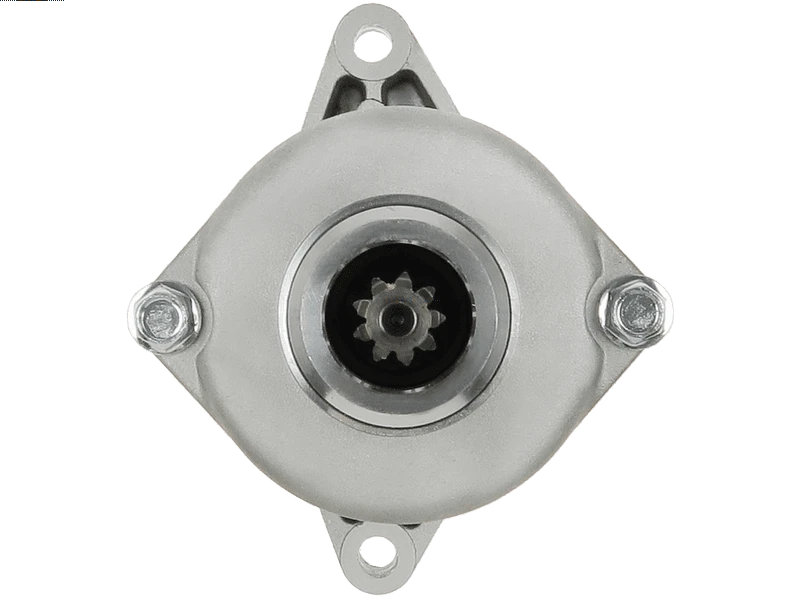

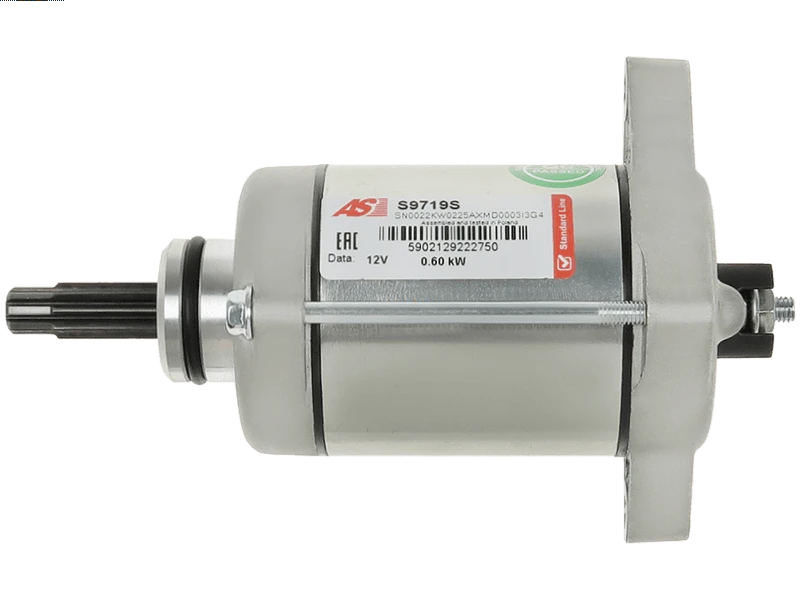

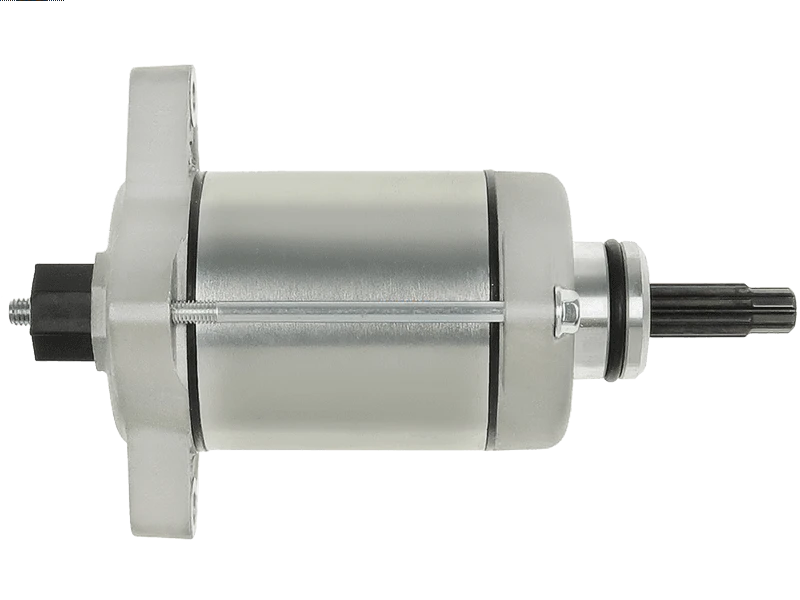

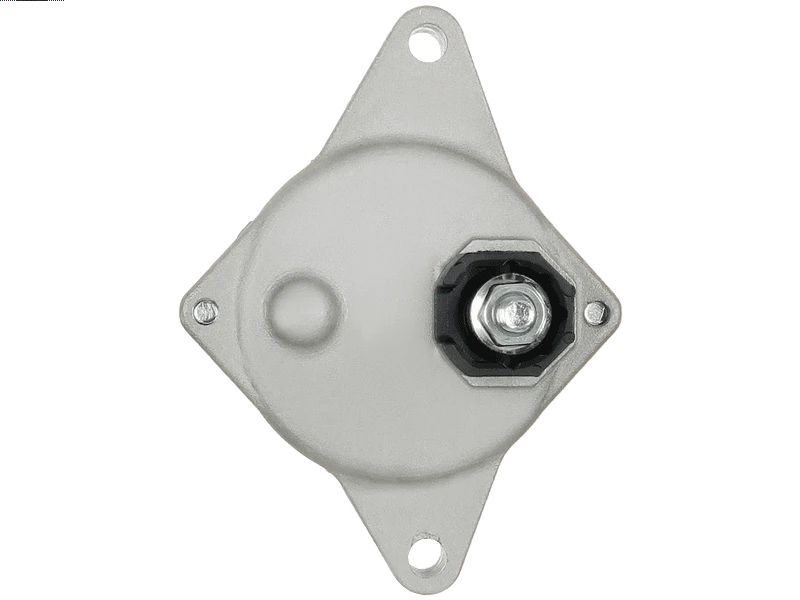

Specifications
| Kilowatt | 0.6 kW |
| Length (L.1) | 165 mm |
| Mount Hole Center - Center (O.1) | 88 mm |
| Mount Hole Diameter (C.1) | 6.5 mm |
| Mount Hole Diameter (C.2) | 6.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 49 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | Pioneer 500 | [475cc] | 01.2015-12.2019 |
| HONDA | TRX420FA | [420cc] | 01.2014-12.2017 |
| HONDA | TRX420FE | [420cc] | 01.2007-12.2019 |
| HONDA | TRX420FM | [420cc] | 01.2007-12.2016 |
| HONDA | TRX420FPA | [420cc] | 01.2009-12.2014 |
| HONDA | TRX420FPE | [420cc] | 01.2009-12.2014 |
| HONDA | TRX420FPM | [420cc] | 01.2009-12.2013 |
| HONDA | TRX420TE | [420cc] | 01.2007-12.2013 |
| HONDA | TRX420TE | [420cc] | 01.2014-12.2016 |
| HONDA | TRX420TM | [420cc] | 01.2007-12.2016 |
| HONDA | TRX500FA | [499cc] | 01.2015-12.2019 |
| HONDA | TRX500FE | [475cc] | 01.2012-12.2019 |
| HONDA | TRX500FM | [475cc] | 01.2012-12.2019 |
| HONDA | TRX500PE | [475cc] | 01.2012-12.2013 |
| HONDA | TRX500PM | [475cc] | 01.2012-12.2013 |
Reference Information
CST33151AS 71-26-18921 20467151BN 31200-HP5-601 120.573.092.190 6033151 SMU0533 18921N S12MT0528A2 10439117 439117 31200-HR0-F01 UD19062S HN2-0123N 18921Video/Publications
