Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
JOHNSON ELECTRIC
Price:
NZ$ 147.64 including GST
NZ$ 128.38 excluding GST
or four payments of $36.91
with
Learn More
each
S9767S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

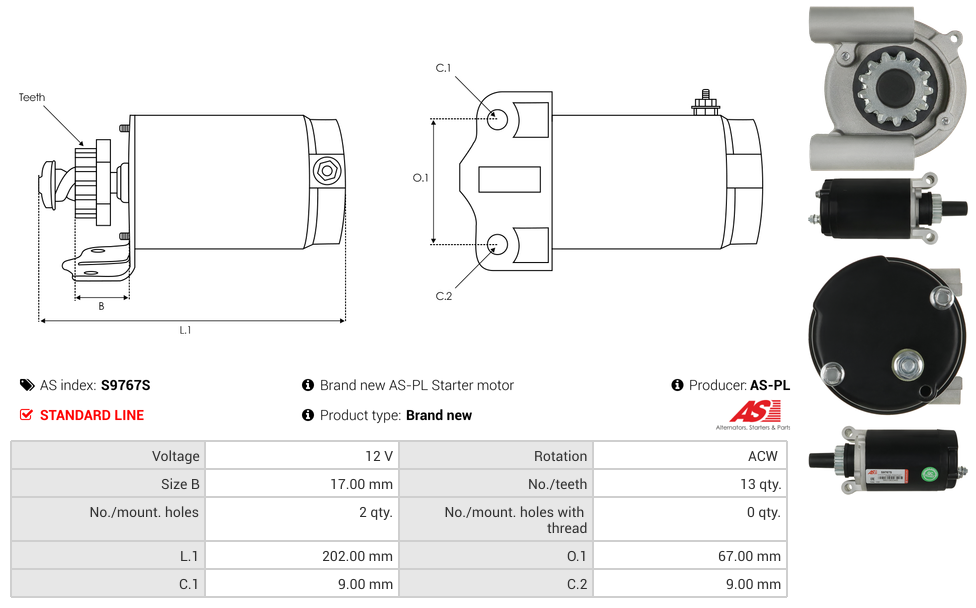

Specifications
| Length (L.1) | 202 mm |
| Mount Hole Center - Center (O.1) | 67 mm |
| Mount Hole Diameter (C.1) | 9 mm |
| Mount Hole Diameter (C.2) | 9 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 13 qty |
| OEM Product | No |
| Pinion at Rest (B) | 17 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | JOHNSON ELECTRIC |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CUB CADET | 1315 | [12.5H.P.] | 01.1989-12.1991 |
| CUB CADET | 1320 | [12.5H.P.] | 01.1989-12.1991 |
| CUB CADET | 1325 | [12.5H.P.] | 01.1992-12.1993 |
| CUB CADET | 1330 | 01.1992-12.1993 | |
| CUB CADET | 1340 | [12.5H.P.] | 01.1990-12.1991 |
| CUB CADET | 1405 | [14H.P.] | 01.1990-12.1991 |
| CUB CADET | 1405 | 01.1990-12.1991 | |
| CUB CADET | 1415 | 01.1988-12.1989 | |
| CUB CADET | 1420 | 01.1988-12.1991 | |
| CUB CADET | 1715 | 01.1988-12.1990 | |
| CUB CADET | 1720 | 01.1988-12.1991 | |
| KOHLER | C12-5 | 01.1998-12.2008 | |
| TORO | 264-6 | [14H.P.] | 01.1994-12.1996 |
| TORO | 264-H | [14H.P.] | 01.1994-12.1996 |
| TORO | 312-8 | [12.5H.P.] | 01.1998-12.2001 |
| TORO | 312-8 | 01.1998-12.2008 | |
| TORO | 314-8 | [14H.P.] | 01.1999-12.2001 |
| TORO | 314-8 | 01.1998-12.2008 | |
| TORO | 314-8-T | 01.1998-12.2008 | |
| TORO | 314-H | 01.1995-12.2005 | |
| TORO | 315-8 | [15H.P.] | 01.2002-12.2004 |
| TORO | GT | 01.2005-12.2007 | |
| TORO | ProLine 185 | [CV14S-1429] | 01.1991-12.1992 |
Reference Information
12-098-09 12-098-06 5239740MO30SM AC-CBS5112 1209812 STR7639 6727020MO30SM SM52784 SAB0038 5667040MO30SM 1209814 WOOSTR88201 UT2-0019N 1209819 UD19202S 10440762 5771N 2-2242 5278440M030SM 12-098-19S 12-098-21 UT2-0019N-A STZ5771 12-098-05 112150 400.500.132.200 254969 6734640MO30SM 6734620MO30SM 5278440MO30SM MS-699 5771 F032112150 RS41023 96756 5667040 STR88201 12-098-21-S UT2-0074N 5278440 5239740M030SM 5239740 SM52397 5667040M030SM SM56670 71-09-5771 206-07111 20607111Video/Publications
