Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
JOHNSON ELECTRIC
Price:
NZ$ 166.52 including GST
NZ$ 144.80 excluding GST
or four payments of $41.63
with
Learn More
each
S9769S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

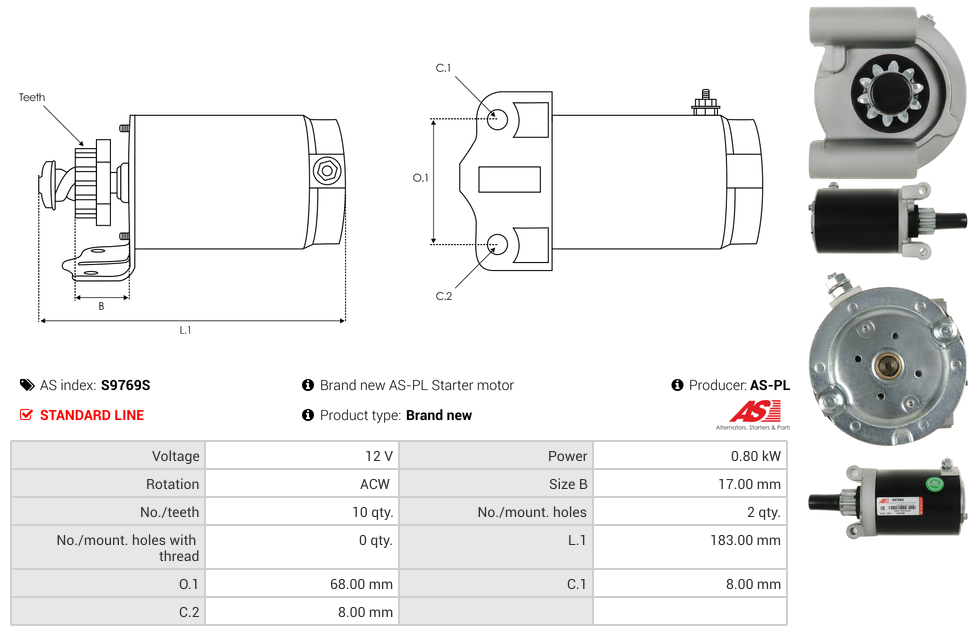

Specifications
| Kilowatt | 0.8 kW |
| Length (L.1) | 183 mm |
| Mount Hole Center - Center (O.1) | 68 mm |
| Mount Hole Diameter (C.1) | 8 mm |
| Mount Hole Diameter (C.2) | 8 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 17 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | JOHNSON ELECTRIC |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | Engine | [CV12.5] | |
| JOHN DEERE | Engine | [CV14] |
Reference Information
STC0026 113017 5775N 6038131.0 25-098-03 UD19206S 5667140MO30SM AM132818 AM117130 3117852 5775 25-098-03S CST38131AS STZ7130 206-07120 107267 71-09-5775 SCA131A 96772 106-10144 400.078.102.200 6727040MO30SM SE501845 RS41349 10441030 MS-6004 MAV401310A 254973 2-2756-UT-2 SAB0108 MS-6001 20415131BN 106-10144NOE 12-098-10 AM120729 10038131AVVideo/Publications
S9769SView your shopping basket or Browse other items in Starter Motors.
