Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
PRESTOLITE
Price:
NZ$ 787.07 including GST
NZ$ 684.41 excluding GST
or four payments of $196.77
with
Learn More
each
S9780S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information

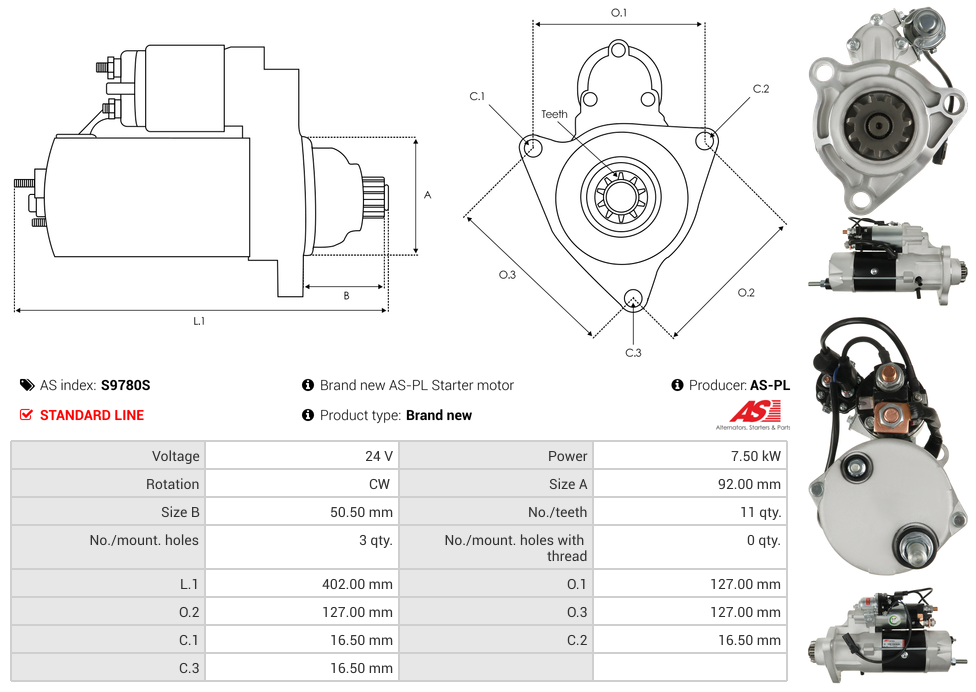

M105R3135SESpecifications
| Kilowatt | 7.5 kW |
| Length (L.1) | 402 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 16.5 mm |
| Mount Hole Diameter (C.2) | 16.5 mm |
| Mount Hole Diameter (C.3) | 16.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 50.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | PRESTOLITE |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | Engine | [C10] | |
| CATERPILLAR | Engine | [C13] | |
| CATERPILLAR | Engine | [C15] | |
| CATERPILLAR | Engine | [C16] | |
| CATERPILLAR | Engine | [C18] | |
| CATERPILLAR | Engine | [C9] | |
| CATERPILLAR | Engine | [XQP300] | |
| FG WILSON | Various Models | ||
| PERKINS | Various Models |
Reference Information
641.556.113.380 M105R3135SE 6011667.1 3900788 SPR667 256174P 10011667OV CST11667GS M105R3077SE 20412766OE 3895796 641.556.113.130 UD102259S 3895799Video/Publications
