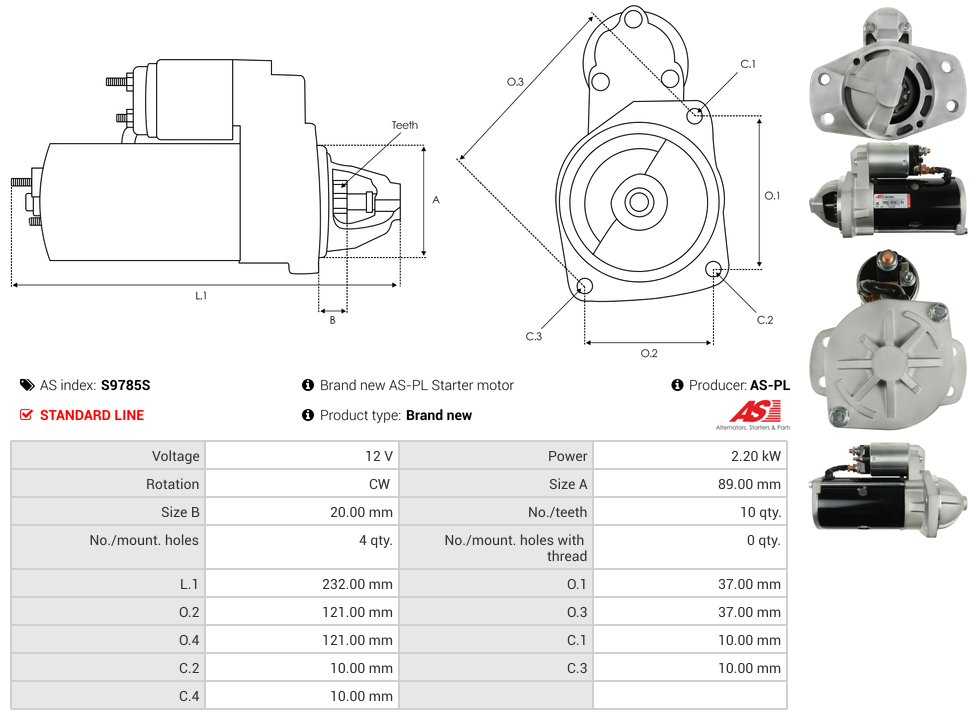

Specifications
| Kilowatt | 2.2 kW |
| Length (L.1) | 232 mm |
| Mount Hole Center - Center (O.1) | 37 mm |
| Mount Hole Center - Center (O.2) | 121 mm |
| Mount Hole Center - Center (O.3) | 37 mm |
| Mount Hole Center - Center (O.4) | 121 mm |
| Mount Hole Diameter (C.1) | 10 mm |
| Mount Hole Diameter (C.2) | 10 mm |
| Mount Hole Diameter (C.3) | 10 mm |
| Mount Hole Diameter (C.4) | 10 mm |
| No./Mount holes | 4 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 20 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DAEWOO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAEWOO | Various Models | ||
| DOOSAN | Various Models |
Reference Information
10046109OV MAV48109 SDA109 230.513.104.620 UD102435S 6046109.1 A403535 20460901OE MAV481090 CST46109GS 107925Video/Publications
