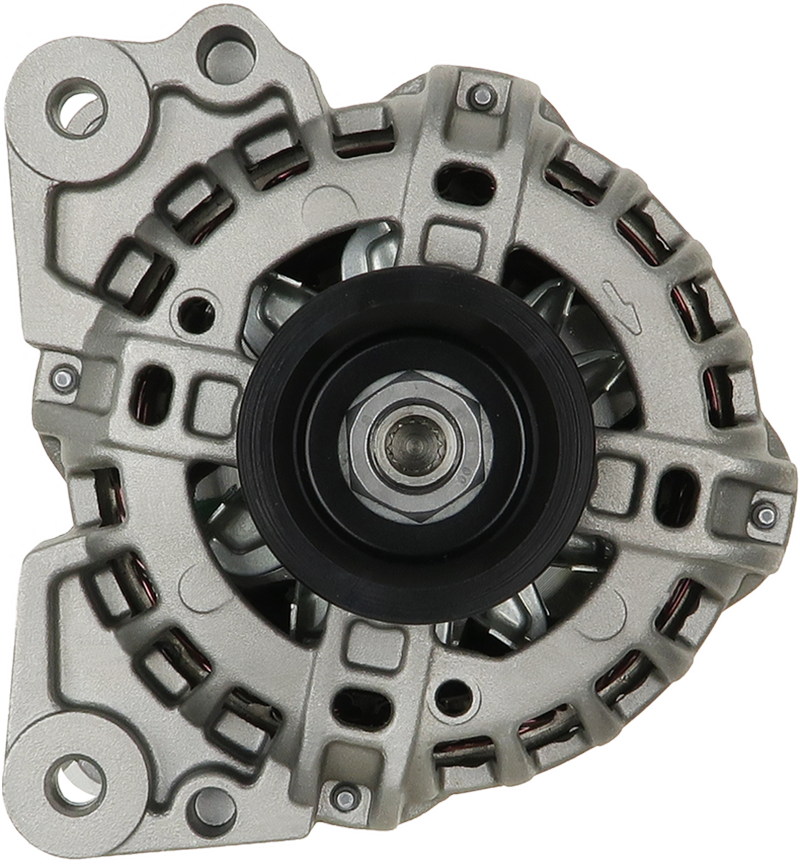

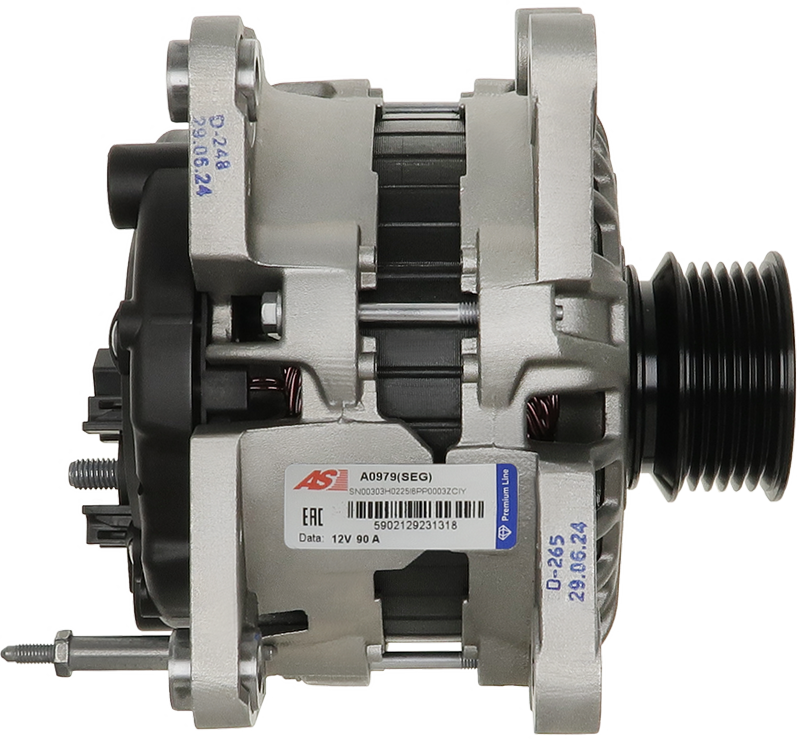

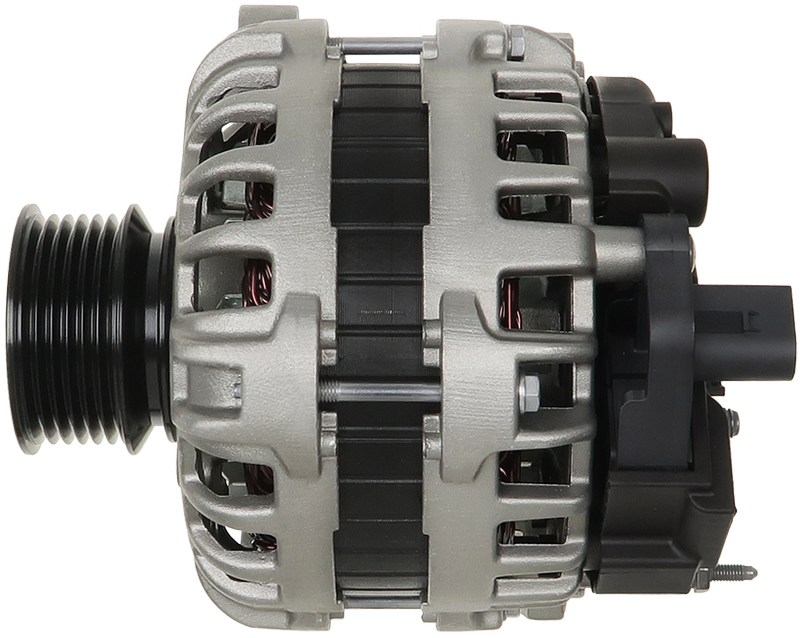

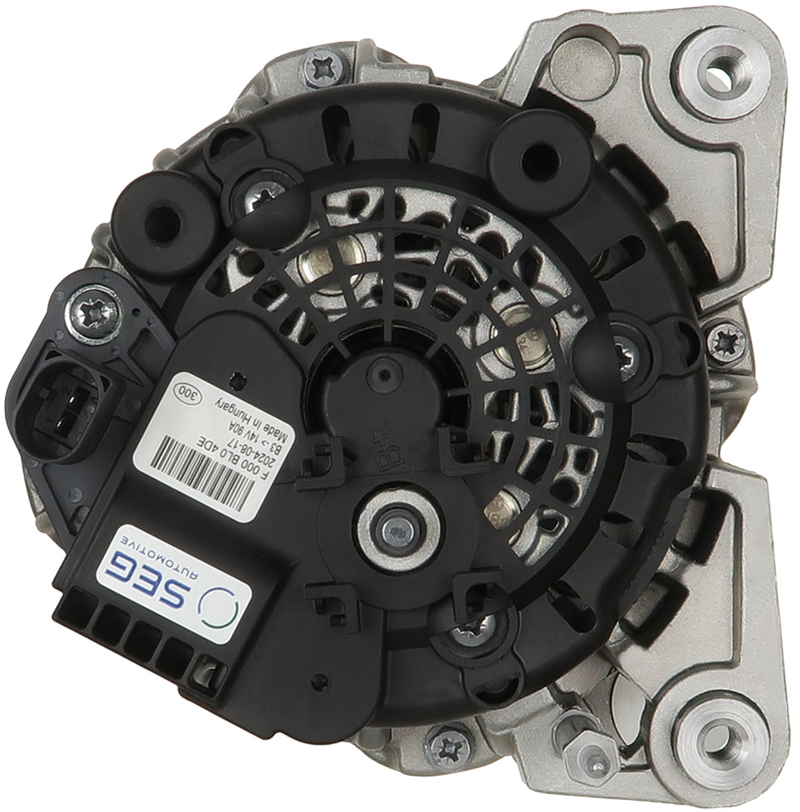

A0979(SEG) - Brand new OEM SEG Alternator

Specifications

Amp	90 A
Bottom Mounting Foot Width (B)	14 mm
Diameter (D.1)	8.5 mm
Diameter (D.2)	8.5 mm
Diameter (D.3)	M8x1.25 mm
Diameter (D.4)	M8x1.25 mm
Length (L.1)	182 mm
Mount Inside Length or Pad Mount C-C (C)	59 mm
OEM Product	Yes
Plug Code	PL_2300
Product Line	Premium Line
Product Type	Brand new
Pulley Grooves	6 qty
Pulley Outside Diameter (O.D.1)	56 mm
Pulley to Mount Distance (A)	40 mm
Pulley Type	SOLID
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUDI	A2 1.4	[AUA]	02.2000-11.2001
AUDI	A2 1.4	[BBY]	11.2001-08.2005
AUDI	A3 1.6	[AEH]	09.1996-05.2003
AUDI	A3 1.6	[AKL]	08.1997-05.2003
AUDI	A3 1.6	[APF]	08.1998-05.2003
AUDI	A3 1.6	[AVU]	08.2000-05.2003
AUDI	A3 1.6	[BFQ]	08.2000-05.2003
AUDI	A3 1.8	[AGN]	09.1996-05.2003
AUDI	A3 1.8	[APG]	08.1998-05.2003
AUDI	A3 1.8 T	[AGU]	12.1996-05.2003
AUDI	A3 1.8 T	[AJQ]	12.1998-05.2003
AUDI	A3 1.8 T	[APP]	12.1998-05.2003
AUDI	A3 1.8 T	[AQA]	08.1998-05.2003
AUDI	A3 1.8 T	[ARY]	12.1998-05.2003
AUDI	A3 1.8 T	[ARZ]	01.1998-05.2003
AUDI	A3 1.8 T	[AUM]	12.1996-05.2003
AUDI	A3 1.8 T	[AUQ]	12.1998-05.2003
AUDI	A3 1.8 T Quattro	[AGU]	12.1996-05.2003
AUDI	A3 1.8 T Quattro	[AJQ]	10.1998-05.2003
AUDI	A3 1.8 T Quattro	[AQA]	08.1998-05.2003
AUDI	A3 1.8 T Quattro	[ARX]	12.1996-05.2003
AUDI	A3 1.8 T Quattro	[ARY]	10.1998-05.2003
AUDI	S3 1.8 Quattro	[AMK]	03.1999-04.2002
AUDI	S3 1.8 Quattro	[APY]	03.1999-04.2002
AUDI	S3 1.8 Quattro	[AUL]	03.1999-04.2002
AUDI	S3 1.8 Quattro	[BAM]	10.2001-05.2003
AUDI	TT 1.8 T	[AJQ]	10.1998-06.2006
AUDI	TT 1.8 T	[AJQ]	10.1999-06.2006
AUDI	TT 1.8 T	[APP]	10.1998-06.2006
AUDI	TT 1.8 T	[APP]	10.1999-06.2006
AUDI	TT 1.8 T	[ATC]	10.1998-06.2006
AUDI	TT 1.8 T	[ATC]	10.1999-06.2006
AUDI	TT 1.8 T	[AUM]	09.2002-06.2006
AUDI	TT 1.8 T	[AUQ]	10.1998-06.2006
AUDI	TT 1.8 T	[AUQ]	10.1999-06.2006
AUDI	TT 1.8 T	[AWP]	10.1998-06.2006
AUDI	TT 1.8 T	[AWP]	10.1999-06.2006
AUDI	TT 1.8 T	[BVP]	09.2005-06.2006
AUDI	TT 1.8 T	[BVR]	09.2005-06.2006
AUDI	TT 1.8 T Quattro	[AJQ]	02.2000-06.2006
AUDI	TT 1.8 T Quattro	[AJQ]	10.1998-06.2006
AUDI	TT 1.8 T Quattro	[APX]	10.1998-06.2006
AUDI	TT 1.8 T Quattro	[ARY]	02.2000-06.2006
AUDI	TT 1.8 T Quattro	[ARY]	10.1998-06.2006
AUDI	TT 1.8 T Quattro	[ATC]	10.1998-06.2006
AUDI	TT 1.8 T Quattro	[AUQ]	02.2000-06.2006
AUDI	TT 1.8 T Quattro	[AUQ]	10.1998-06.2006
AUDI	TT 1.8 T Quattro	[BAM]	10.1998-06.2006
AUDI	TT 1.8 T Quattro	[BEA]	10.1998-06.2006
AUDI	TT 1.8 T Quattro	[BFV]	03.2005-06.2006
AUDI	TT 1.8 T Quattro	[BVR]	09.2005-06.2006
AUDI	TT 3.2 VR6 Quattro	[BHE]	07.2003-06.2006
AUDI	TT 3.2 VR6 Quattro	[BPF]	07.2003-06.2006
SEAT	Altea 1.6	[BGU]	06.2004-
SEAT	Altea 1.6	[BSE]	03.2004-
SEAT	Altea 1.6	[BSF]	03.2004-
SEAT	Altea 1.6	[CCSA]	03.2004-
SEAT	Cordoba 1.8 T 20V Cupra	[AQX]	07.2000-10.2002
SEAT	Cordoba 1.8 T 20V Cupra	[AYP]	07.2000-10.2002
SEAT	Cordoba 2.0	[AZL]	09.2002-11.2009
SEAT	Cordoba 2.0	[BBX]	09.2002-11.2009
SEAT	Ibiza 1.2	[AZQ]	02.2002-06.2006
SEAT	Ibiza 1.2	[BME]	02.2002-06.2006
SEAT	Ibiza 1.8 T 20V Cupra	[AQX]	07.2000-02.2002
SEAT	Ibiza 1.8 T 20V Cupra	[AYP]	07.2000-02.2002
SEAT	Ibiza 1.8 T Cupra R	[BBU]	01.2004-02.2008
SEAT	Ibiza 1.8 T Cupra R	[BLZ]	01.2004-02.2008
SEAT	Ibiza 1.8 T FR	[BJX]	12.2003-05.2008
SEAT	Ibiza 1.8 T FR	[BKV]	12.2003-05.2008
SEAT	Ibiza 2.0	[AZL]	04.2002-11.2009
SEAT	Ibiza 2.0	[BBX]	04.2002-11.2009
SEAT	Leon 1.4 16V	[AHW]	11.1999-06.2006
SEAT	Leon 1.4 16V	[APE]	05.2000-06.2006
SEAT	Leon 1.4 16V	[AXP]	06.2000-06.2006
SEAT	Leon 1.4 16V	[BCA]	11.1999-06.2006
SEAT	Leon 1.6	[AEH]	11.1999-06.2006
SEAT	Leon 1.6	[AKL]	11.1999-06.2006
SEAT	Leon 1.6 16 V	[AUS]	09.2000-06.2006
SEAT	Leon 1.6 16 V	[AZD]	09.2000-06.2006
SEAT	Leon 1.6 16 V	[BCB]	09.2000-06.2006
SEAT	Leon 1.8 20V	[AGN]	11.1999-06.2006
SEAT	Leon 1.8 20V	[APG]	11.1999-06.2006
SEAT	Leon 1.8 20V T	[APP]	11.1999-06.2006
SEAT	Leon 1.8 20V T	[AUQ]	03.2000-06.2006
SEAT	Leon 1.8 20V T 4	[AJQ]	11.1999-06.2006
SEAT	Leon 1.8 20V T 4	[ARY]	03.2000-06.2006
SEAT	Leon 1.8 T Cupra R	[AMK]	02.2002-06.2006
SEAT	Leon 1.8 T Cupra R	[BAM]	07.2003-06.2006
SEAT	Toledo 1.4 16V	[AHW]	01.2000-05.2002
SEAT	Toledo 1.4 16V	[APE]	01.2000-05.2002
SEAT	Toledo 1.4 16V	[AXP]	01.2000-05.2002
SEAT	Toledo 1.4 16V	[BCA]	01.2000-05.2002
SEAT	Toledo 1.6	[AEH]	10.1998-07.2004
SEAT	Toledo 1.6	[AKL]	10.1998-07.2004
SEAT	Toledo 1.6 16V	[AUS]	06.2000-05.2006
SEAT	Toledo 1.6 16V	[AZD]	06.2000-05.2006
SEAT	Toledo 1.6 16V	[BCB]	06.2000-05.2006
SEAT	Toledo 1.8 20V	[AGN]	10.1998-07.2004
SEAT	Toledo 1.8 20V	[APG]	05.1999-07.2004
SEAT	Toledo 1.8 20V T	[APP]	09.2000-07.2004
SEAT	Toledo 1.8 20V T	[ARY]	09.2000-07.2004
SEAT	Toledo 1.8 20V T	[AUQ]	09.2000-07.2004
SKODA	Fabia 1.4 16V	[AUA]	05.2000-12.2007
SKODA	Fabia 1.4 16V	[AUA]	10.1999-12.2007
SKODA	Fabia 1.4 16V	[AUA]	12.1999-03.2008
SKODA	Fabia 1.4 16V	[AUB]	04.2000-12.2007
SKODA	Fabia 1.4 16V	[AUB]	12.1999-03.2008
SKODA	Fabia 1.4 16V	[AUB]	12.1999-12.2007
SKODA	Fabia 1.4 16V	[BBY]	05.2000-12.2007
SKODA	Fabia 1.4 16V	[BBY]	10.1999-12.2007
SKODA	Fabia 1.4 16V	[BBY]	12.1999-03.2008
SKODA	Fabia 1.4 16V	[BBZ]	04.2000-12.2007
SKODA	Fabia 1.4 16V	[BBZ]	12.1999-03.2008
SKODA	Fabia 1.4 16V	[BBZ]	12.1999-12.2007
SKODA	Fabia 1.4 16V	[BKY]	05.2000-12.2007
SKODA	Fabia 1.4 16V	[BKY]	10.1999-12.2007
SKODA	Fabia 1.4 16V	[BKY]	12.1999-03.2008
SKODA	Fabia 2.0	[AZL]	04.2000-12.2007
SKODA	Fabia 2.0	[AZL]	12.1999-03.2008
SKODA	Fabia 2.0	[AZL]	12.1999-12.2007
SKODA	Octavia 1.4 16V	[AXP]	08.2000-12.2010
SKODA	Octavia 1.4 16V	[AXP]	09.2000-12.2010
SKODA	Octavia 1.4 16V	[BCA]	08.2000-12.2010
SKODA	Octavia 1.4 16V	[BCA]	09.2000-12.2010
SKODA	Octavia 1.6	[AEE]	07.1998-09.2004
SKODA	Octavia 1.6	[AEE]	09.1996-09.2004
SKODA	Octavia 1.6	[AEH]	02.1997-12.2007
SKODA	Octavia 1.6	[AEH]	07.1998-12.2007
SKODA	Octavia 1.6	[AKL]	02.1997-12.2007
SKODA	Octavia 1.6	[AKL]	07.1998-12.2007
SKODA	Octavia 1.6	[AVU]	09.2000-12.2010
SKODA	Octavia 1.6	[AVU]	11.2000-12.2010
SKODA	Octavia 1.6	[BFQ]	09.2000-12.2010
SKODA	Octavia 1.6	[BFQ]	11.2000-12.2010
SKODA	Octavia 1.6	[BGU]	06.2004-06.2013
SKODA	Octavia 1.6	[BGU]	09.2004-06.2013
SKODA	Octavia 1.6	[BSE]	06.2004-06.2013
SKODA	Octavia 1.6	[BSE]	09.2004-06.2013
SKODA	Octavia 1.6	[BSF]	06.2004-06.2013
SKODA	Octavia 1.6	[BSF]	09.2004-06.2013
SKODA	Octavia 1.6	[CCSA]	06.2004-06.2013
SKODA	Octavia 1.6	[CCSA]	09.2004-06.2013
SKODA	Octavia 1.6	[CMXA]	06.2004-06.2013
SKODA	Octavia 1.6	[CMXA]	09.2004-06.2013
SKODA	Octavia 1.6 LPG	[BSE]	08.2009-11.2012
SKODA	Octavia 1.6 LPG	[CHGA]	08.2009-11.2012
SKODA	Octavia 1.8	[AGN]	09.1996-07.2000
SKODA	Octavia 1.8 20V	[AGN]	07.1998-07.2000
SKODA	Octavia 1.8 T	[AGU]	07.1998-12.2010
SKODA	Octavia 1.8 T	[AGU]	08.1997-12.2010
SKODA	Octavia 1.8 T	[ARX]	07.1998-12.2010
SKODA	Octavia 1.8 T	[ARX]	08.1997-12.2010
SKODA	Octavia 1.8 T	[ARZ]	07.1998-12.2010
SKODA	Octavia 1.8 T	[ARZ]	08.1997-12.2010
SKODA	Octavia 1.8 T	[AUM]	07.1998-12.2010
SKODA	Octavia 1.8 T	[AUM]	08.1997-12.2010
SKODA	Octavia 1.8 T 4x4	[ARX]	05.2001-05.2006
SKODA	Octavia 2.0	[AEG]	04.1999-05.2007
SKODA	Octavia 2.0	[APK]	04.1999-05.2007
SKODA	Octavia 2.0	[AQY]	04.1999-05.2007
SKODA	Octavia 2.0	[AZH]	04.1999-05.2007
SKODA	Octavia 2.0	[AZJ]	04.1999-05.2007
SKODA	Octavia 2.0 4x4	[ATF]	01.2000-12.2010
SKODA	Octavia 2.0 4x4	[AZH]	08.2000-09.2004
SKODA	Octavia 2.0 4x4	[AZJ]	08.2000-09.2004
SKODA	Octavia RS 1.8 T	[AUQ]	05.2001-01.2006
SKODA	Octavia RS 1.8 T	[AUQ]	08.2002-01.2006
VW	Bora 1.4 16V	[AHW]	05.2000-05.2005
VW	Bora 1.4 16V	[AHW]	09.2001-05.2005
VW	Bora 1.4 16V	[AKQ]	03.2000-05.2000
VW	Bora 1.4 16V	[APE]	03.2000-05.2000
VW	Bora 1.4 16V	[AXP]	03.2000-05.2005
VW	Bora 1.4 16V	[AXP]	09.2001-05.2005
VW	Bora 1.4 16V	[BCA]	03.2000-05.2005
VW	Bora 1.4 16V	[BCA]	09.2001-05.2005
VW	Bora 1.6	[AEH]	05.1999-05.2005
VW	Bora 1.6	[AEH]	10.1998-05.2005
VW	Bora 1.6	[AKL]	05.1999-05.2005
VW	Bora 1.6	[AKL]	10.1998-05.2005
VW	Bora 1.6	[APF]	05.1999-09.2000
VW	Bora 1.6	[APF]	10.1998-05.2005
VW	Bora 1.6	[AVU]	08.2000-05.2005
VW	Bora 1.6	[BFQ]	08.2000-05.2005
VW	Bora 1.6 16V	[ATN]	02.2000-05.2000
VW	Bora 1.6 16V	[ATN]	05.2000-05.2005
VW	Bora 1.6 16V	[AUS]	05.2000-10.2000
VW	Bora 1.6 16V	[AZD]	09.2000-05.2005
VW	Bora 1.6 16V	[BCB]	02.2000-05.2005
VW	Bora 1.6 16V	[BCB]	05.2000-05.2005
VW	Bora 1.8	[AGN]	10.1998-05.2005
VW	Bora 1.8	[BAF]	10.1998-05.2005
VW	Bora 1.8 4motion	[AGN]	02.1999-05.2005
VW	Bora 1.8 4motion	[AGN]	05.1999-05.2005
VW	Bora 1.8 T	[AGU]	05.2000-05.2005
VW	Bora 1.8 T	[ARX]	05.2000-05.2005
VW	Bora 1.8 T	[AUM]	05.2000-05.2005
VW	Bora 1.8 T	[AUQ]	03.2002-05.2005
VW	Bora 1.8 T	[AUQ]	05.2002-05.2005
VW	Bora 1.8 T	[AWD]	05.2000-05.2005
VW	Bora 1.8 T	[AWP]	03.2002-05.2005
VW	Bora 1.8 T	[AWP]	05.2002-05.2005
VW	Bora 1.8 T	[AWW]	05.2000-05.2005
VW	Bora 1.9 TDi	[AHF]	05.1999-06.2001
VW	Bora 1.9 TDi	[AHF]	10.1998-06.2001
VW	Bora 1.9 TDi	[ASV]	05.2000-06.2001
VW	Bora 1.9 TDi	[ASV]	10.1998-06.2001
VW	Bora 2.0	[AEG]	10.1998-12.2013
VW	Bora 2.0	[APK]	05.1999-05.2005
VW	Bora 2.0	[APK]	10.1998-05.2000
VW	Bora 2.0	[AQY]	05.1999-05.2005
VW	Bora 2.0	[AQY]	10.1998-12.2013
VW	Bora 2.0	[AVH]	05.1999-05.2005
VW	Bora 2.0	[AVH]	10.1998-12.2013
VW	Bora 2.0	[AZG]	04.2000-12.2013
VW	Bora 2.0	[AZG]	05.1999-05.2005
VW	Bora 2.0	[AZH]	04.2000-06.2001
VW	Bora 2.0	[AZJ]	05.1999-05.2005
VW	Bora 2.0	[AZJ]	10.1998-12.2013
VW	Bora 2.0	[BBW]	10.1998-12.2013
VW	Bora 2.0	[BER]	10.1998-12.2013
VW	Bora 2.0	[BEV]	05.1999-05.2005
VW	Bora 2.0	[BEV]	10.1998-12.2013
VW	Bora 2.0	[BHP]	10.1998-12.2013
VW	Bora 2.0	[CBPA]	10.1998-12.2013
VW	Bora 2.0	[CFEA]	10.1998-12.2013
VW	Bora 2.0 4motion	[AZH]	02.2001-05.2005
VW	Bora 2.0 4motion	[AZH]	04.2000-05.2005
VW	Bora 2.0 4motion	[AZJ]	04.2000-05.2005
VW	Caddy 1.6	[BGU]	04.2004-05.2015
VW	Caddy 1.6	[BSE]	04.2004-05.2015
VW	Caddy 1.6	[BSF]	04.2004-05.2015
VW	Caravelle 2.0	[AXA]	11.2003-08.2015
VW	Caravelle 2.4 D	[AJA]	08.1997-04.2003
VW	Caravelle 2.5	[AAF]	11.1990-12.1993
VW	Caravelle 2.5	[ACU]	09.1990-06.2003
VW	Caravelle 2.5	[AEN]	09.1990-06.2003
VW	Caravelle 2.5	[AET]	08.1996-04.2003
VW	Caravelle 2.5	[AEU]	09.1990-06.2003
VW	Caravelle 2.5	[APL]	05.1999-04.2003
VW	Caravelle 2.5	[AVT]	08.1996-04.2003
VW	Caravelle 2.5 Syncro	[AAF]	08.1992-12.1993
VW	Caravelle 2.5 Syncro	[ACU]	01.1994-04.2003
VW	Caravelle 2.5 Syncro	[AET]	08.1996-04.2003
VW	Caravelle 2.5 Syncro	[AEU]	08.1992-04.2003
VW	Caravelle 2.5 Syncro	[APL]	05.1999-04.2003
VW	Caravelle 2.5 Syncro	[AVT]	07.1996-04.2003
VW	Caravelle 2.5 TDi	[ACV]	09.1995-04.2003
VW	Caravelle 2.5 TDi	[AHY]	05.1998-04.2003
VW	Caravelle 2.5 TDi	[AJT]	05.1998-04.2003
VW	Caravelle 2.5 TDi	[AUF]	09.1995-04.2003
VW	Caravelle 2.5 TDi	[AXG]	05.1998-04.2003
VW	Caravelle 2.5 TDi	[AYC]	09.1995-04.2003
VW	Caravelle 2.5 TDi	[AYY]	05.1998-04.2003
VW	Caravelle 2.5 TDi Syncro	[ACV]	01.1996-04.2003
VW	Caravelle 2.5 TDi Syncro	[AXL]	01.1996-04.2003
VW	Golf IV 1.4 16V	[AHW]	05.1999-06.2006
VW	Golf IV 1.4 16V	[AHW]	08.1997-05.2004
VW	Golf IV 1.4 16V	[AKQ]	05.1999-06.2006
VW	Golf IV 1.4 16V	[AKQ]	08.1997-05.2004
VW	Golf IV 1.4 16V	[APE]	05.1999-06.2006
VW	Golf IV 1.4 16V	[APE]	10.1997-05.2004
VW	Golf IV 1.4 16V	[AXP]	05.1999-06.2006
VW	Golf IV 1.4 16V	[AXP]	10.1997-05.2004
VW	Golf IV 1.4 16V	[BCA]	05.1999-06.2006
VW	Golf IV 1.4 16V	[BCA]	10.1997-05.2004
VW	Golf IV 1.6	[AEH]	01.1998-05.2004
VW	Golf IV 1.6	[AEH]	05.1999-04.2002
VW	Golf IV 1.6	[AKL]	05.1999-04.2002
VW	Golf IV 1.6	[AKL]	08.1997-05.2004
VW	Golf IV 1.6	[APF]	05.1999-04.2002
VW	Golf IV 1.6	[APF]	08.1997-05.2004
VW	Golf IV 1.6	[AVU]	08.2000-06.2005
VW	Golf IV 1.6	[AVU]	08.2000-06.2006
VW	Golf IV 1.6	[BFQ]	08.2000-06.2005
VW	Golf IV 1.6	[BFQ]	08.2000-06.2006
VW	Golf IV 1.6 16V	[ATN]	02.2000-06.2005
VW	Golf IV 1.6 16V	[ATN]	02.2000-06.2006
VW	Golf IV 1.6 16V	[AUS]	02.2000-06.2005
VW	Golf IV 1.6 16V	[AUS]	02.2000-06.2006
VW	Golf IV 1.6 16V	[AZD]	02.2000-06.2005
VW	Golf IV 1.6 16V	[AZD]	02.2000-06.2006
VW	Golf IV 1.6 16V	[BCB]	02.2000-06.2005
VW	Golf IV 1.6 16V	[BCB]	02.2000-06.2006
VW	Golf IV 1.8	[AGN]	08.1997-06.2005
VW	Golf IV 1.8 4motion	[AGN]	05.1998-06.2005
VW	Golf IV 1.8 4motion	[AGN]	05.1999-06.2006
VW	Golf IV 1.8 T	[AGU]	05.2000-06.2006
VW	Golf IV 1.8 T	[AGU]	08.1997-06.2005
VW	Golf IV 1.8 T	[AQA]	05.1998-04.2000
VW	Golf IV 1.8 T	[ARZ]	05.2000-06.2006
VW	Golf IV 1.8 T	[ARZ]	08.1997-06.2005
VW	Golf IV 1.8 T	[AUM]	08.1997-06.2005
VW	Golf IV 1.8 T	[AUM]	09.2000-06.2006
VW	Golf IV 1.8 T	[AWD]	05.2000-07.2001
VW	Golf IV 1.8 T	[AWW]	08.1997-06.2005
VW	Golf IV 1.8 T GTi	[AUQ]	08.2001-06.2005
VW	Golf IV 1.8 T GTi	[AWP]	08.2001-06.2005
VW	Golf IV 1.9 TDi	[ATD]	09.2000-06.2005
VW	Golf IV 1.9 TDi	[AXR]	09.2000-06.2005
VW	Golf IV 1.9 TDi	[BEW]	09.2000-06.2005
VW	Golf IV 1.9 TDi 4motion	[ATD]	09.2000-06.2005
VW	Golf IV 1.9 TDi 4motion	[ATD]	09.2000-06.2006
VW	Golf IV 2.0	[AEG]	07.1998-05.2004
VW	Golf IV 2.0	[APK]	05.1999-06.2006
VW	Golf IV 2.0	[APK]	08.1998-05.2004
VW	Golf IV 2.0	[AQY]	05.1999-06.2006
VW	Golf IV 2.0	[AQY]	07.1998-05.2004
VW	Golf IV 2.0	[AVH]	07.1998-05.2004
VW	Golf IV 2.0	[AZG]	07.1998-05.2004
VW	Golf IV 2.0	[AZJ]	05.1999-06.2006
VW	Golf IV 2.0	[AZJ]	07.1998-05.2004
VW	Golf IV 2.0	[BER]	07.1998-05.2004
VW	Golf IV 2.0	[BEV]	07.1998-05.2004
VW	Golf IV 2.0 4motion	[AZH]	10.2000-06.2005
VW	Golf IV 2.0 4motion	[AZH]	10.2000-06.2006
VW	Golf IV 2.0 4motion	[AZJ]	10.2000-06.2005
VW	Golf IV 2.0 4motion	[AZJ]	10.2000-06.2006
VW	Golf IV 2.0 Bi-Fuel	[BEH]	02.2002-06.2006
VW	Golf V 1.6	[BGU]	01.2004-11.2008
VW	Golf V 1.6	[BSE]	01.2004-11.2008
VW	Golf V 1.6	[BSF]	01.2004-11.2008
VW	Golf V 1.6	[CCSA]	01.2004-11.2008
VW	LT 28-35 2.5 SDi	[AGX]	07.1996-07.2006
VW	LT 28-35 2.5 TDi	[AHD]	05.1996-08.1999
VW	LT 28-35 2.5 TDi	[ANJ]	05.1999-07.2006
VW	LT 28-35 2.5 TDi	[APA]	05.1999-07.2006
VW	LT 28-35 2.5 TDi	[AVR]	05.1999-07.2006
VW	LT 28-35 2.5 TDi	[BBE]	05.2001-07.2006
VW	LT 28-35 2.5 TDi	[BBF]	05.2001-07.2006
VW	LT 28-35 2.8 TDi	[AUH]	05.2001-06.2006
VW	LT 28-35 2.8 TDi	[BCQ]	05.2001-06.2006
VW	LT 28-46 2.5 SDi	[AGX]	09.1996-07.2006
VW	LT 28-46 2.5 TDi	[AHD]	05.1996-08.1999
VW	LT 28-46 2.5 TDi	[AHD]	06.1996-08.1999
VW	LT 28-46 2.5 TDi	[ANJ]	05.1999-07.2006
VW	LT 28-46 2.5 TDi	[APA]	05.1999-07.2006
VW	LT 28-46 2.5 TDi	[AVR]	05.1999-07.2006
VW	LT 28-46 2.5 TDi	[BBE]	05.2001-07.2006
VW	LT 28-46 2.5 TDi	[BBF]	05.2001-07.2006
VW	LT 28-46 2.8 TDi	[AGK]	07.1997-01.2002
VW	LT 28-46 2.8 TDi	[ATA]	01.1999-07.2006
VW	LT 28-46 2.8 TDi	[AUH]	04.2002-07.2006
VW	LT 28-46 2.8 TDi	[BCQ]	04.2002-07.2006
VW	Lupo 1.6 GTi	[AVY]	09.2000-07.2005
VW	Multivan 2.0	[AXA]	11.2003-08.2015
VW	New Beetle 1.4	[BCA]	01.2003-09.2010
VW	New Beetle 1.4	[BCA]	11.2001-09.2010
VW	New Beetle 1.6	[AWH]	10.1999-09.2000
VW	New Beetle 1.6	[AYD]	06.2000-09.2010
VW	New Beetle 1.6	[BFS]	01.2003-09.2010
VW	New Beetle 1.6	[BFS]	06.2000-09.2010
VW	New Beetle 1.8 T	[AGU]	10.1999-09.2010
VW	New Beetle 1.8 T	[APH]	10.1999-06.2000
VW	New Beetle 1.8 T	[AVC]	06.2000-10.2000
VW	New Beetle 1.8 T	[AWU]	01.2003-09.2010
VW	New Beetle 1.8 T	[AWU]	10.2000-09.2010
VW	New Beetle 1.8 T	[AWV]	01.2003-09.2010
VW	New Beetle 1.8 T	[AWV]	06.2000-09.2010
VW	New Beetle 1.8 T	[BKF]	01.2003-09.2010
VW	New Beetle 1.8 T	[BKF]	10.1999-09.2010
VW	New Beetle 2.0	[AEG]	01.1998-09.2010
VW	New Beetle 2.0	[APK]	03.2000-09.2010
VW	New Beetle 2.0	[AQY]	01.1998-09.2010
VW	New Beetle 2.0	[AZG]	01.1998-09.2010
VW	New Beetle 2.0	[AZJ]	01.1998-09.2010
VW	New Beetle 2.0	[AZJ]	09.2002-10.2010
VW	New Beetle 2.0	[BDC]	09.2002-10.2010
VW	New Beetle 2.0	[BER]	01.1998-09.2010
VW	New Beetle 2.0	[BEV]	09.2002-10.2010
VW	New Beetle 2.0	[BGD]	09.2002-10.2010
VW	New Beetle 2.5	[BPR]	07.2005-09.2010
VW	New Beetle 2.5	[BPS]	07.2005-09.2010
VW	New Beetle 3.2 RSi 4motion	[AXJ]	04.2000-05.2001
VW	Polo 1.4 TDi	[AMF]	10.2001-06.2005
VW	Polo 1.4 TDi	[BAY]	10.2001-06.2005
VW	Polo 1.6	[AEH]	09.1997-09.2001
VW	Polo 1.6	[AFT]	05.1997-09.2001
VW	Polo 1.6	[AKL]	08.1997-09.2001
VW	Polo 1.6	[APF]	05.1997-09.2001
VW	Polo 1.6	[AUR]	05.2000-09.2001
VW	Polo 1.8 GTi	[BJX]	09.2005-11.2009
VW	Polo 1.8 GTi Cup Edition	[BBU]	05.2006-11.2009
VW	Polo 1.9 SDi	[ASY]	11.2003-04.2012
VW	Touran 1.6	[BGU]	07.2003-05.2010
VW	Touran 1.6	[BSE]	07.2003-05.2010
VW	Touran 1.6	[BSF]	07.2003-05.2010
VW	Transporter 2.0	[AXA]	11.2003-05.2013
VW	Transporter 2.0	[AXA]	11.2003-08.2015
VW	Transporter 2.4 D	[AJA]	08.1997-04.2003
VW	Transporter 2.5	[AAF]	11.1990-12.1993
VW	Transporter 2.5	[ACU]	01.1994-08.1996
VW	Transporter 2.5	[ACU]	09.1990-06.2003
VW	Transporter 2.5	[AEN]	09.1990-06.2003
VW	Transporter 2.5	[AEN]	11.1990-04.2003
VW	Transporter 2.5	[AET]	08.1996-04.2003
VW	Transporter 2.5	[AEU]	09.1990-06.2003
VW	Transporter 2.5	[AEU]	11.1990-04.2003
VW	Transporter 2.5	[APL]	05.1999-04.2003
VW	Transporter 2.5	[AVT]	08.1996-04.2003
VW	Transporter 2.5 Syncro	[AAF]	08.1992-12.1993
VW	Transporter 2.5 Syncro	[AAF]	11.1992-12.1993
VW	Transporter 2.5 Syncro	[ACU]	01.1994-04.2003
VW	Transporter 2.5 Syncro	[ACU]	01.1994-10.1996
VW	Transporter 2.5 Syncro	[ACU]	01.1996-10.1996
VW	Transporter 2.5 Syncro	[AET]	08.1996-04.2003
VW	Transporter 2.5 Syncro	[AEU]	06.1997-11.2001
VW	Transporter 2.5 Syncro	[AEU]	08.1992-04.2003
VW	Transporter 2.5 Syncro	[APL]	05.1999-04.2003
VW	Transporter 2.5 Syncro	[AVT]	07.1996-04.2003
VW	Transporter 2.5 Syncro	[AVT]	08.1996-04.2003
VW	Transporter 2.5 TDi	[ACV]	09.1995-04.2003
VW	Transporter 2.5 TDi	[AHY]	05.1998-04.2003
VW	Transporter 2.5 TDi	[AHY]	09.2000-04.2003
VW	Transporter 2.5 TDi	[AJT]	05.1998-04.2003
VW	Transporter 2.5 TDi	[AJT]	12.1998-04.2003
VW	Transporter 2.5 TDi	[AUF]	09.1995-04.2003
VW	Transporter 2.5 TDi	[AXG]	05.1998-04.2003
VW	Transporter 2.5 TDi	[AXG]	09.2000-04.2003
VW	Transporter 2.5 TDi	[AYC]	09.1995-04.2003
VW	Transporter 2.5 TDi	[AYY]	05.1998-04.2003
VW	Transporter 2.5 TDi	[AYY]	12.1998-04.2003
VW	Transporter 2.5 TDi Syncro	[ACV]	01.1996-04.2003
VW	Transporter 2.5 TDi Syncro	[ACV]	05.1998-04.2003
VW	Transporter 2.5 TDi Syncro	[ACV]	09.1995-04.2003
VW	Transporter 2.5 TDi Syncro	[AXL]	01.1996-04.2003
VW	Transporter 2.5 TDi Syncro	[AXL]	05.1998-04.2003
VW	Transporter 2.5 TDi Syncro	[AXL]	09.1995-04.2003

Reference Information

8EL012426-831 13852N-6G CA1512IR 4969 STX100019 038903018X 6A903026AX SG9B049 038903018P 8EL737554-001 439311 38903018AX ALTE138 CA1378IR 113887 0124325074 2543328 0124325070 038903018A 2543320 06B903018HX 0986046100 28903028DX 38903018A SG9B059 SG9B055 2010114.0 2010114.1 036903028AX 441525 F000BL04DG 037903026CX 2542241A F000BL04DE 2542241C DRB1500N 2542241B 2542241E 746129 AAK5544 DRB1500 943355061010 210447 210203 036903028A 012402A2LB 6A903023X 305.517.090.215 6A903023 6A903026 305.519.090.010 ALT3280 439442 A12BH0399A2 210231 030903023MX 301378RIV 301378RIR 06B903018KX 2542260 06A903026A SG9B088 SG9B087 036903026B SG9B095 437316 036903026C 20101411OE 063731378010 6B903018HX 030903029A 8EL737771-001 305.517.090.010 DA4916N DA4916 2542241 9517213 13946N 037903025FX 305.517.090.004 06A903023X CAL15419GS PRAL115 160-32100 ALTL057 ALT0417 ALT10286 305.517.090.260 038903028D 0986044380 2543320A 030903023JX 06A903026AX 38903023AX 305.519.090.211 20179914OE 6.3049.9 038903023A 038903023AX 30903023J 38903023A 2543393 30903023N 301378RI 305.519.090.500 0986041500 028903028D 045903026C DB2610 UD04088(SEG)A CGB-13500 305.517.090.280 DB2610N CAL10114AS 20101411BN 111989 28903028D A13VI181 437401 30903023MX ALT00791 90-15-6333N ALT79320 210045 MAR5561 437419 PRAE138 063533490010 LRB486 6B903018KX 038903018AX 200014 11.203.313 89212929 2015419.1 030903023J 06A903023 06A903026 ALT1262 038903018RX 030903023M 030903023N 943313781010 301512RI L030903023J IA1147 28-2979 115482 DRA3806N PRAL057 305.517.090.500 305.517.090.505 8EL011710-311 0124325032 01240AA2LB ALB1378 441659 021903025J 72735555 439461 6A903026A SG9B018 AAL1445 13852R SG9B013 ALTL115 RAA22611 13852N 210632 037903025F MRA41500 746042 LRB00486 AEA4286 028903028DX 0124325140 2542767 746842 5510012 CGB-82979 0124325135 DRA3806 0124325137 0124325011 MG556 89213656 036903018AX CAL10114GS 30903023JX 32041500 90-15-6333 2543328B 944390415000 037903026C 2542260A ALT1105 ALT00895 NEA4286 36903028A A-6385 NPANAL1445 0124325003

Video/Publications

A0979(SEG)
