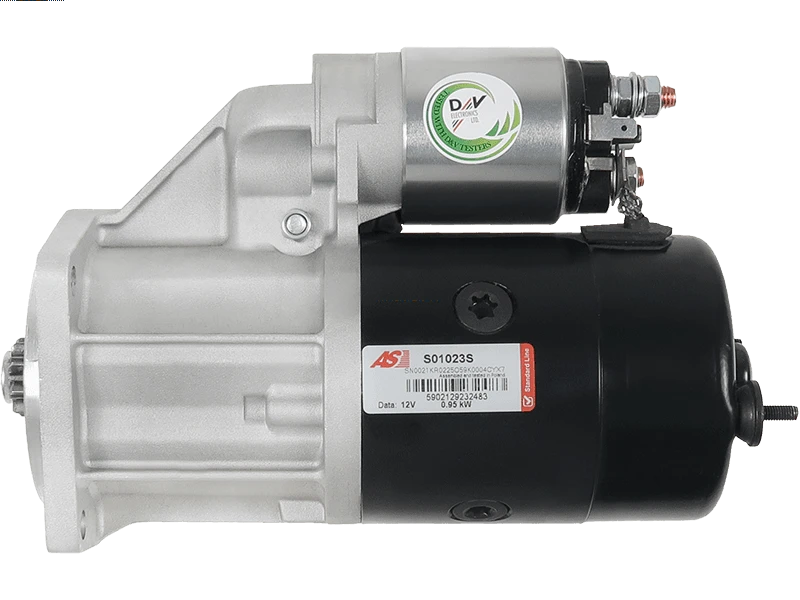

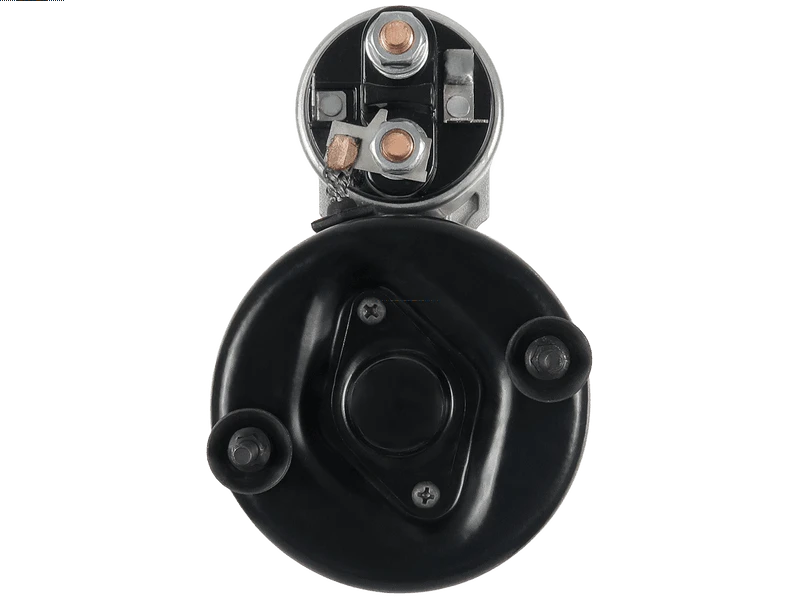

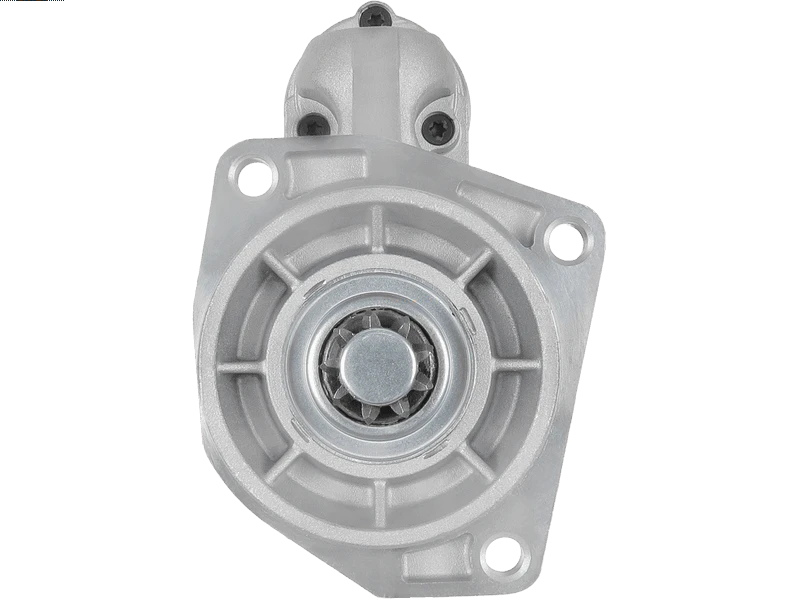

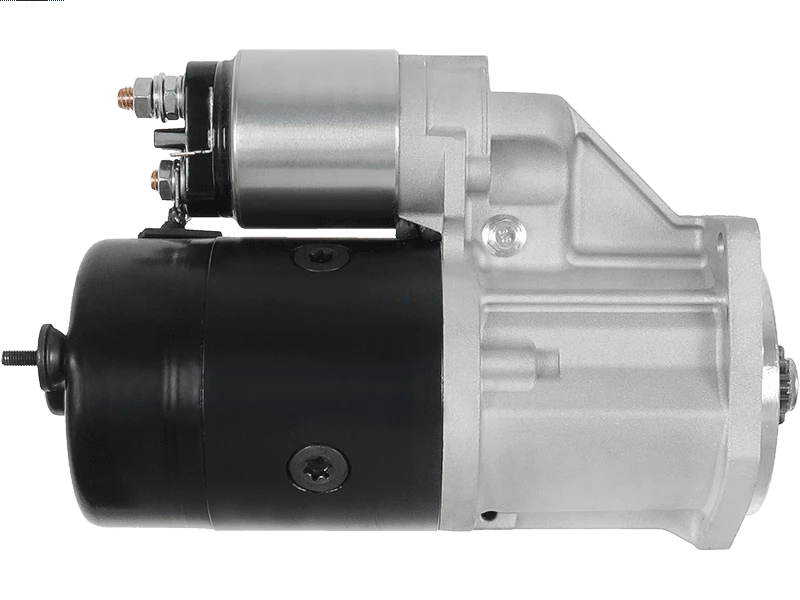

S01023S - Brand new AS-PL Starter motor

Specifications

Kilowatt	0.95 kW
Length (L.1)	243 mm
Mount Hole Center - Center (O.1)	73 mm
Mount Hole Center - Center (O.2)	104 mm
Mount Hole Center - Center (O.3)	74 mm
Mount Hole Diameter (C.1)	8.5 mm
Mount Hole Diameter (C.2)	8.5 mm
Mount Hole Diameter (C.3)	9 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
OEM Product	No
Pinion at Rest (B)	16 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
VW	Caddy 1.8	[JH]	08.1985-07.1992
VW	Golf I 1.8	[EX]	08.1983-09.1992
VW	Golf I 1.8	[JH]	08.1983-04.1993
VW	Golf II 1.8 GTi	[RD]	08.1985-10.1987
VW	Golf II 1.8 i Cat	[GX]	08.1987-10.1991
VW	Golf II 1.8 i Cat	[RP]	08.1987-10.1991
VW	Golf II 1.8 i Cat Syncro	[GX]	08.1987-10.1991
VW	Golf II 1.8 i Cat Syncro	[RP]	08.1987-10.1991
VW	Jetta 1.8	[RD]	08.1985-10.1987
VW	Jetta 1.8 Cat	[GX]	08.1987-10.1991
VW	Jetta 1.8 Cat	[RP]	08.1987-10.1991
VW	Jetta 1.8 Syncro	[GU]	08.1987-12.1988
VW	Jetta 1.8 Syncro	[GX]	08.1987-12.1988
VW	Jetta 1.8 Syncro	[RP]	08.1987-12.1988
VW	Scirocco 1.6	[FT]	08.1975-07.1977
VW	Scirocco 1.8	[EX]	08.1983-07.1992

Reference Information

8013380 0001212400 0001212401 103199 26-1212 0001212206 S100587 3581 IR8484 ANM15600 ST02340 311138092 26-1212CT LRS682 011-001-000524R VW9018 88212795 A13380 2S0218R V10-12-10570 91-15-6919 300.016.093.010 STR1000 027911023X 0986013380 11013380 STB0392 255ST11 UD90810S 42013380 66925137 LRS00682 QRS1676 11255 455679 10392R 9007042015 STR50122
