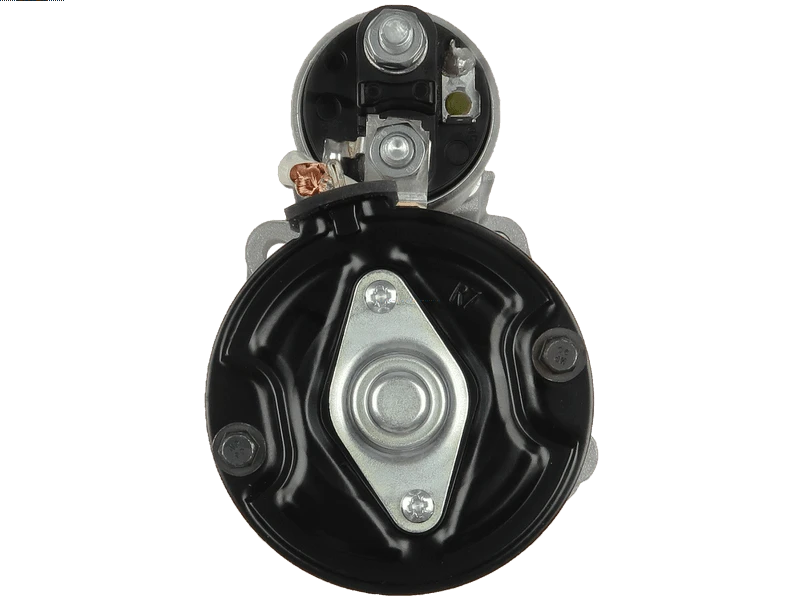

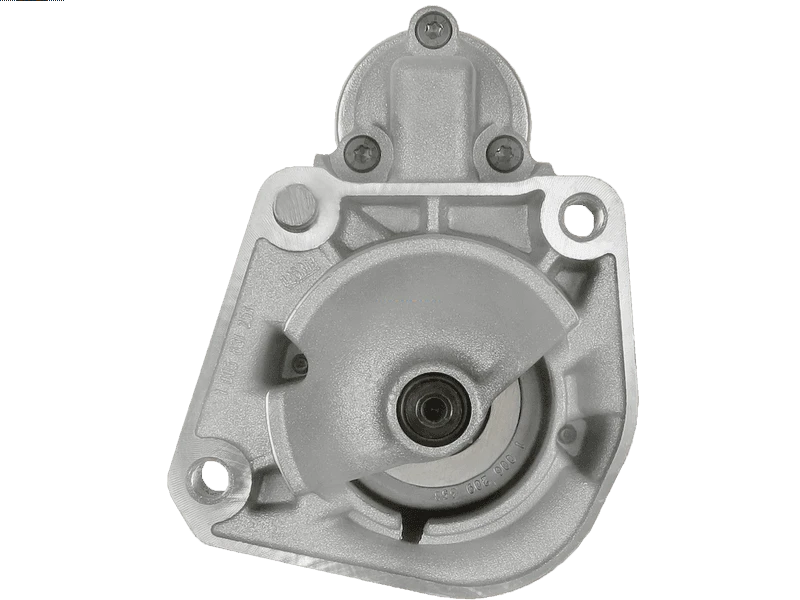

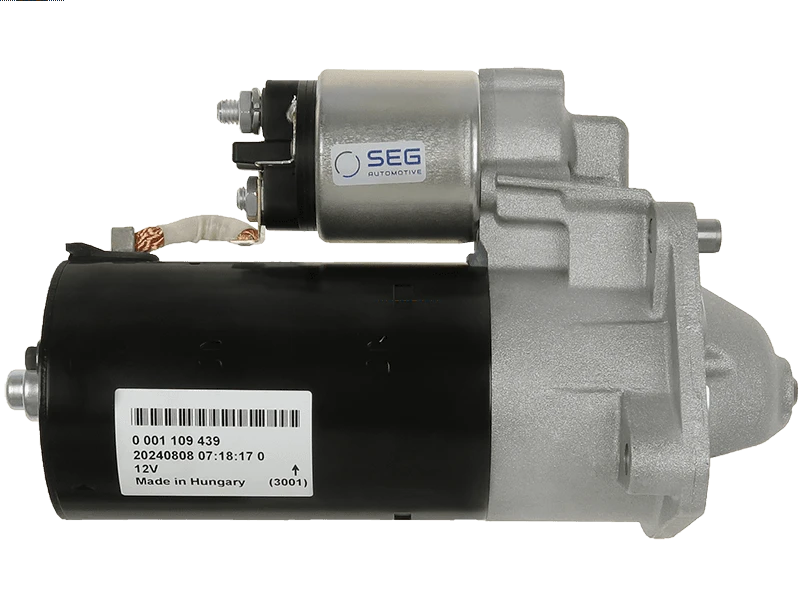

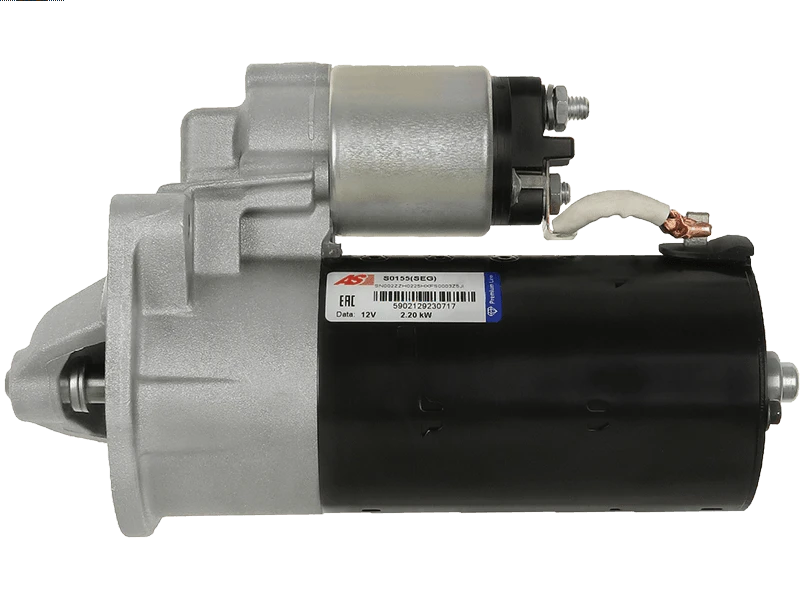

Brand new OEM SEG Starter motor
PREMIUM LINE
SEG
BOSCH
Price:
NZ$ 599.61 including GST
NZ$ 521.40 excluding GST
or four payments of $149.90
with
Learn More
each
S0155(SEG)
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
0001109439Specifications
| Kilowatt | 2.2 kW |
| Length (L.1) | 239 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 0 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | C30 2.4 D5 | [D5244T13] | 10.2006-12.2012 |
| VOLVO | C30 2.4 D5 | [D5244T8] | 10.2006-12.2012 |
| VOLVO | C30 2.4 D5 | [D5244T9] | 10.2006-12.2012 |
| VOLVO | C70 2.4 | [D5244T9] | 03.2007-06.2013 |
| VOLVO | C70 2.4 D5 | [D5244T13] | 03.2006-06.2013 |
| VOLVO | C70 2.4 D5 | [D5244T8] | 03.2006-06.2013 |
| VOLVO | S40 2.4 | [D5244T13] | 03.2006-12.2010 |
| VOLVO | S40 2.4 | [D5244T8] | 03.2006-12.2010 |
| VOLVO | S40 2.4 CDi | [D5244T9] | 03.2007-12.2010 |
| VOLVO | S60 2.4 | [D5244T] | 01.2001-04.2010 |
| VOLVO | S60 2.4 | [D5244T2] | 05.2001-04.2010 |
| VOLVO | S60 2.4 | [D5244T23] | 04.2014-12.2015 |
| VOLVO | S60 2.4 | [D5244T5] | 07.2005-12.2009 |
| VOLVO | S60 2.4 CDi | [D5244T3] | 10.2003-12.2005 |
| VOLVO | S60 2.4 D5 AWD | [D5244T23] | 04.2014-12.2015 |
| VOLVO | S80 2.0 | [D5204T7] | 05.2012- |
| VOLVO | S80 2.0 D3 | [D5204T2] | 01.2010- |
| VOLVO | S80 2.0 D3 | [D5204T3] | 01.2010- |
| VOLVO | S80 2.4 | [D5244T] | 03.2006- |
| VOLVO | S80 2.4 | [D5244T5] | 03.2006- |
| VOLVO | S80 2.4 D5 | [D5244T] | 08.2001-07.2006 |
| VOLVO | S80 2.4 D5 | [D5244T10] | 01.2010- |
| VOLVO | S80 2.4 D5 | [D5244T11] | 06.2011- |
| VOLVO | S80 2.4 D5 | [D5244T15] | 06.2011- |
| VOLVO | S80 2.4 D5 | [D5244T4] | 03.2006- |
| VOLVO | S80 2.4 D5 AWD | [D5244T10] | 01.2010- |
| VOLVO | S80 2.4 D5 AWD | [D5244T15] | 06.2011- |
| VOLVO | V50 2.4 | [D5244T13] | 03.2006-12.2010 |
| VOLVO | V50 2.4 | [D5244T8] | 03.2006-12.2010 |
| VOLVO | V60 2.4 D4 AWD | [D5244T21] | 03.2015- |
| VOLVO | V70 2.0 | [D5204T7] | 10.2007-12.2015 |
| VOLVO | V70 2.0 D3 Drive | [D5204T7] | 09.2013- |
| VOLVO | V70 2.0 D5 AWD | [D5204T2] | 03.2010-12.2015 |
| VOLVO | V70 2.0 D5 AWD | [D5204T3] | 03.2010-12.2015 |
| VOLVO | V70 2.4 | [D5244T14] | 04.2009-12.2010 |
| VOLVO | V70 2.4 4x4 | [D5244T17] | 10.2007-12.2015 |
| VOLVO | V70 2.4 AWD | [D5244T12] | 10.2013- |
| VOLVO | V70 2.4 D4 AWD | 09.2013- | |
| VOLVO | V70 2.4 D5 | [D5244T] | 01.2001-12.2008 |
| VOLVO | V70 2.4 D5 | [D5244T11] | 04.2011-12.2015 |
| VOLVO | V70 2.4 D5 | [D5244T11] | 09.2013- |
| VOLVO | V70 2.4 D5 | [D5244T15] | 04.2011-12.2015 |
| VOLVO | V70 2.4 D5 | [D5244T15] | 09.2013- |
| VOLVO | V70 2.4 D5 | [D5244T5] | 01.2001-12.2008 |
| VOLVO | V70 2.4 D5 AWD | [D5244T11] | 04.2011-12.2015 |
| VOLVO | V70 2.4 D5 AWD | [D5244T15] | 04.2011-12.2015 |
| VOLVO | XC60 2.0 | [D5204T7] | 04.2012-12.2015 |
| VOLVO | XC60 2.4 | [D5244T11] | 06.2011-02.2017 |
| VOLVO | XC60 2.4 | [D5244T16] | 05.2008-02.2017 |
| VOLVO | XC60 2.4 | [D5244T17] | 05.2008-02.2017 |
| VOLVO | XC60 2.4 | [D5244T5] | 05.2008-02.2017 |
| VOLVO | XC60 2.4 AWD | [D5244T12] | 10.2013-12.2015 |
| VOLVO | XC60 2.4 D4 AWD | [D5244T21] | 03.2015-02.2017 |
| VOLVO | XC60 2.4 D5 AWD | [D5244T10] | 07.2009-06.2011 |
| VOLVO | XC60 2.4 D5 AWD | [D5244T11] | 04.2011-12.2015 |
| VOLVO | XC60 2.4 D5 AWD | [D5244T15] | 04.2011-12.2015 |
| VOLVO | XC60 2.4 D5 AWD | [D5244T22] | 03.2015-02.2017 |
| VOLVO | XC60 2.4 D5 AWD | [D5244T23] | 04.2014-12.2015 |
| VOLVO | XC60 2.4 DRIVe | [D5244T14] | 04.2009-12.2010 |
| VOLVO | XC70 2.0 | [D5204T2] | 04.2010-12.2015 |
| VOLVO | XC70 2.0 | [D5204T3] | 04.2010-12.2015 |
| VOLVO | XC70 2.4 AWD | [D5244T12] | 10.2013- |
| VOLVO | XC70 2.4 AWD | [D5244T16] | 08.2007- |
| VOLVO | XC70 2.4 AWD | [D5244T17] | 08.2007- |
| VOLVO | XC70 2.4 AWD | [D5244T5] | 08.2007- |
| VOLVO | XC70 2.4 D5 AWD | [D5244T15] | 04.2011-12.2015 |
| VOLVO | XC90 2.4 | [D5244T] | 10.2002-12.2006 |
| VOLVO | XC90 2.4 | [D5244T5] | 10.2002-12.2006 |
| VOLVO | XC90 2.4 D5 | [D5244T18] | 01.2011-12.2014 |
| VOLVO | XC90 2.4 D5 AWD | [D5244T5] | 10.2007-12.2010 |
Reference Information
9496882 101271 810.518.093.280 STRL633B 8603539 CST10253GS MAV122530A ANM11130X 10010253OV STB1271 30782228 88213071 NPANSM1051 25-3168 32638N 944280189100 20401352OE 0001109252 STR50373 SBO253 36000237 STM1077 SEG0001109439 20401352BN MSN2141 6010253.1 CGB-53168 6010253.0 6.7067.1 DRS8910 STA0385R 8602355 AI-80138 STX200118R S12BH0198 LRS1638 3803646 063521092520 STX200118 1986S00752 ASM1051 PRSL633B STRL633NE CST10253AS 220813 12130 AC-CBS1271 MAV122530 PRSL633 AEY1638 810.518.093.215 810.518.093.775 6G9N-11000-KB 36050272 CS1271 30782052 BX1891 10010253AV UD03944(SEG)S 810.518.093.010 5010208 8EA738056-001 810.518.093.210 AZMT-53-010-1361 458732 36050276 SKSTR-0330100 0001109439 8602818 0986018910 0986018913 42006000 113303 SBO253A 3125540 RAS39021 3125541 0001109252-R 30658567 MRS18910 101271B 30724473 120-10219 331396 36002642 STRL633 STR1361 8EA012526-161 LRS01638 WG2013378 DS0020 S12BH0198A2Video/Publications
