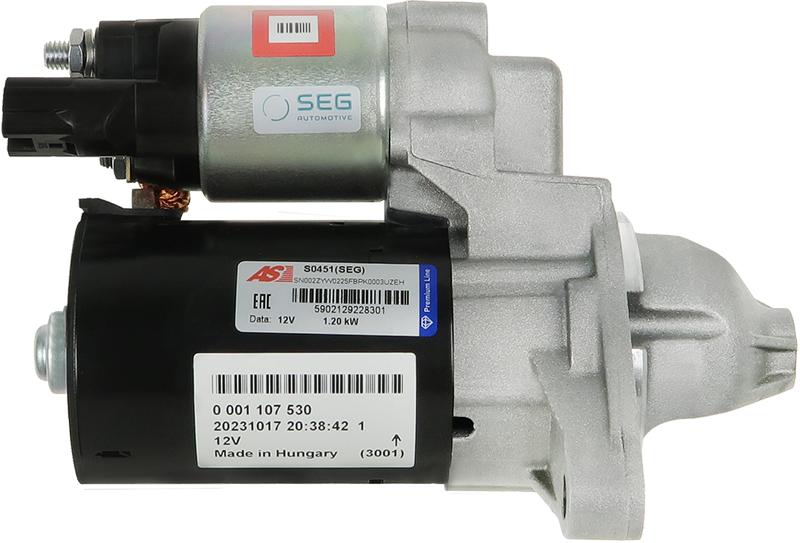

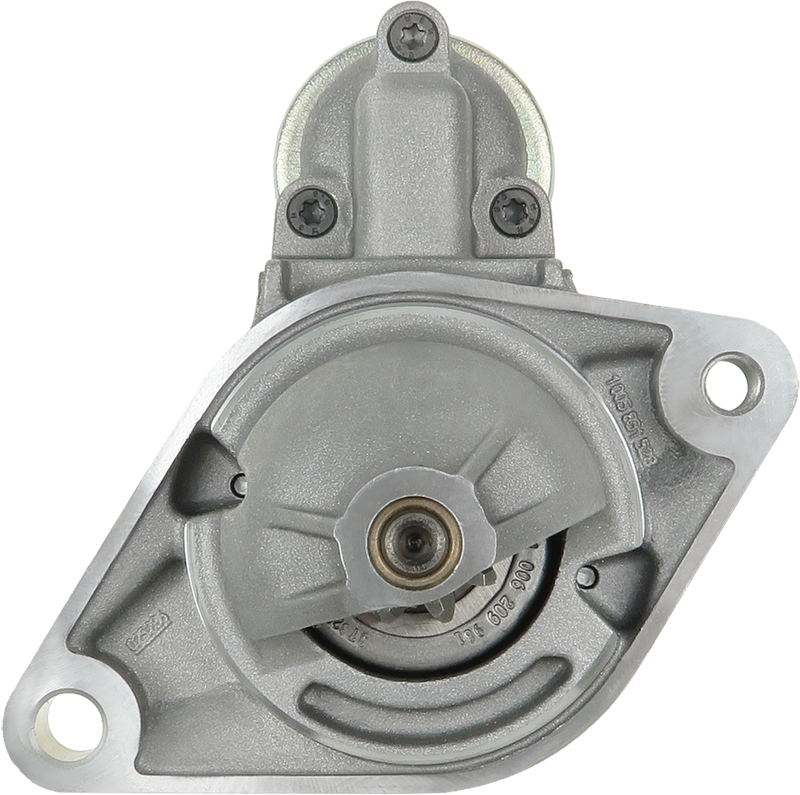

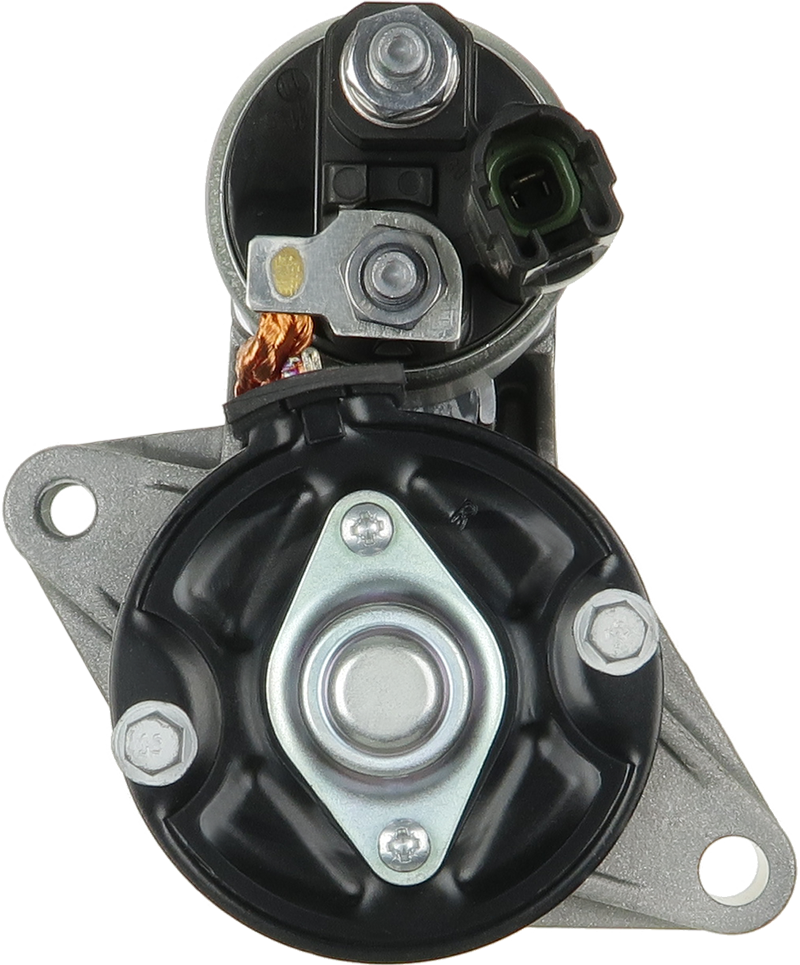

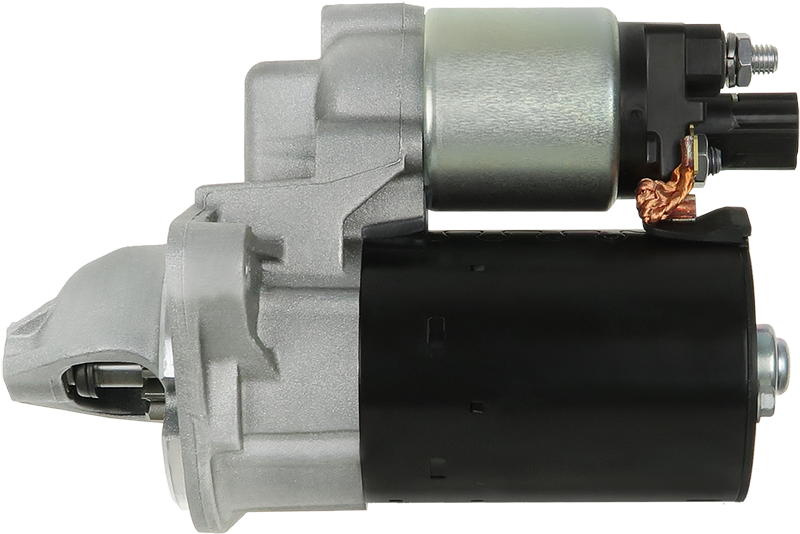

Brand new OEM SEG Starter motor
PREMIUM LINE
SEG
BOSCH
Price:
NZ$ 437.36 including GST
NZ$ 380.31 excluding GST
or four payments of $109.34
with
Learn More
each
S0451(SEG)
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001107530Associated Numbers
16-107 16-107G
Specifications
| Kilowatt | 1.2 kW |
| Length (L.1) | 203 mm |
| Mount Hole Center - Center (O.1) | 122 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 15 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Avensis Estate 1.6 | [1ZR-FAE] | 02.2009- |
| TOYOTA | Avensis Estate 1.8 | [2ZR-FAE] | 02.2009- |
| TOYOTA | Avensis Estate 2.0 | [3ZR-FAE] | 02.2009- |
| TOYOTA | Avensis Estate 2.0 | [3ZR-FE] | 02.2009- |
| TOYOTA | Avensis Saloon 1.6 | [1ZR-FAE] | 11.2008- |
| TOYOTA | Avensis Saloon 1.8 | [2ZR-FAE] | 11.2008- |
| TOYOTA | Avensis Saloon 2.0 | [3ZR-FAE] | 11.2008- |
| TOYOTA | Avensis Saloon 2.0 | [3ZR-FE] | 11.2008- |
| TOYOTA | Verso 1.6 | [1ZR-FAE] | 04.2009- |
| TOYOTA | Verso 1.8 | [2ZR-FAE] | 04.2009- |
Reference Information
UD03923(SEG)S TT16541 H5010369 22.1450 STR1694 8214085 PRSS603 335225092 28100-0T030-F A70-12-21530 ST01585 28100-0T060 428000-9020 LRS02390 20401934OE SG1079 28100-0T030-84 0001107449 0001107448 BOS0001107530 F042S00275 28100-0T030 220654 F032114886 190.900.092.010 8EA012528-861 J5212131 BST2607 S12BH0168A2 STX201059 28100-0T03000 NPANSM1200 T521A138 IR8853 11040701 DENDSN947 ANM23750X H5010369G 446528 25-4062 NEY2390 MSN8074 AEY2390 WG2013210 90E2007-JPN 8EA738258-811 101450D 88214085 28100-0T010 336508 AC-CBS1450 CS1450 1986S00688 S12BH0168 428000-5830 428000-5833 QRS2478 428000-5832 458793 428000-5831 25-4062CT 0986021530 106375 28100-37031 0001107531 28100-37032 0001107530 8021530 28100-37030 STRS603 RNL2153 6010439.1 803-17191 STR50284 3113903 3113902 STM1323 DSN947 28100-37020 28100-37021 101450 WOOSTR50284 33291N 114886 STB1450 8550504922 DRT1530 190.900.092.210 10439643 A21530 210ST21 DRS0674 LRS2390 STN1450 ASM1200 CST10439GS 12210 28100-0T030-C TO9069 9733 10040551OV 5010369G 600000170170 190.900.092.461 4745003 063280074010Video/Publications
