Specifications
| Kilowatt | 8.4 kW |
| Length (L.1) | 64 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| Mount Hole Diameter (C.3) | 13.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |

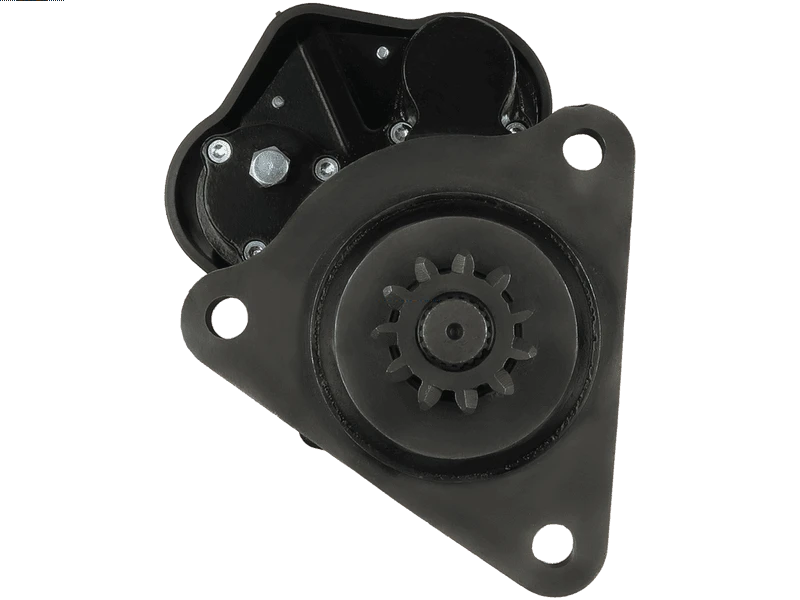

| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LIEBHERR | D9508 | ||
| LIEBHERR | D9512 | ||
| LIEBHERR | R9150 | ||
| LIEBHERR | R964C | ||
| LIEBHERR | R966 | ||
| LIEBHERR | R970 | ||
| LIEBHERR | R974C | ||
| LIEBHERR | R976 | ||
| LIEBHERR | R980 |
Reference Information
UD30211S 106985 120-34003 STB4034 331698 6010827.1 EAA-124038 20401728OE BOS0001340503 0001340503 A93030 661.502.113.010 10010827OV CST10827GS 255819 255819B 10120541 STR10296 STRJ353Video/Publications
