Price:
NZ$ 1,982.07 including GST
NZ$ 1,723.54 excluding GST
or four payments of $495.52
with
Learn More
each
S01026S
No stock in NZ
No stock in NZ

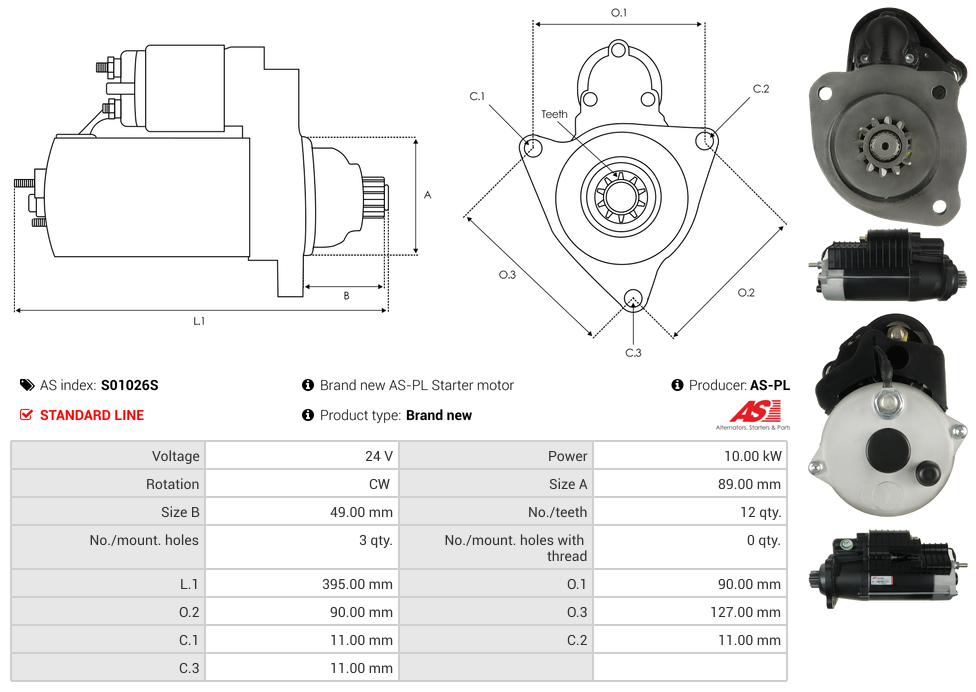

Specifications
| Kilowatt | 10 kW |
| Length (L.1) | 395 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| Pinion at Rest (B) | 49 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MWM | Various Models |
Reference Information
UD30198S MAV128190 STRJ208 6010819.1 0001350018 0001350019 MAV12819 12344169 20401918OE 255966B 10010819OV CST10819GS 521.601.123.010 BOS0001350019View your shopping basket or Browse other items in Starter Motors.
