Price:
NZ$ 679.57 including GST
NZ$ 590.93 excluding GST
or four payments of $169.89
with
Learn More
each

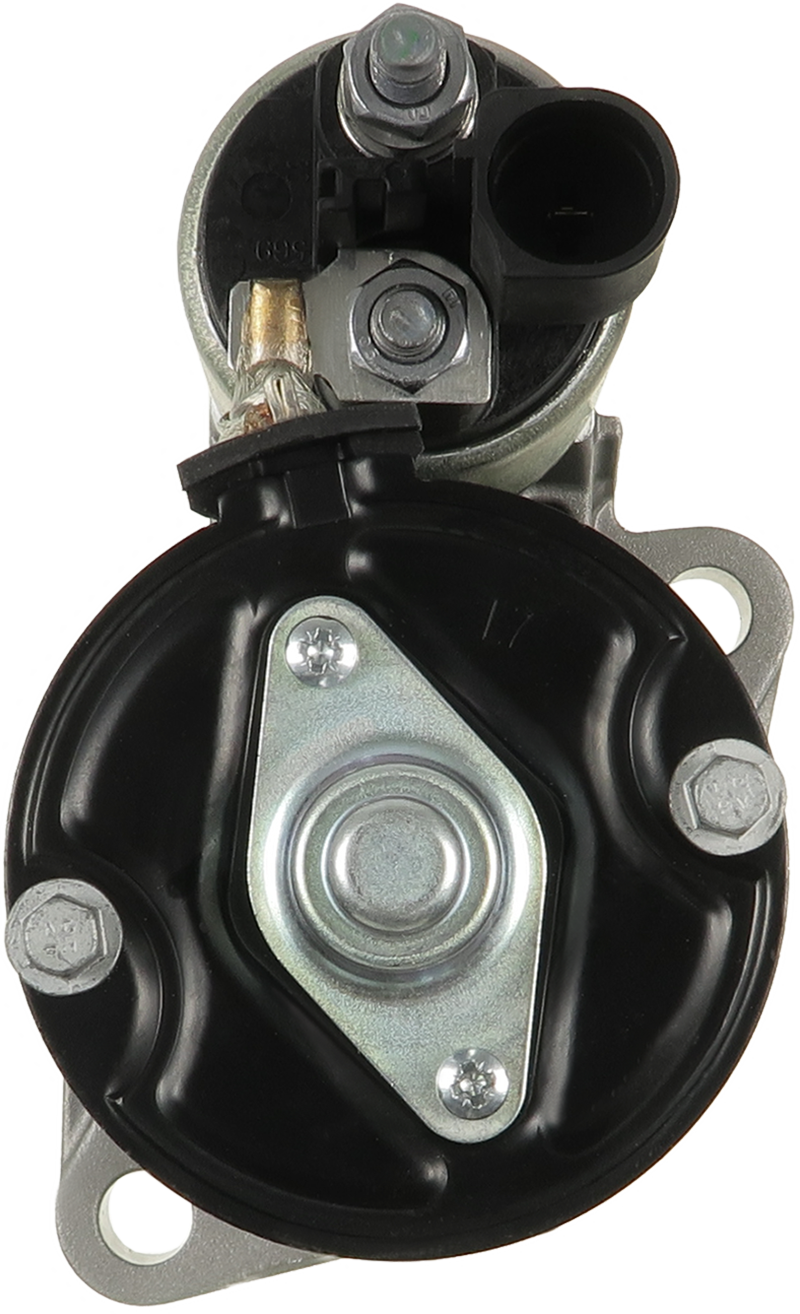

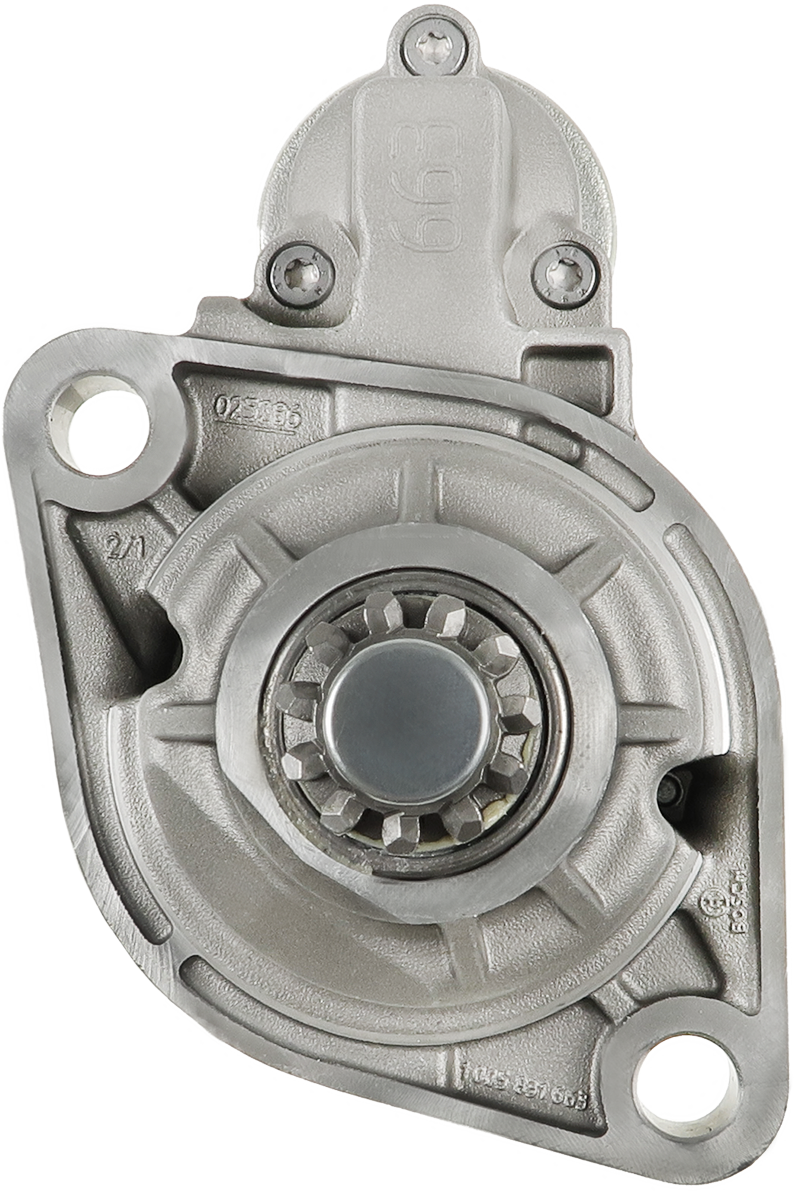

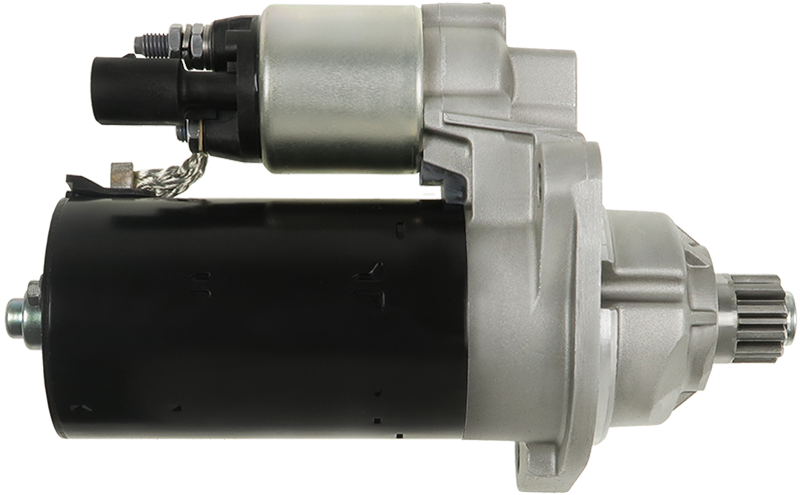

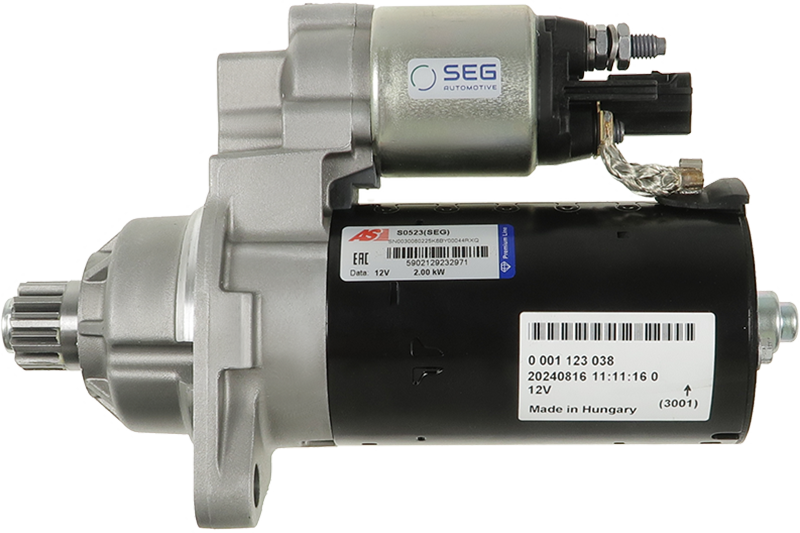

S0523(SEG)
No stock in NZ
No stock in NZ
Specifications
| Kilowatt | 2 kW |
| Length (L.1) | 242 mm |
| Mount Hole Center - Center (O.1) | 111 mm |
| Mount Hole Diameter (C.1) | 12.5 mm |
| Mount Hole Diameter (C.2) | 12.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 10. 11. 12 qty |
| Pinion at Rest (B) | 62 mm |
| Rotation | ACW |
| Spigot Diameter (A) | 76 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A1 2.0 TDi | [CFHB] | 05.2012- |
| AUDI | A1 2.0 TDi | [CFHD] | 09.2011- |
| AUDI | A1 2.0 TDi Sportback | [CFHB] | 05.2012- |
| AUDI | A3 2.0 TDi | [AZV] | 05.2003-08.2012 |
| AUDI | A3 2.0 TDi | [BMM] | 06.2005-06.2008 |
| AUDI | A3 2.0 TDi | [BMN] | 03.2006-08.2012 |
| AUDI | A3 2.0 TDi | [CBAA] | 04.2008-05.2013 |
| AUDI | A3 2.0 TDi | [CBAA] | 05.2003-08.2012 |
| AUDI | A3 2.0 TDi | [CBBB] | 03.2006-08.2012 |
| AUDI | A3 2.0 TDi | [CFFA] | 04.2008-05.2013 |
| AUDI | A3 2.0 TDi | [CFFA] | 05.2003-08.2012 |
| AUDI | A3 2.0 TDi | [CFFB] | 04.2008-05.2013 |
| AUDI | A3 2.0 TDi | [CFGB] | 03.2006-08.2012 |
| AUDI | A3 2.0 TDi 16V | [BKD] | 05.2003-08.2012 |
| AUDI | A3 2.0 TDi 16V | [CFFB] | 11.2009- |
| AUDI | A3 2.0 TDi 16V | [CLJA] | 02.2010- |
| AUDI | A3 2.0 TDi 16V Quattro | [BKD] | 08.2004-08.2012 |
| AUDI | A3 2.0 TDi 16V Quattro | [BKD] | 11.2005-03.2013 |
| AUDI | A3 2.0 TDi 16V Quattro | [CBAB] | 08.2004-08.2012 |
| AUDI | A3 2.0 TDi 16V Quattro | [CBAB] | 11.2005-03.2013 |
| AUDI | A3 2.0 TDi 16V Quattro | [CFFB] | 08.2004-08.2012 |
| AUDI | A3 2.0 TDi 16V Quattro | [CFFB] | 11.2005-03.2013 |
| AUDI | A3 2.0 TDi 16V Sportback | [BKD] | 09.2004-03.2013 |
| AUDI | A3 2.0 TDi 16V Sportback | [CBAB] | 09.2004-03.2013 |
| AUDI | A3 2.0 TDi 16V Sportback | [CFFB] | 09.2004-03.2013 |
| AUDI | A3 2.0 TDi 16V Sportback | [CLJA] | 09.2004-03.2013 |
| AUDI | A3 2.0 TDi Quattro | [AZV] | 05.2003-06.2008 |
| AUDI | A3 2.0 TDi Quattro | [BMM] | 01.2006-06.2008 |
| AUDI | A3 2.0 TDi Quattro | [BMN] | 03.2006-08.2012 |
| AUDI | A3 2.0 TDi Quattro | [CBBB] | 03.2006-08.2012 |
| AUDI | A3 2.0 TDi Quattro | [CFGB] | 03.2006-08.2012 |
| AUDI | A3 2.0 TDi Sportback | [AZV] | 09.2004-03.2013 |
| AUDI | A3 2.0 TDi Sportback | [CBAA] | 09.2004-03.2013 |
| AUDI | A3 2.0 TDi Sportback | [CFFA] | 09.2004-03.2013 |
| AUDI | A3 2.0 TDi Sportback Quattro | [BMM] | 01.2006-06.2008 |
| AUDI | A3 2.0 TDi Sportback Quattro | [BMM] | 06.2005-06.2008 |
| AUDI | A3 2.0 TDi Sportback Quattro | [BMN] | 03.2006-03.2013 |
| AUDI | A3 2.0 TDi Sportback Quattro | [CBBB] | 03.2006-03.2013 |
| AUDI | A3 2.0 TDi Sportback Quattro | [CFGB] | 03.2006-03.2013 |
| AUDI | A3 3.2 Quattro | [BMJ] | 07.2003-05.2009 |
| AUDI | A3 3.2 V6 Quattro | [BDB] | 07.2003-05.2009 |
| AUDI | A3 3.2 V6 Quattro | [BUB] | 07.2003-05.2009 |
| AUDI | A3 3.2 V6 Sportback Quattro | [BMJ] | 09.2004-05.2009 |
| AUDI | A3 3.2 V6 Sportback Quattro | [BUB] | 09.2004-05.2009 |
| AUDI | Q3 2.0 TDi | [CFGC] | 05.2013- |
| AUDI | TT 2.0 TDi Quattro | [CBBB] | 06.2008- |
| AUDI | TT 2.0 TDi Quattro | [CFGB] | 06.2008- |
| AUDI | TT 3.2 V6 Quattro | [BUB] | 03.2007-06.2010 |
| AUDI | TT 3.2 V6 Quattro | [BUB] | 08.2006-06.2010 |
| SEAT | Altea 2.0 TDi | [AZV] | 03.2004- |
| SEAT | Altea 2.0 TDi | [BKD] | 03.2004- |
| SEAT | Altea 2.0 TDi | [BMM] | 11.2005- |
| SEAT | Altea 2.0 TDi | [BMN] | 03.2006- |
| SEAT | Altea XL 2.0 TDi | [BMM] | 10.2006- |
| SEAT | Altea XL 2.0 TDi | [BMN] | 06.2007- |
| SEAT | Altea XL 2.0 TDi | [CEGA] | 06.2007- |
| SEAT | Altea XL 2.0 TDi 16V | [BKD] | 10.2006- |
| SEAT | Altea XL 2.0 TDi 4WD | [BMN] | 06.2007- |
| SEAT | Cordoba 1.9 TDi | [ASZ] | 10.2002- |
| SEAT | Ibiza 1.9 TDi | [ASZ] | 02.2002- |
| SEAT | Ibiza 1.9 TDi | [BXJ] | 07.2008-06.2010 |
| SEAT | Ibiza 2.0 TDi | [CFHD] | 01.2010- |
| SEAT | Ibiza Cupra R 1.9 TDi | [BPX] | 03.2004- |
| SEAT | Ibiza Cupra R 1.9 TDi | [BUK] | 03.2004- |
| SEAT | Ibiza Sportscoupe 2.0 TDi | [CFHD] | 01.2010- |
| SEAT | Leon 2.0 TDi | [BMM] | 10.2005- |
| SEAT | Leon 2.0 TDi | [BMN] | 02.2006- |
| SEAT | Leon 2.0 TDi | [CEGA] | 02.2006- |
| SEAT | Leon 2.0 TDi | [CFJA] | 02.2006- |
| SEAT | Leon 2.0 TDi 16V | [BKD] | 09.2005- |
| SEAT | Leon 2.0 TDi 16V | [CFHC] | 09.2005- |
| SEAT | Leon 2.0 TDi 16V | [CLCB] | 09.2005- |
| SEAT | Toledo 2.0 TDi | [BKD] | 10.2004- |
| SEAT | Toledo 2.0 TDi | [BMN] | 01.2006- |
| SEAT | Toledo 2.0 TDi | [CEGA] | 01.2006- |
| SKODA | Fabia 1.9 TDi RS | [ASZ] | 06.2003-10.2005 |
| SKODA | Octavia 1.9 TDi 4x4 | [BKC] | 11.2004- |
| SKODA | Octavia 2.0 TDi | [BMM] | 11.2005- |
| SKODA | Octavia 2.0 TDi 16V | [BKD] | 06.2004- |
| SKODA | Octavia 2.0 TDi 16V | [BKD] | 08.2004- |
| SKODA | Octavia 2.0 TDi 16V | [CFHC] | 08.2004- |
| SKODA | Octavia 2.0 TDi 16V | [CLCB] | 08.2004- |
| SKODA | Octavia 2.0 TDi 16V 4x4 | [BMM] | 07.2006- |
| SKODA | Octavia 2.0 TDi 4x4 | [CFHC] | 05.2010- |
| SKODA | Octavia 2.0 TDi 4x4 | [CFHF] | 05.2011- |
| SKODA | Roomster 1.6 | [BTS] | 09.2006- |
| SKODA | Superb 2.0 TDi | [BMP] | 07.2008- |
| SKODA | Superb 2.0 TDi | [BMP] | 10.2009- |
| SKODA | Superb 2.0 TDi | [CBBB] | 07.2008- |
| SKODA | Superb 2.0 TDi | [CBBB] | 10.2009- |
| SKODA | Superb 2.0 TDi | [CFFB] | 03.2010- |
| SKODA | Superb 2.0 TDi | [CFGB] | 07.2008- |
| SKODA | Superb 2.0 TDi | [CFGB] | 10.2009- |
| SKODA | Yeti 2.0 TDi | [CFHA] | 11.2009- |
| SKODA | Yeti 2.0 TDi | [CFHC] | 11.2011- |
| SKODA | Yeti 2.0 TDi 4x4 | [CBDB] | 05.2009-11.2009 |
| SKODA | Yeti 2.0 TDi 4x4 | [CEGA] | 11.2009-05.2010 |
| SKODA | Yeti 2.0 TDi 4x4 | [CFHC] | 11.2009- |
| SKODA | Yeti 2.0 TDi 4x4 | [CFHF] | 11.2009- |
| SKODA | Yeti 2.0 TDi 4x4 | [CFJA] | 05.2010- |
| SKODA | Yeti 2.0 TDi 4x4 | [CLCA] | 11.2009- |
| SKODA | Yeti 2.0 TDi 4x4 | [CLCB] | 05.2009-11.2009 |
| VW | Caddy 2.0 TDi | [BMM] | 09.2007-08.2010 |
| VW | Caddy 2.0 TDi | [CFHC] | 05.2015- |
| VW | Caddy 2.0 TDi | [CFHE] | 11.2010- |
| VW | Caddy 2.0 TDi 16V | [CFHC] | 11.2010- |
| VW | Caddy 2.0 TDi 16V 4-Motion | [CFHC] | 11.2010- |
| VW | Caddy 2.0 TDi 4-Motion | [CFHC] | 05.2015- |
| VW | Caddy 2.0 TDi 4-Motion | [CFHE] | 12.2010- |
| VW | Caddy 2.0 TDi 4-Motion | [CFHF] | 05.2015- |
| VW | Caddy 2.0 TDi 4-Motion | [CFHF] | 08.2010- |
| VW | CC 2.0 TDi | [CFFA] | 11.2011- |
| VW | CC 2.0 TDi | [CFFB] | 11.2011- |
| VW | CC 2.0 TDi | [CFGB] | 11.2011- |
| VW | CC 2.0 TDi | [CFGC] | 12.2012- |
| VW | CC 2.0 TDi 4-Motion | [CFFB] | 11.2011- |
| VW | CC 2.0 TDi 4-Motion | [CFGB] | 11.2011- |
| VW | CC 2.0 TDi 4-Motion | [CFGC] | 12.2012- |
| VW | Eos 2.0 TDi | [BMM] | 06.2006- |
| VW | Golf Plus 2.0 TDi | [AZV] | 05.2005- |
| VW | Golf Plus 2.0 TDi | [BMM] | 12.2005- |
| VW | Golf Plus 2.0 TDi | [CBDA] | 05.2005- |
| VW | Golf Plus 2.0 TDi | [CFHB] | 05.2005- |
| VW | Golf V 1.9 TDi | [BKC] | 10.2003- |
| VW | Golf V 1.9 TDi | [BLS] | 10.2003- |
| VW | Golf V 1.9 TDi | [BXE] | 10.2003- |
| VW | Golf V 1.9 TDi 4-Motion | [BKC] | 08.2004- |
| VW | Golf V 1.9 TDi 4-Motion | [BLS] | 08.2004- |
| VW | Golf V 2.0 TDi | [BMM] | 12.2004- |
| VW | Golf V 2.0 TDi | [BMN] | 11.2005- |
| VW | Golf V 2.0 TDi 16V | [BKD] | 01.2005- |
| VW | Golf V 2.0 TDi 16V | [BKD] | 06.2007-07.2009 |
| VW | Golf V 2.0 TDi 16V | [BKD] | 10.2003- |
| VW | Golf V 2.0 TDi 16V 4-Motion | [BKD] | 08.2004- |
| VW | Golf V 2.0 TDi 4-Motion | [BMM] | 08.2004- |
| VW | Golf V 3.2 R32 4-Motion | [BUB] | 11.2005- |
| VW | Golf V 3.2 R32 4-Motion | [CBRA] | 11.2005- |
| VW | Golf VI 2.0 TDi | [BMM] | 07.2009-07.2013 |
| VW | Golf VI 2.0 TDi | [CBBB] | 04.2009-11.2009 |
| VW | Golf VI 2.0 TDi | [CBDB] | 07.2009-07.2013 |
| VW | Golf VI 2.0 TDi | [CFFA] | 11.2009-11.2012 |
| VW | Golf VI 2.0 TDi | [CFGB] | 11.2009-11.2012 |
| VW | Golf VI 2.0 TDi | [CFHC] | 07.2009-07.2013 |
| VW | Golf VI 2.0 TDi | [CJAA] | 07.2009-07.2013 |
| VW | Golf VI 2.0 TDi | [CLCB] | 07.2009-07.2013 |
| VW | Jetta 2.0 TDi | [AZV] | 09.2005- |
| VW | Jetta 2.0 TDi | [BKD] | 08.2005- |
| VW | Jetta 2.0 TDi | [BMM] | 10.2005- |
| VW | Jetta 2.0 TDi | [BMN] | 10.2006- |
| VW | Jetta 2.0 TDi | [CBDA] | 09.2005- |
| VW | Jetta 2.0 TDi | [CEGA] | 10.2006- |
| VW | Jetta 2.0 TDi | [CFFB] | 02.2011- |
| VW | Jetta 2.0 TDi | [CFHC] | 02.2011- |
| VW | Jetta 2.0 TDi | [CJAA] | 02.2011- |
| VW | Jetta 2.0 TDi | [CLCB] | 02.2011- |
| VW | Multivan 2.0 BiTDi 4-Motion | [CFCA] | 09.2009- |
| VW | Multivan 2.0 TDi | [CAAC] | 04.2015- |
| VW | Multivan 2.0 TDi | [CFCA] | 04.2015- |
| VW | Multivan 2.0 TDi 4-Motion | [CAAC] | 06.2015- |
| VW | Multivan 2.0 TSi | [CJKA] | 05.2011- |
| VW | Multivan 2.0 TSi | [CJKB] | 07.2012- |
| VW | Multivan 3.2 4-Motion | [BDL] | 11.2003-06.2006 |
| VW | Multivan 3.2 V6 | [BKK] | 02.2004- |
| VW | Multivan 3.2 V6 | [CFLA] | 02.2004- |
| VW | Multivan 3.2 V6 4-Motion | [BKK] | 07.2004- |
| VW | Multivan 3.2 V6 4-Motion | [CFLA] | 07.2004- |
| VW | New Beetle 2.0 TDi | [CFFB] | 12.2012- |
| VW | New Beetle 2.0 TDi | [CJAA] | 12.2012- |
| VW | Passat 2.0 TDi | [BMA] | 03.2005- |
| VW | Passat 2.0 TDi | [BMP] | 08.2005-05.2009 |
| VW | Passat 2.0 TDi | [BMR] | 08.2005-07.2010 |
| VW | Passat 2.0 TDi | [BMR] | 08.2005-11.2010 |
| VW | Passat 2.0 TDi | [BVD] | 08.2005- |
| VW | Passat 2.0 TDi | [BVE] | 08.2005- |
| VW | Passat 2.0 TDi | [BWV] | 11.2005- |
| VW | Passat 2.0 TDi | [CFFA] | 08.2010- |
| VW | Passat 2.0 TDi | [CFFB] | 01.2012- |
| VW | Passat 2.0 TDi | [CFGC] | 12.2012- |
| VW | Passat 2.0 TDi 16V | [BKP] | 03.2005-07.2010 |
| VW | Passat 2.0 TDi 16V | [BKP] | 08.2005-11.2010 |
| VW | Passat 2.0 TDi 16V 4-Motion | [BKP] | 03.2005-08.2010 |
| VW | Passat 2.0 TDi 16V 4-Motion | [BKP] | 08.2005-11.2010 |
| VW | Passat 2.0 TDi 4-Motion | [BMP] | 08.2005-05.2009 |
| VW | Polo 1.9 TDi | [ASZ] | 11.2003- |
| VW | Polo 1.9 TDi | [BLT] | 11.2003- |
| VW | Scirocco 2.0 TDi | [CFGC] | 01.2013- |
| VW | Scirocco 2.0 TDi | [CFHB] | 11.2010- |
| VW | Tiguan 2.0 TDi | [CBAA] | 11.2007- |
| VW | Tiguan 2.0 TDi | [CBAB] | 09.2007- |
| VW | Tiguan 2.0 TDi | [CBAB] | 11.2008- |
| VW | Tiguan 2.0 TDi | [CBBB] | 09.2007- |
| VW | Tiguan 2.0 TDi | [CFFA] | 11.2007- |
| VW | Tiguan 2.0 TDi | [CFFB] | 11.2008- |
| VW | Tiguan 2.0 TDi | [CFGB] | 09.2007- |
| VW | Tiguan 2.0 TDi 4-Motion | [CBBA] | 02.2008-08.2009 |
| VW | Tiguan 2.0 TDi 4-Motion | [CFGC] | 11.2012- |
| VW | Touran 2.0 TDi | [AZV] | 02.2003- |
| VW | Touran 2.0 TDi | [BMM] | 12.2005- |
| VW | Touran 2.0 TDi | [BMN] | 12.2005-05.2010 |
| VW | Touran 2.0 TDi | [CFHC] | 05.2010- |
| VW | Touran 2.0 TDi | [CFJA] | 12.2005-05.2010 |
| VW | Touran 2.0 TDi 16V | [BKD] | 08.2003- |
| VW | Transporter 1.9 TDi | [AXC] | 04.2003- |
| VW | Transporter 2.0 BiTDi | [CFCA] | 09.2009- |
| VW | Transporter 2.0 BiTDi 4-Motion | [CFCA] | 09.2009- |
| VW | Transporter 2.0 TDi | [CAAC] | 04.2015- |
| VW | Transporter 2.0 TDi | [CAAC] | 09.2009- |
| VW | Transporter 2.0 TDi | [CAAE] | 05.2010- |
| VW | Transporter 2.0 TDi | [CCHB] | 05.2010- |
| VW | Transporter 2.0 TDi | [CFCA] | 04.2015- |
| VW | Transporter 2.0 TDi 4-Motion | [CAAC] | 06.2015- |
| VW | Transporter 2.0 TDi 4-Motion | [CAAC] | 09.2009- |
| VW | Transporter 2.0 TDi 4-Motion | [CFCA] | 06.2015- |
| VW | Transporter 2.0 TSi | [CJKA] | 05.2011- |
| VW | Transporter 2.0 TSi | [CJKB] | 07.2012- |
| VW | Transporter 3.2 4-Motion | [BDL] | 11.2003-06.2006 |
| VW | Transporter 3.2 4-Motion | [BKK] | 11.2003- |
| VW | Transporter 3.2 4-Motion | [CFLA] | 11.2003- |
| VW | Transporter 3.2 V6 | [BDL] | 04.2003- |
| VW | Transporter 3.2 V6 | [BKK] | 08.2003- |
| VW | Transporter 3.2 V6 | [CFLA] | 08.2003- |
| VW | Transporter 3.2 V6 4-Motion | [BKK] | 11.2003- |
| VW | Transporter 3.2 V6 4-Motion | [CFLA] | 11.2003- |
Reference Information
STR1579 LES0426 5015843 1648215280 300.584.122.500 300.584.122.505 5015163 25-4134 458390 S12VA0851A2 232ST21 02M911024 12232 438226 17972R 2M911024 DRS0174 CGB-54134 726088 PRSE391 EZ0181 STRE391 TT15326PRO 2M911024A S12VA0851 CST15244GS 300.584.122.000 STX200034 201013 438176 011-001-000391R H5015163 TS18ER123 LRS02462 02M911024A 0001123039 SG0669 0001123038 2M911024P 3116937 3116936 TT15326 101323B 2M911024X 8550505777 199052 NEU1323 IR8028 300.584.122.008 02M911024P 3065 220535 TS18NR123 02M911024PX 101323V 300.584.122.010 02M911024X 6015244.1 300.584.122.210 ASM1486 311261122 101323 ANM12394X STX200034R QRS1520 SG0669RB RE83719N 8550506187 NPANSM1486 STR0475 6015183.0 UD03969(SEG)S 02M911024AX 300.584.122.215 20479442OE AEU1323 ST01649 2M911024AX 220450 LRS2462 06-10071-SX VW9102View your shopping basket or Browse other items in Starter Motors.
