Price:
NZ$ 493.37 including GST
NZ$ 429.02 excluding GST
or four payments of $123.34
with
Learn More
each
S1285S
No stock in NZ
No stock in NZ

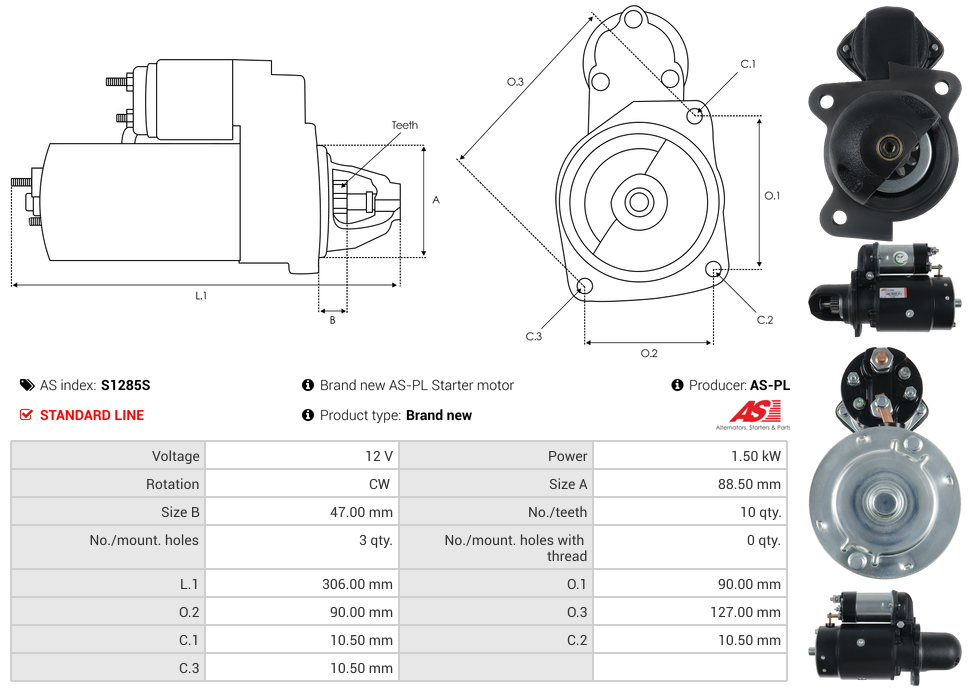

Specifications
| Kilowatt | 1.5 kW |
| Length (L.1) | 306 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 10.5 mm |
| Mount Hole Diameter (C.2) | 10.5 mm |
| Mount Hole Diameter (C.3) | 10.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 47 mm |
| Rotation | CW |
| Spigot Diameter (A) | 88.5 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | V100 | ||
| CATERPILLAR | V120 | ||
| CATERPILLAR | V140 | ||
| HYSTER | C350A | ||
| HYSTER | C530 | ||
| HYSTER | C550A | ||
| HYSTER | H10-150F | ||
| HYSTER | H110-150F | ||
| HYSTER | H160-110E | ||
| HYSTER | H40-60JS | ||
| HYSTER | P40 | ||
| HYSTER | P50A |
Reference Information
695324 10455326 7N8403 7N8402 WOOSTR20037 6F6848 3T8194 10465426 10465449 3004016 10455350 UD102954S 1108447 640.067.103.030 3231196 201-10107 347199 1903105M91 140-10112 1109097 10465412 STR20037 518670M91 655380 772482M91View your shopping basket or Browse other items in Starter Motors.
