Price:
NZ$ 389.37 including GST
NZ$ 338.58 excluding GST
or four payments of $97.34
with
Learn More
each
S3255S
No stock in NZ
No stock in NZ

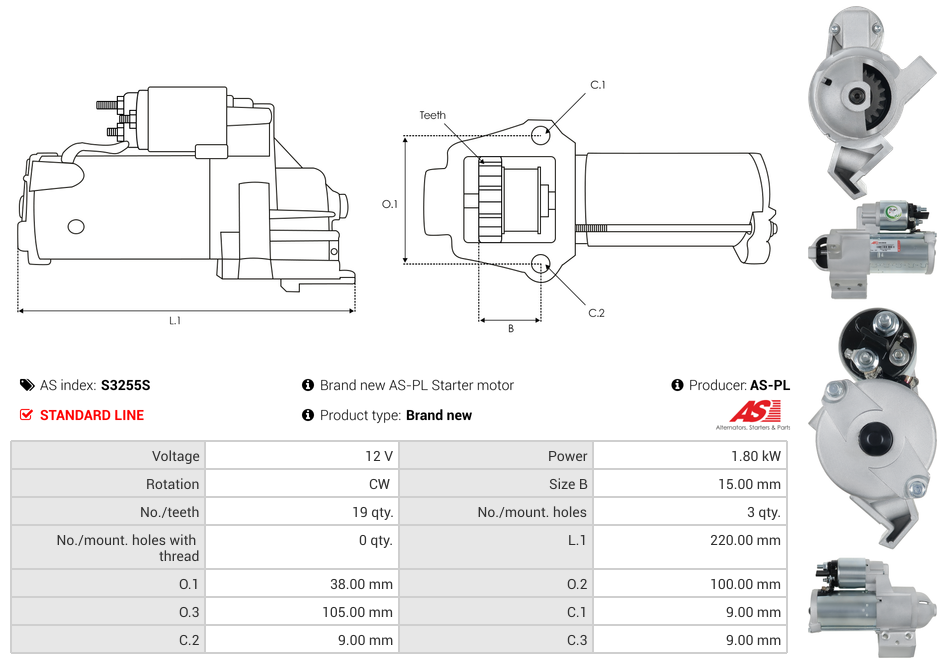

Specifications
| Kilowatt | 1.8 kW |
| Length (L.1) | 220 mm |
| Mount Hole Center - Center (O.1) | 38 mm |
| Mount Hole Center - Center (O.2) | 100 mm |
| Mount Hole Center - Center (O.3) | 105 mm |
| Mount Hole Diameter (C.1) | 9 mm |
| Mount Hole Diameter (C.2) | 9 mm |
| Mount Hole Diameter (C.3) | 9 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 19 qty |
| Pinion at Rest (B) | 15 mm |
| Rotation | CW |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 330 2.0 e | (F30)[B48B20A] | 11.2015-10.2018 |
| BMW | 330 2.0 e | (F80)[B48B20A] | 11.2015-10.2018 |
| BMW | 530 2.0 e Plug-in-Hybrid | (F90)[B46B20B] | 03.2017-06.2020 |
| BMW | 530 2.0 e Plug-in-Hybrid | (F90)[B48B20A] | 03.2017-06.2020 |
| BMW | 530 2.0 e Plug-in-Hybrid | (F90)[B48B20A] | 07.2019-06.2020 |
| BMW | 530 2.0 e Plug-in-Hybrid | (F90)[GC1] | 03.2017-06.2020 |
| BMW | 530 2.0 e Plug-in-Hybrid | (F90)[GC1] | 07.2019-06.2020 |
| BMW | 530 2.0 e Plug-in-Hybrid | (G30)[B46B20B] | 03.2017-06.2020 |
| BMW | 530 2.0 e Plug-in-Hybrid | (G30)[B48B20A] | 03.2017-06.2020 |
| BMW | 530 2.0 e Plug-in-Hybrid | (G30)[B48B20A] | 07.2019-06.2020 |
| BMW | 530 2.0 e Plug-in-Hybrid | (G30)[GC1] | 03.2017-06.2020 |
| BMW | 530 2.0 e Plug-in-Hybrid | (G30)[GC1] | 07.2019-06.2020 |
| BMW | 530 2.0 e Plug-in-Hybrid xDrive | (F90)[B46B20B] | 03.2017-06.2023 |
| BMW | 530 2.0 e Plug-in-Hybrid xDrive | (F90)[B48B20A] | 03.2017-06.2023 |
| BMW | 530 2.0 e Plug-in-Hybrid xDrive | (F90)[B48B20A] | 07.2019-06.2023 |
| BMW | 530 2.0 e Plug-in-Hybrid xDrive | (F90)[GC1] | 03.2017-06.2023 |
| BMW | 530 2.0 e Plug-in-Hybrid xDrive | (F90)[GC1] | 07.2019-06.2023 |
| BMW | 530 2.0 e Plug-in-Hybrid xDrive | (G30)[B46B20B] | 03.2017-06.2023 |
| BMW | 530 2.0 e Plug-in-Hybrid xDrive | (G30)[B48B20A] | 03.2017-06.2023 |
| BMW | 530 2.0 e Plug-in-Hybrid xDrive | (G30)[B48B20A] | 07.2019-06.2023 |
| BMW | 530 2.0 e Plug-in-Hybrid xDrive | (G30)[GC1] | 03.2017-06.2023 |
| BMW | 530 2.0 e Plug-in-Hybrid xDrive | (G30)[GC1] | 07.2019-06.2023 |
| BMW | 740 2.0 e | (G11)[B48B20B] | 07.2016-02.2019 |
| BMW | 740 2.0 e | (G12)[B48B20B] | 07.2016-02.2019 |
| BMW | 740 2.0 Le | (G11)[B48B20B] | 07.2016-02.2019 |
| BMW | 740 2.0 Le | (G12)[B48B20B] | 07.2016-02.2019 |
| BMW | 740 2.0 Le xDrive | (G11)[B48B20B] | 07.2016-02.2019 |
| BMW | 740 2.0 Le xDrive | (G12)[B48B20B] | 07.2016-02.2019 |
Reference Information
ST02847 521ST21 315080192 9821 25-5390 91-20-3612 S12VA0867 221118A 6015328.1 210.577.193.501 210.577.193.346 210.577.193.500 ANM100179 210.577.193.000 438326 30980N UD102576S 109369 8643642 WG2471057 8643641 LRS4228 20479823OE MAV173280 256447V 30980-OS 12418643642 12418643641 210.577.193.505 CST15328GS 10015328OV LRS04228 STR00347 S106127 STV1767 BM9053 12521 RSM18 458761View your shopping basket or Browse other items in Starter Motors.
