Price:
NZ$ 580.69 including GST
NZ$ 504.95 excluding GST
or four payments of $145.17
with
Learn More
each
S6629S
No stock in NZ
No stock in NZ

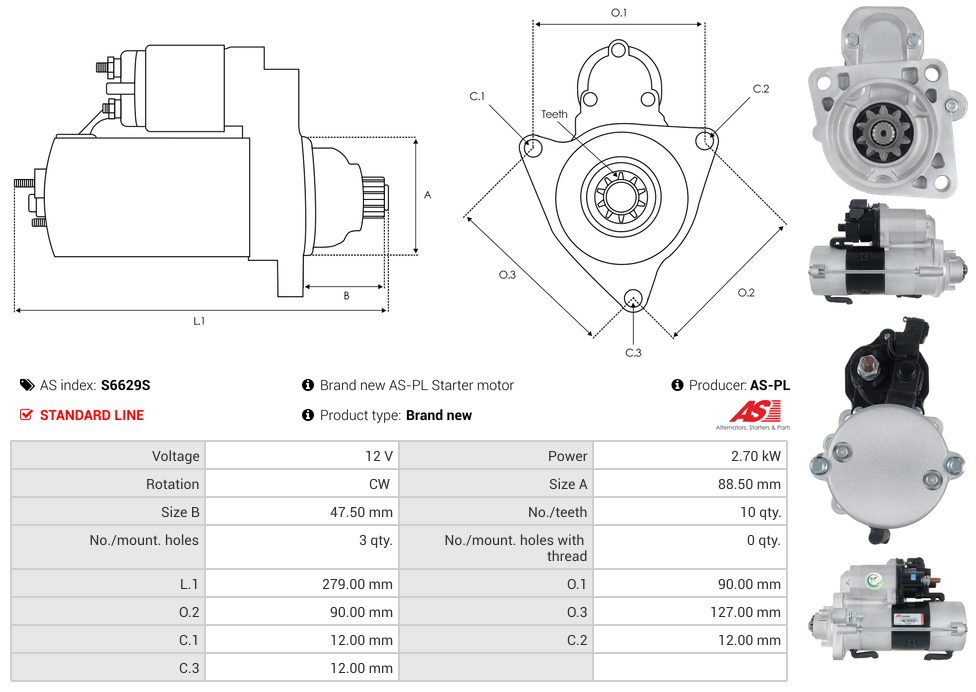

Specifications
| Kilowatt | 2.7 kW |
| Length (L.1) | 279 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 12 mm |
| Mount Hole Diameter (C.2) | 12 mm |
| Mount Hole Diameter (C.3) | 12 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 47.5 mm |
| Rotation | CW |
| Spigot Diameter (A) | 88.5 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | Various Models |
Reference Information
3123662 428080-7370 428000-7370 STN1637 10040495OV 190-90121NOE 20432594OE MAV424950 DENDSN2097 CST40495GS WG2072110 255916D 6040495.1 SDN495 DSN2097 630.540.103.050 UD102970S 107727 190-90121View your shopping basket or Browse other items in Starter Motors.
