Price:
NZ$ 604.03 including GST
NZ$ 525.24 excluding GST
or four payments of $151.01
with
Learn More
each
S6646S
No stock in NZ
No stock in NZ

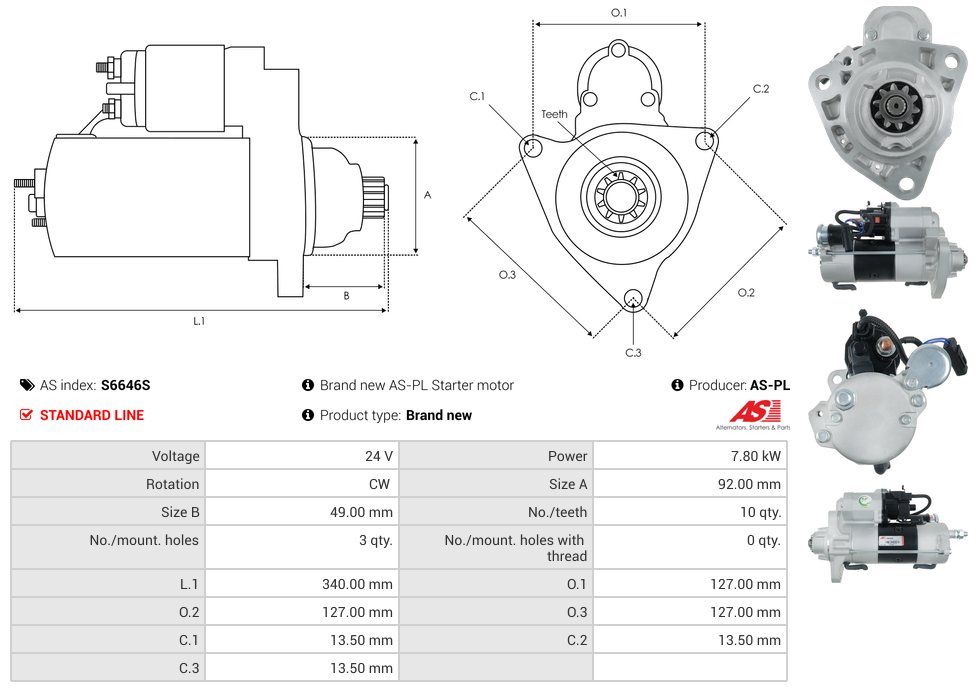

Specifications
| Kilowatt | 7.8 kW |
| Length (L.1) | 340 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| Mount Hole Diameter (C.3) | 13.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 49 mm |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | 2570C | ||
| CATERPILLAR | 2570D | ||
| CATERPILLAR | 2670C | ||
| CATERPILLAR | 2670D | ||
| CATERPILLAR | 527 | ||
| CATERPILLAR | 563C | ||
| CATERPILLAR | 563D | ||
| CATERPILLAR | 573C | ||
| CATERPILLAR | 573D | ||
| CATERPILLAR | 953 | ||
| CATERPILLAR | 953D | ||
| CATERPILLAR | 953K | ||
| CATERPILLAR | 963 | ||
| CATERPILLAR | 963D | ||
| CATERPILLAR | 963K | ||
| CATERPILLAR | D5 | ||
| CATERPILLAR | D5R | ||
| CATERPILLAR | D5R2 | ||
| CATERPILLAR | D6K | ||
| CATERPILLAR | D6N | ||
| CATERPILLAR | LGP | ||
| CATERPILLAR | XL | ||
| PRENTICE | XL |
Reference Information
190-90139 438000-0101 CA3879639 20R4878 STN3165 UD102980S 190-90139N 641.579.103.050 TT16859 3879639 438000-0100View your shopping basket or Browse other items in Starter Motors.
