Price:
NZ$ 636.36 including GST
NZ$ 553.36 excluding GST
or four payments of $159.09
with
Learn More
each
S6649S
No stock in NZ
No stock in NZ

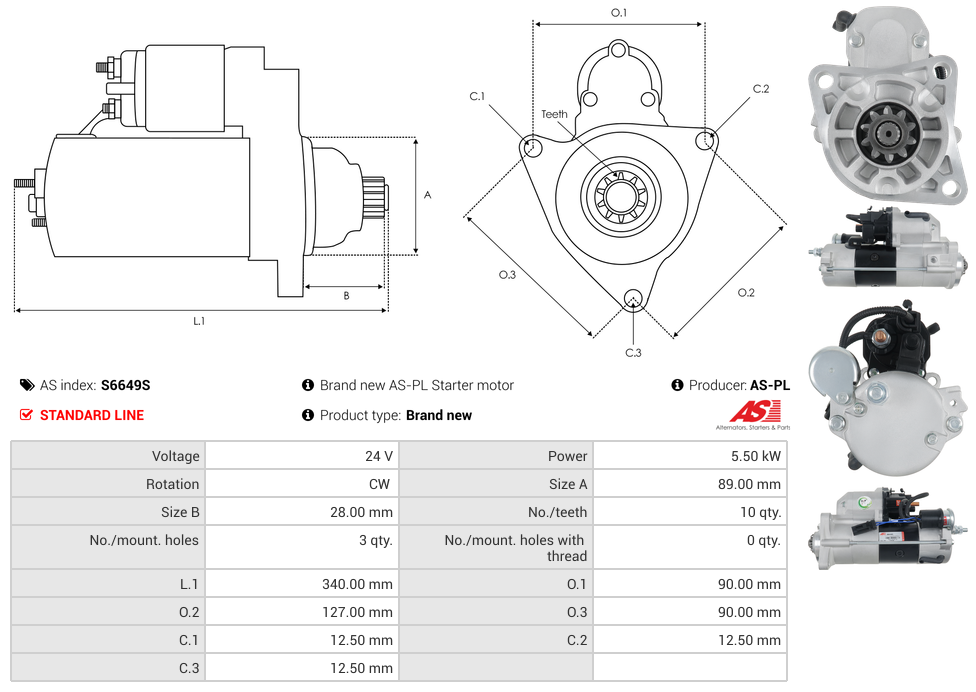

Specifications
| Kilowatt | 5.5 kW |
| Length (L.1) | 340 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 12.5 mm |
| Mount Hole Diameter (C.2) | 12.5 mm |
| Mount Hole Diameter (C.3) | 12.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 28 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CATERPILLAR | Engine 7.0 | [C7.1] |
Reference Information
4823187 STN2695 190-90147 10040666AV 641.570.102.050 UD102982S CGB-20770 31176N 190-90147N 438000-3770View your shopping basket or Browse other items in Starter Motors.
