Price:
NZ$ 731.77 including GST
NZ$ 636.32 excluding GST
or four payments of $182.94
with
Learn More
each
S9409S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

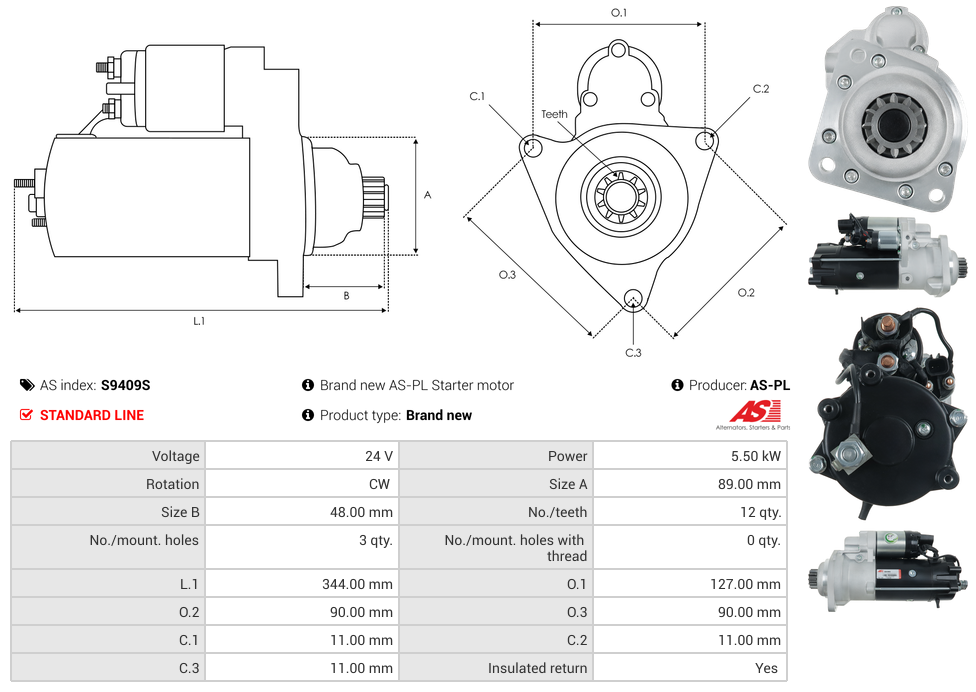

Specifications
| Insulated Earth | Yes |
| Kilowatt | 5.5 kW |
| Length (L.1) | 344 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| Pinion at Rest (B) | 48 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BOMAG | BC 772 EB-2 11.9 | [TCD2015] | |
| BOMAG | MPH 122-2 11.9 | [TCD2015] | |
| BOMAG | MPH 125 15.9 | [TCD2015] | |
| BOMAG | MPH 600 15.9 | [TCD16] | |
| BOMAG | MPH 600 15.9 | [TCD2015] | |
| DEUTZ | 7545RTS 11.9 | [TCD2015] | |
| DEUTZ | Engine 11.9 | [TCD120V6] | |
| DEUTZ | Engine 11.9 | [TCD2015V06] | |
| DEUTZ | Engine 11.9 | [TCD2015V08] | |
| DEUTZ | Engine 15.9 | [BF8M1015] | |
| DEUTZ | Engine 15.9 | [BFM1015M] | |
| MATROT | M41H 11.9 | [BF6M1015] | |
| MATROT | M41H 11.9 | [TCD2015] | |
| PRINOTH | RT 400 11.9 | [TCD2015] | |
| SENNEBOGEN | 870 M 11.9 | [TCD2015] | |
| SENNEBOGEN | 870 R 11.9 | [TCD2015] | |
| WIRTGEN | RX 4500 11.9 | [TCD2015] | |
| WIRTGEN | SF 2600i | [TCD12] |
Reference Information
255159M 8950 MS63 10021610OV CST21610GS 107293 IS1211 MAHMS63 511.506.123.090 255159 11.131.871 TS-6290 UD102998S 273-42206 WG2045315 511.506.123.311 STR7867 72735691 11.131.609 AZF4657 MAV236100 182-30174 S104375 03050437 S104374 AZF4698 STI9846 01183035 6021610.1 SIS610 20419016OE STRS408 182-30174NOEView your shopping basket or Browse other items in Starter Motors.
