Price:
NZ$ 174.08 including GST
NZ$ 151.37 excluding GST
or four payments of $43.52
with
Learn More
each
S9798S
No stock in NZ
No stock in NZ

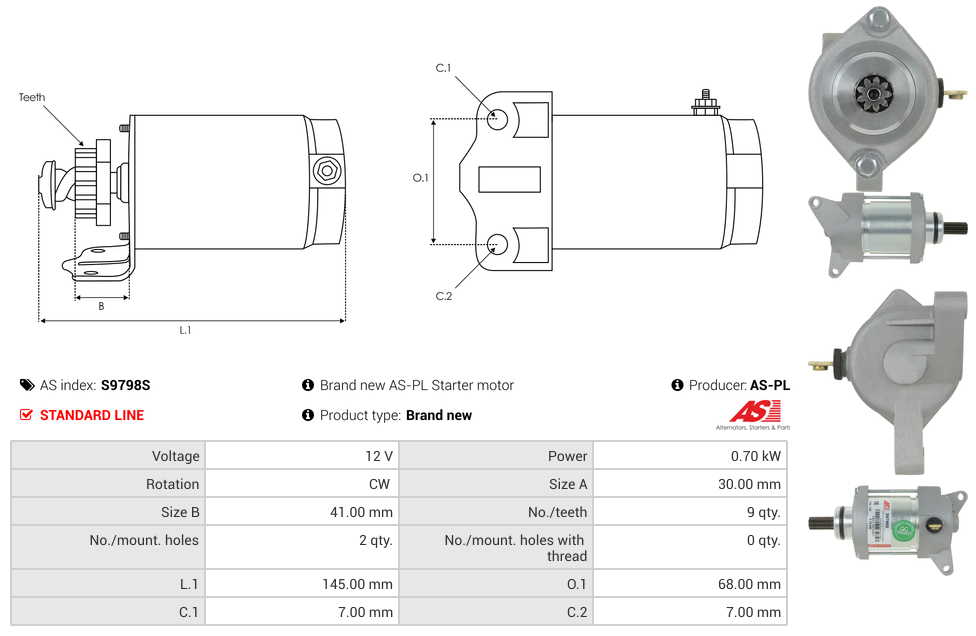

Specifications
| Kilowatt | 0.7 kW |
| Length (L.1) | 145 mm |
| Mount Hole Center - Center (O.1) | 68 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 41 mm |
| Rotation | CW |
| Spigot Diameter (A) | 30 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| YAMAHA | WR 450 F | 01.2003-01.2009 |
Reference Information
CST33164AS 970.022.092.200 WOOSTR75462 191-248A ST-18844 5TJ81890-00-00 242-05106 191-248 20467461BN 6033164.0 18844N 5TJ81890-20-00 S102382 255763 UD19017S STR75462 191-248B 5TJ81890-10-00 18844 439147 10033164AVView your shopping basket or Browse other items in Starter Motors.
