Price:
NZ$ 67.69 including GST
NZ$ 58.86 excluding GST
or four payments of $16.92
with
Learn More
each
S9817S
No stock in NZ
No stock in NZ

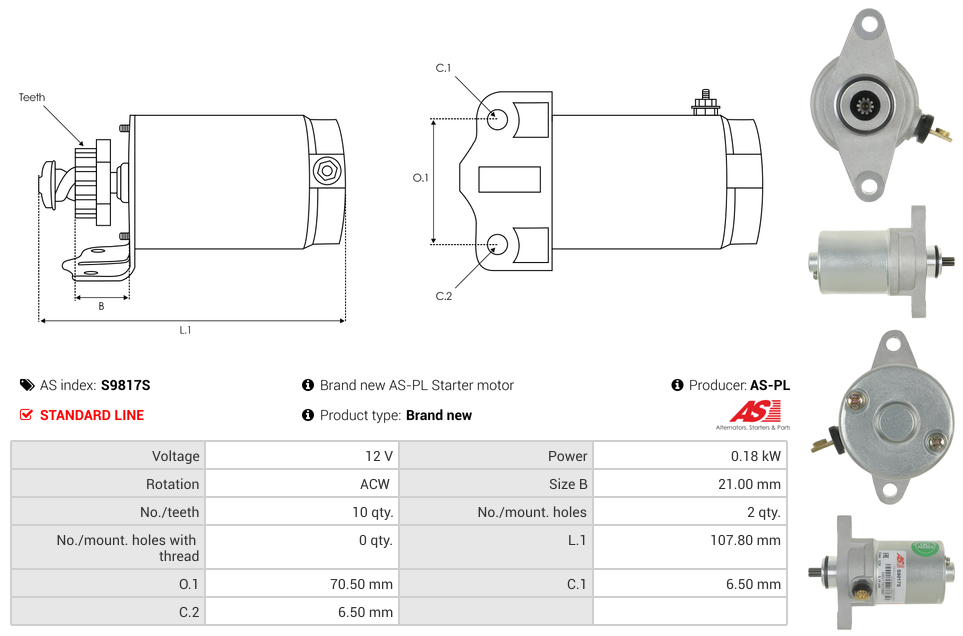

Specifications
| Kilowatt | 0.18 kW |
| Length (L.1) | 107.8 mm |
| Mount Hole Center - Center (O.1) | 70.5 mm |
| Mount Hole Diameter (C.1) | 6.5 mm |
| Mount Hole Diameter (C.2) | 6.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 21 mm |
| Rotation | ACW |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHINESE ATV & SCOOTERS PMDD | Various Models |
Reference Information
19587 410-58027 P825N 22-19587 UD19005S SCH0018 19587N 91-38-2615 199-087View your shopping basket or Browse other items in Starter Motors.
