Price:
NZ$ 569.08 including GST
NZ$ 494.85 excluding GST
or four payments of $142.27
with
Learn More
each
S9892S
No stock in NZ
No stock in NZ

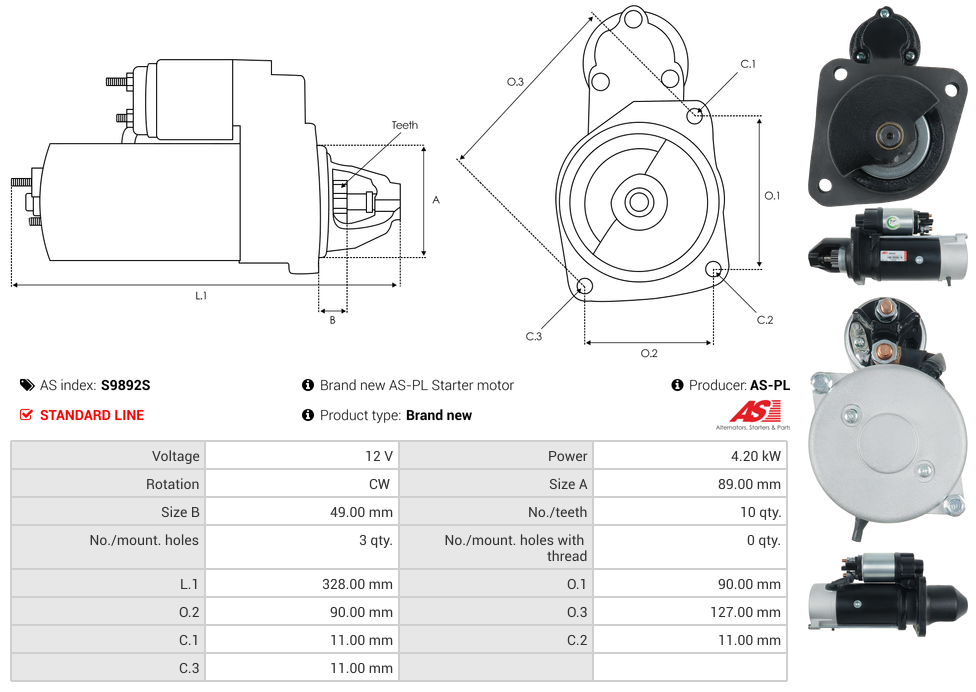

Specifications
| Kilowatt | 4.2 kW |
| Length (L.1) | 328 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 49 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE | 600 | ||
| CASE | CS 6090 | ||
| CASE | CS 660 8.3 | [TAA] | 05.2004- |
| JOHN DEERE | 6700 S | 01.1997- | |
| NEW HOLLAND | CS 660 | ||
| NEW HOLLAND | TC 5090 8.3 | [TAA234HP] | 09.2007- |
Reference Information
11.131.370 20419252BN 84994459 CST21252AS STR79163 MAHMS246 WG2045005 MS246 72735874 6021252.0 IS1120 AZF4595 33413N 540.522.103.311 STI7120 UD102997SView your shopping basket or Browse other items in Starter Motors.
