Price:
NZ$ 545.86 including GST
NZ$ 474.66 excluding GST
or four payments of $136.47
with
Learn More
each

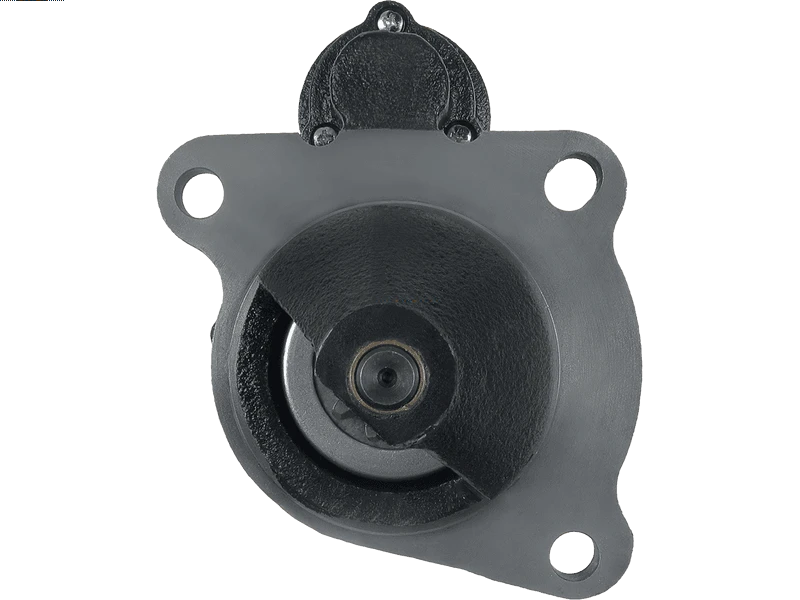

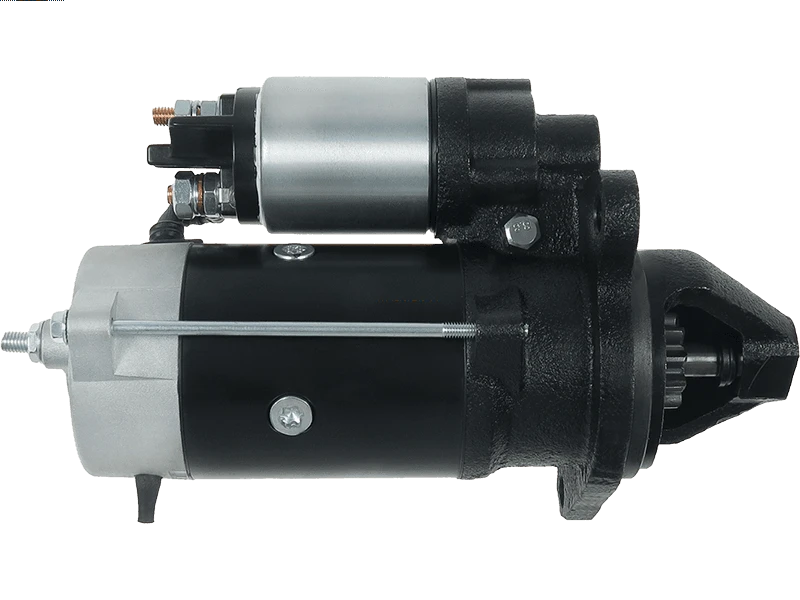

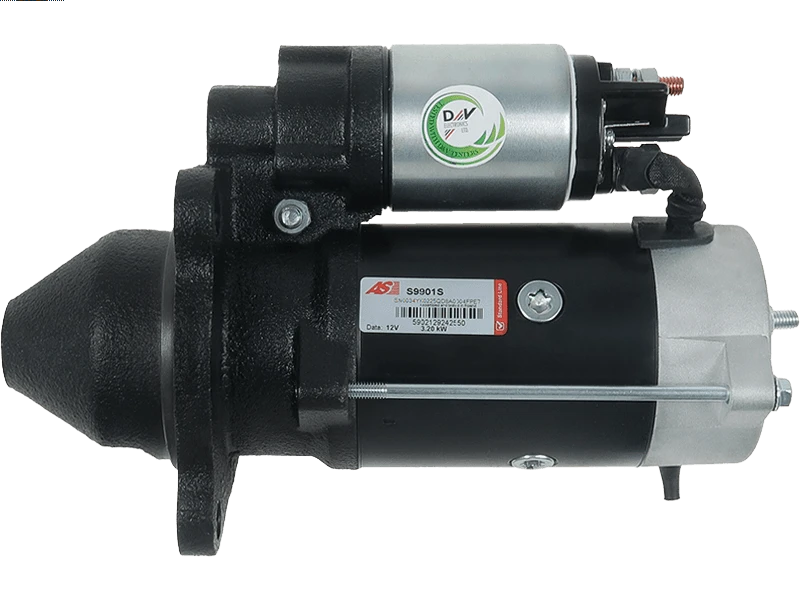

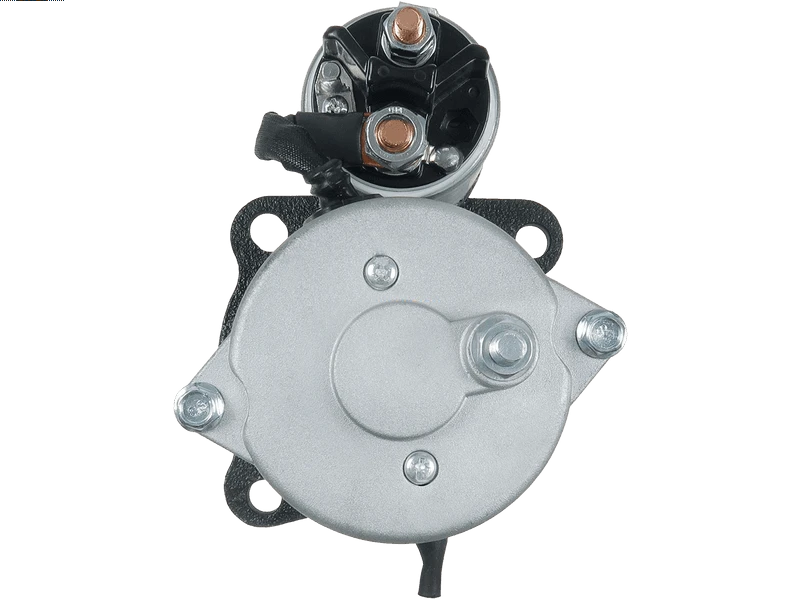

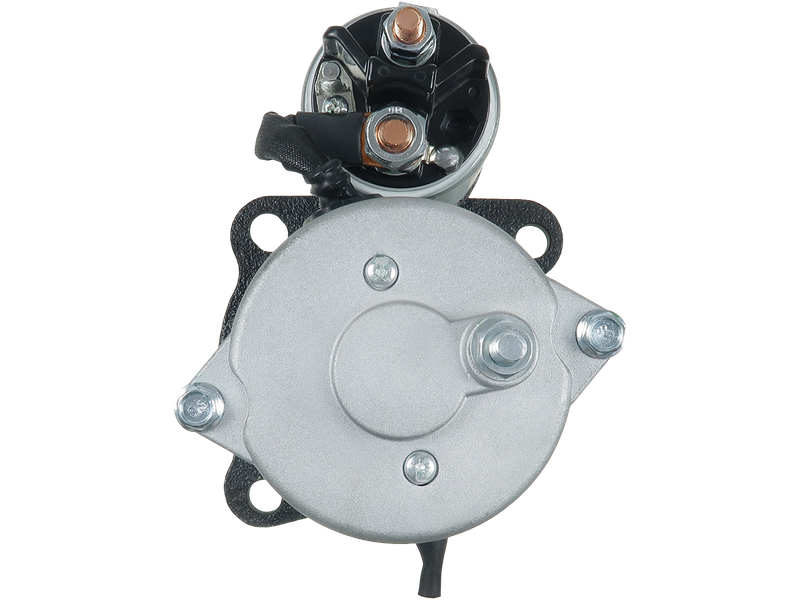

S9901S
No stock in NZ
No stock in NZ
Specifications
| Kilowatt | 3.2 kW |
| Length (L.1) | 229 mm |
| Mount Hole Center - Center (O.1) | 104 mm |
| Mount Hole Center - Center (O.2) | 104 mm |
| Mount Hole Center - Center (O.3) | 147 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| Mount Hole Diameter (C.3) | 13.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 28 mm |
| Rotation | CW |
| Spigot Diameter (A) | 91.5 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE | CS 48 | 02.1997-01.2001 | |
| CASE | CS 52 | 02.1997-03.2004 | |
| CASE | CS 58 | 01.2001-03.2004 | |
| CASE | CS 63 | 01.2001-03.2004 | |
| IMT | 542 2.5 | [M33T] | |
| IMT | 546 2.5 | [DM33/T] | |
| IMT | 549 2.5 | [DM33/T] | |
| IMT | 565 3.3 | [DM34T] | |
| MASSEY FERGUSON | MF 133 | 01.1969- | |
| MASSEY FERGUSON | MF 135 V | [AD3.152] | 01.1969- |
| MASSEY FERGUSON | MF 140 | 01.1969- | |
| MASSEY FERGUSON | MF 145 S | 01.1969- | |
| MASSEY FERGUSON | MF 145 V | 01.1983-01.1984 | |
| MASSEY FERGUSON | MF 152 | 01.1980-01.1983 | |
| MASSEY FERGUSON | MF 152 S | 01.1983-01.1986 | |
| MASSEY FERGUSON | MF 152 V | 01.1987-01.1989 | |
| MASSEY FERGUSON | MF 155 | [AD4.203] | 01.1969- |
| MASSEY FERGUSON | MF 158 | [AD4.203] | 01.1969- |
| MASSEY FERGUSON | MF 165 | [AD4.203] | 01.1969-01.1976 |
| MASSEY FERGUSON | MF 230 | [AD3.152] | 01.1983- |
| MASSEY FERGUSON | MF 235 | 01.1977- | |
| MASSEY FERGUSON | MF 240 | [AD3.152] | 01.1979-12.1988 |
| MASSEY FERGUSON | MF 245 2.5 | 01.1979-12.1988 | |
| MASSEY FERGUSON | MF 250 | [AD3.152] | 01.1983-01.1986 |
| MASSEY FERGUSON | MF 255 | [AD3.152] | 01.1977-12.1988 |
| MASSEY FERGUSON | MF 260 | 01.1975- | |
| MASSEY FERGUSON | MF 350 | [AD3.152] | 01.1987- |
| MASSEY FERGUSON | MF 355 | [AT3.152] | 01.1987- |
| MASSEY FERGUSON | MF 360 | [AT3.152] | 01.1987- |
| MASSEY FERGUSON | MF 535 | [A6.354.4] | 01.1977- |
| MASSEY FERGUSON | MF 550 | [AD3.152] | 01.1976-01.1982 |
| MASSEY FERGUSON | MF 560 | [AT6.354.4] | 01.1980-01.1982 |
| URSUS | 2802 2.5 | [AD3.152VR] | |
| URSUS | 3502 2.5 | [AD3.152VR] | |
| URSUS | 3822 |
Reference Information
UD102988S 1808449R2 AZE4249 WG2044964 1691805R2 968296M1 11.132.167 3597371R2 S104136 650.003.103.312 MS206 IS1395 968856M1 20419481OE 168065M3 MAV231840 1868283M5 10021184OV 1893705T CST21184GS SIS184 6021184.1View your shopping basket or Browse other items in Starter Motors.
