Price:
NZ$ 37.19 including GST
NZ$ 32.34 excluding GST
or four payments of $9.30
with
Learn More
each
SD3211S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

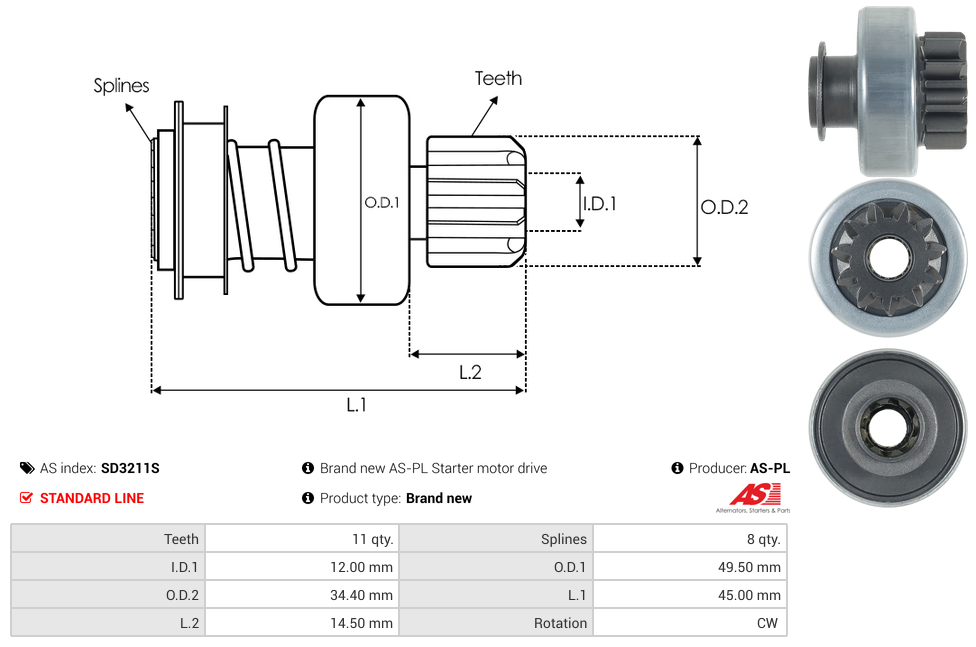

Specifications
| Inside Diameter (I.D.1) | 12 mm |
| Length (L.1) | 45 mm |
| Length (L.2) | 14.5 mm |
| No./Splines | 8 qty |
| No./Teeth | 11 qty |
| Outside Diameter (O.D.1) | 49.5 mm |
| Outside Diameter (O.D.2) | 34.4 mm |
| Rotation | CW |
Reference Information
UD55156SDVideo/Publications
S3177S ESW10E40View your shopping basket or Browse other items in Drives, Pinions and Clutches.
