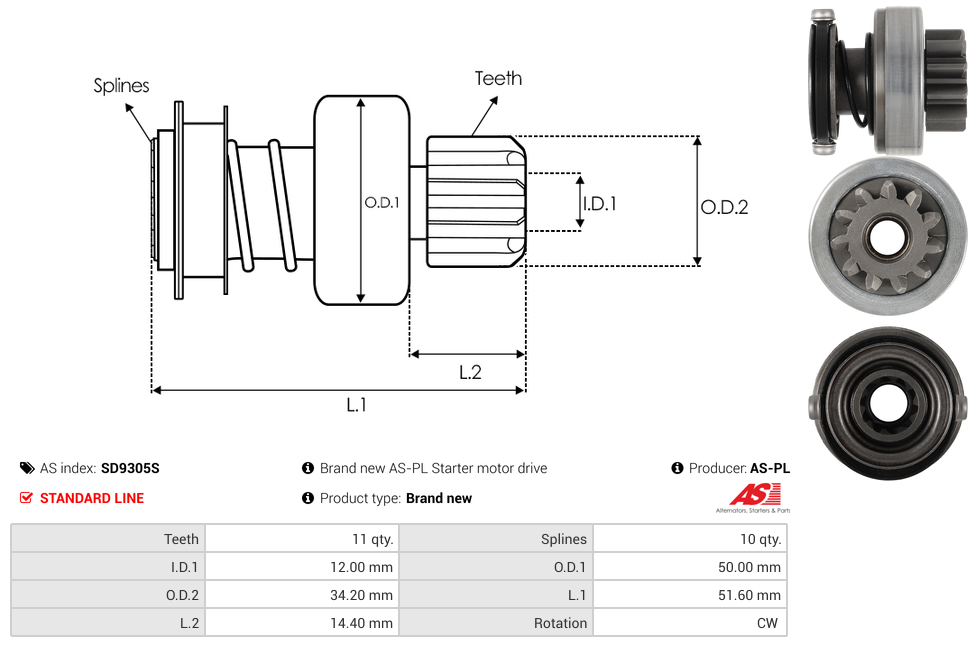

Specifications
| Inside Diameter (I.D.1) | 12 mm |
| Length (L.1) | 51.6 mm |
| Length (L.2) | 14.4 mm |
| No./Splines | 10 qty |
| No./Teeth | 11 qty |
| Outside Diameter (O.D.1) | 50 mm |
| Outside Diameter (O.D.2) | 34.2 mm |
| Rotation | CW |
Reference Information
